SPECIFICATIONS

Brand Name: ASLLED

Origin: Mainland China

Tube Chip Color: Full Color

Model Number: P3.91

is_customized: Yes

Usage: outdoor

Display Function: Video, pictures, text...

Pixels: 3.91mm

Cabinet material: Die-casting Aluminum Cabinet

Cabinet Size: 500X1000mm

Cabinet Resolution: 128X256 pixels

Cabinet Weight: 12.5KG

Power Input: AC110V/ 220V , 50HZ/60HZ

Ave Power Consumption: 300W/sqm

Brightness: 3000-6500 cd/sqm(adjustable)

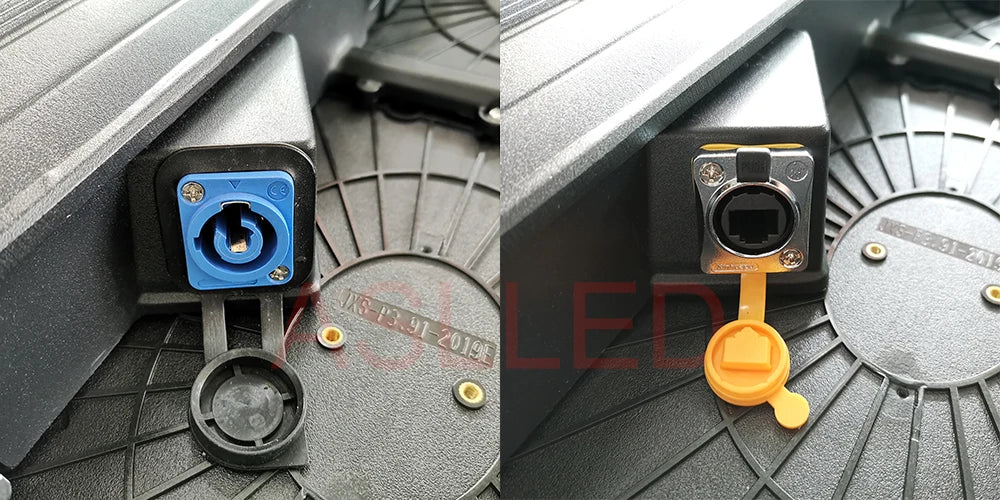

Interface: Aviation plug

IP grade: IP65/waterproof

Life Span: 100,000 Hours

Warranty: 3 Years

Certification: CE/FCC/RoHS

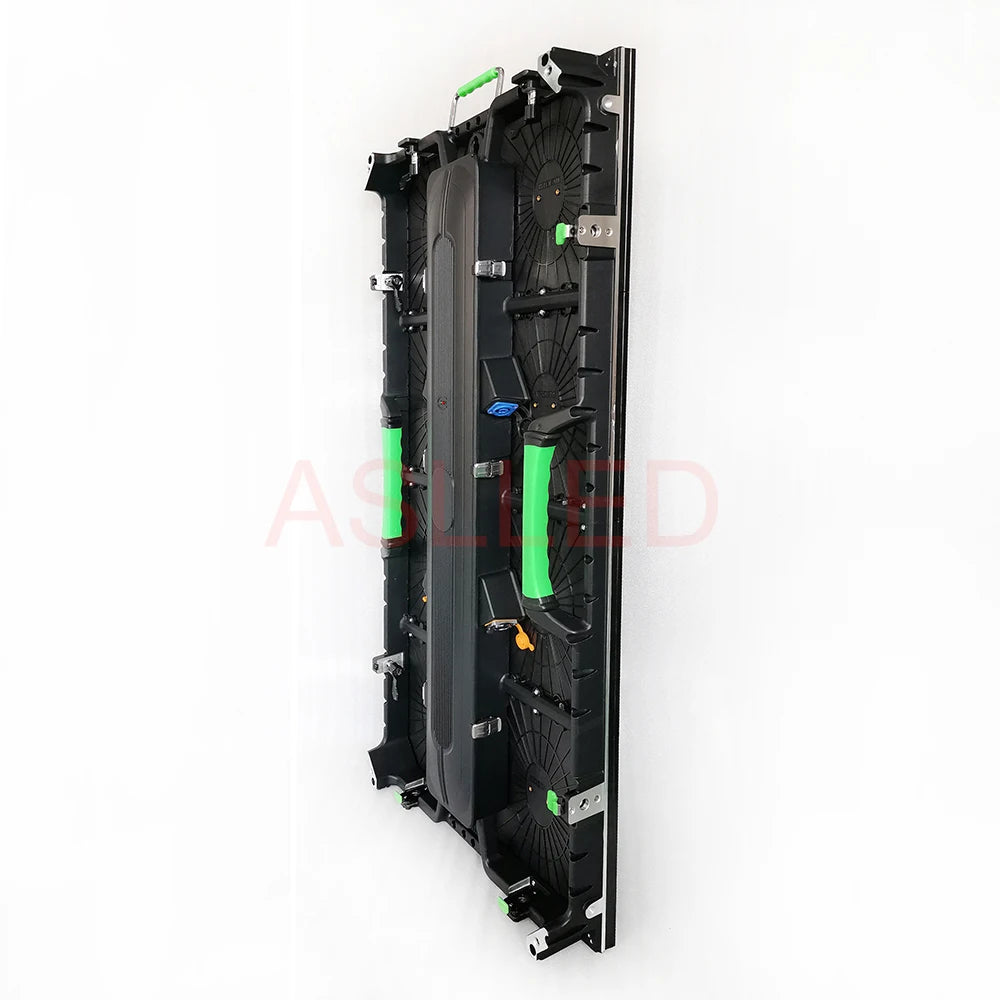

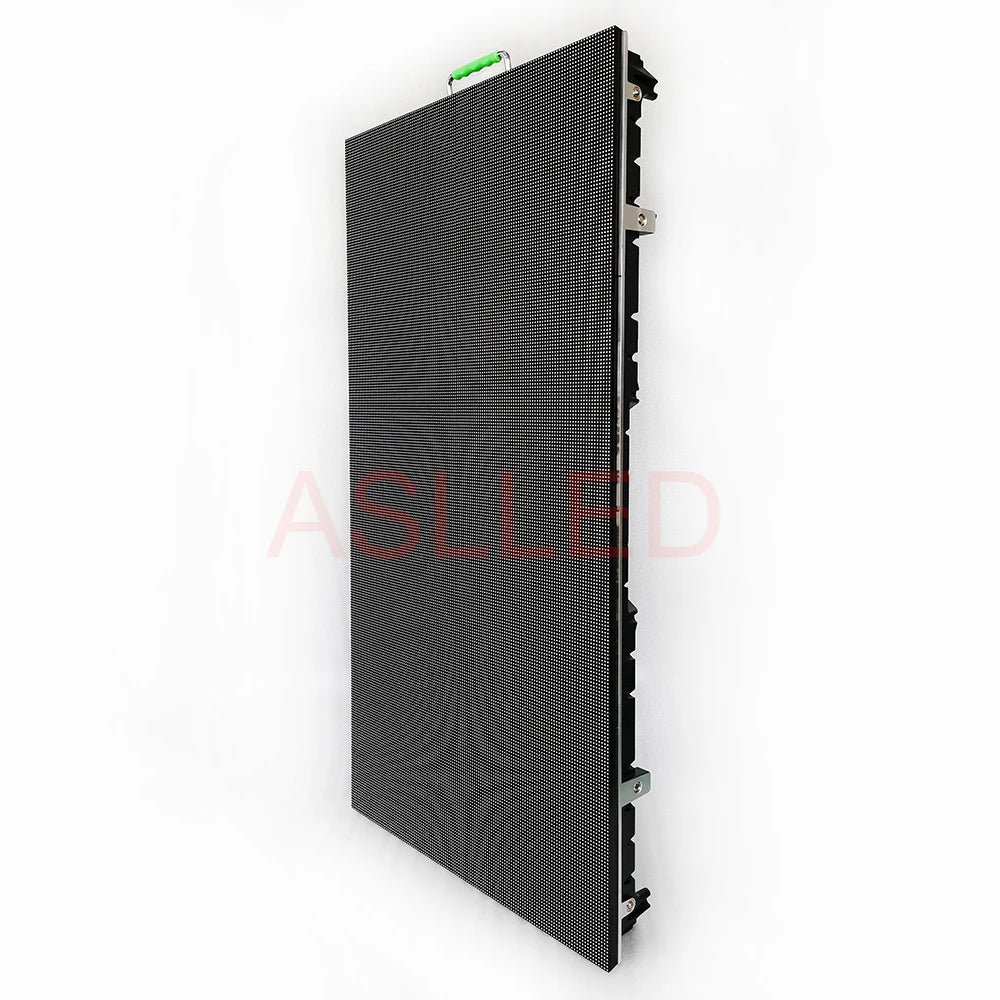

P3.91 Outdoor LED Display panel

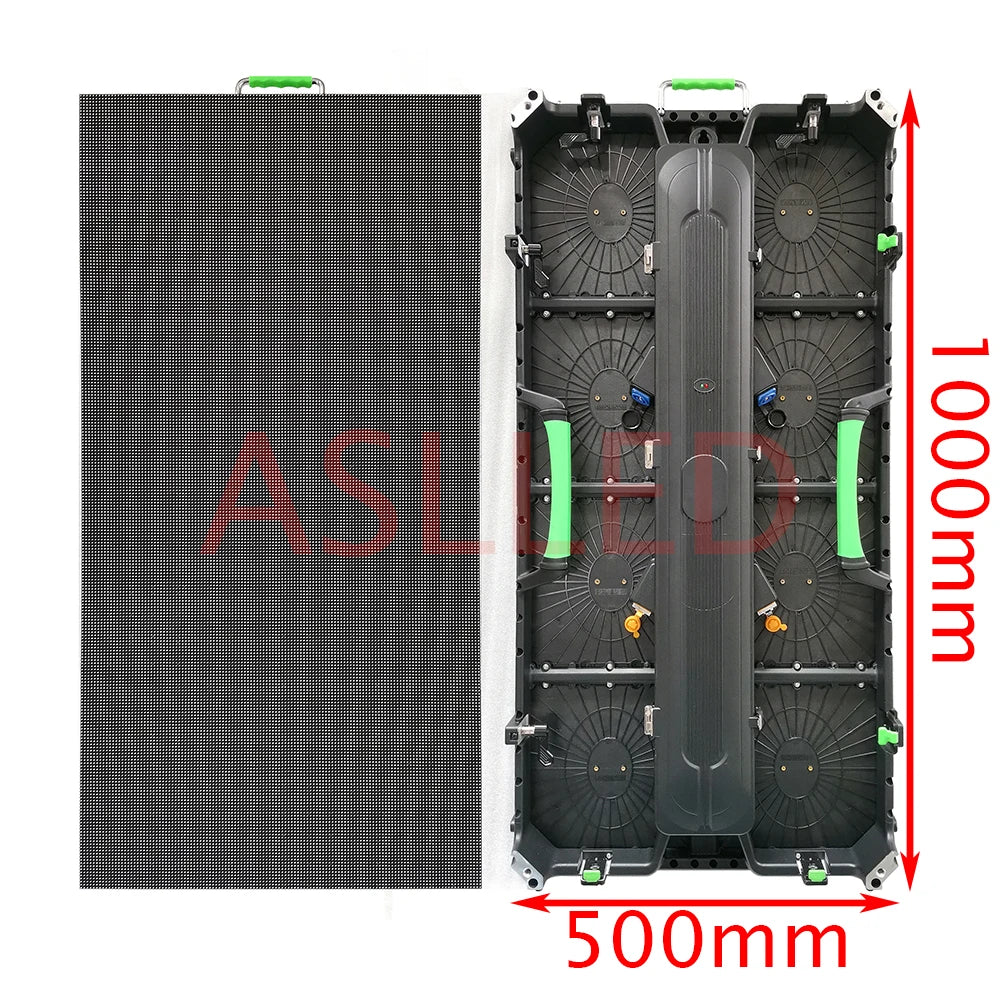

500x1000mm die cast aluminum cabinet

Product parameter:

1. Module Size: 250mmX250mm.

2. Module Pixel Pitch: 3.91mm.

3. Module Resolution: 64dotsX64dots.

4. Pixel Density: 65536dots/sqm.

5. Color Configuration: 1R1G1B 3 in 1.

6. LED Package: SMD1921.

7. Drive Mode: 1/16Scan Constant Current.

8. Cabinet Size: 500mmX1000mm.

9. Cabinet Resolution: 128X256 pixels.

10. Cabinet Material: Die casting aluminum.

11. Cabinet Weight: 12.5KG.

12. Refresh Rate: 1920HZ(adjustable).

13. Frame Rate: 120frame/sec.

14. Grey Scale: 16.7M colors.

15. Interface: Aviation plug.

16. Brightness: 3000-6500 cd/sqm(adjustable).

17. Viewing Angle: H: 160°; V:160°.

18. Color Temperature: 256 level(adjustable).

19. Power Input: AC110V/ 220V, 50HZ/60HZ.

20. Average Power Consumption: 300W/sqm.

21. Storage Temperature: -30~+70 degree.

22. Working Temperature: -20~+50 degree.

23. IP grade: IP65(waterproof).

24. Operating Humidity: 10%~95%.

25. Blind Spot Rate: <1/10000.

26. Life Span: >100,000 Hours.

27. Warranty: 3 Years.

28. Certificate: CE, FCC, RoHS.

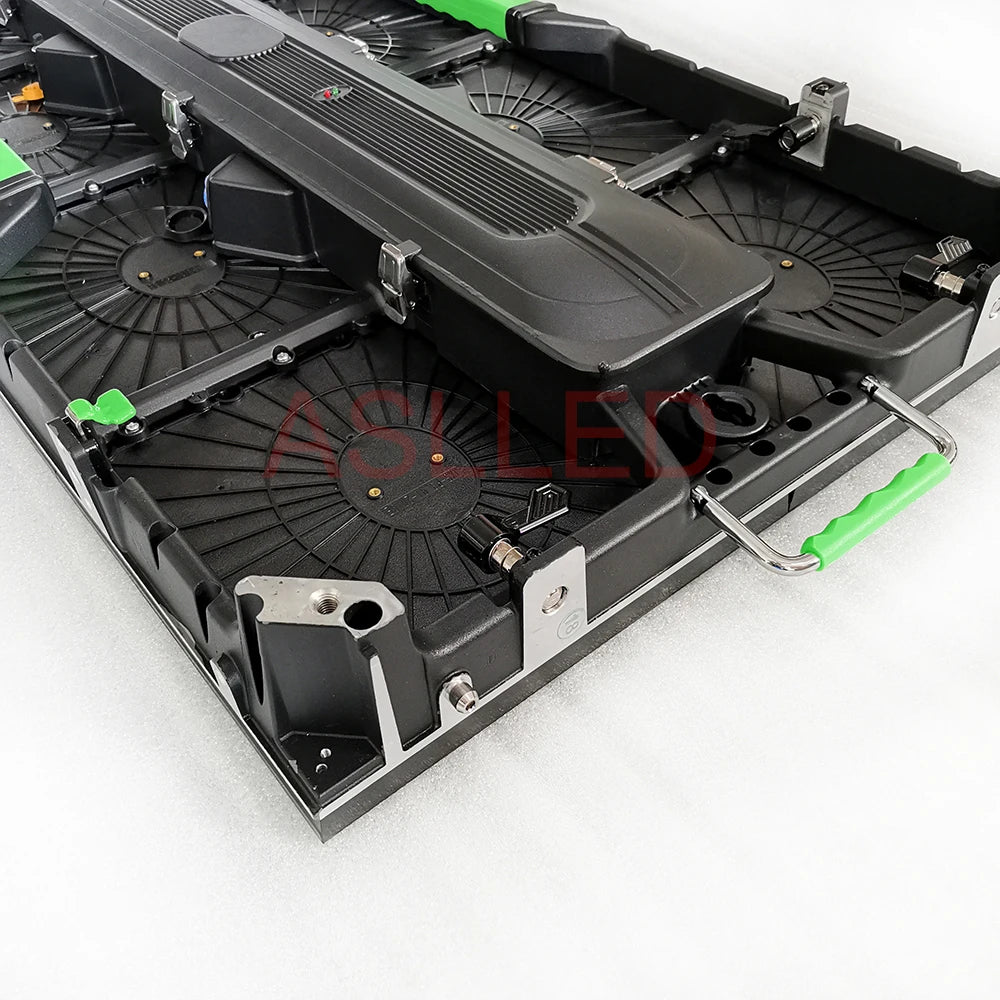

Product Features:

The product adopts high-strength structural die-cast aluminum,

light structure, good heat dissipation, energy saving and power saving,

convenient installation, uniform gray scale, and high refresh rate,

the module can be magnetically fixed for front maintenance.

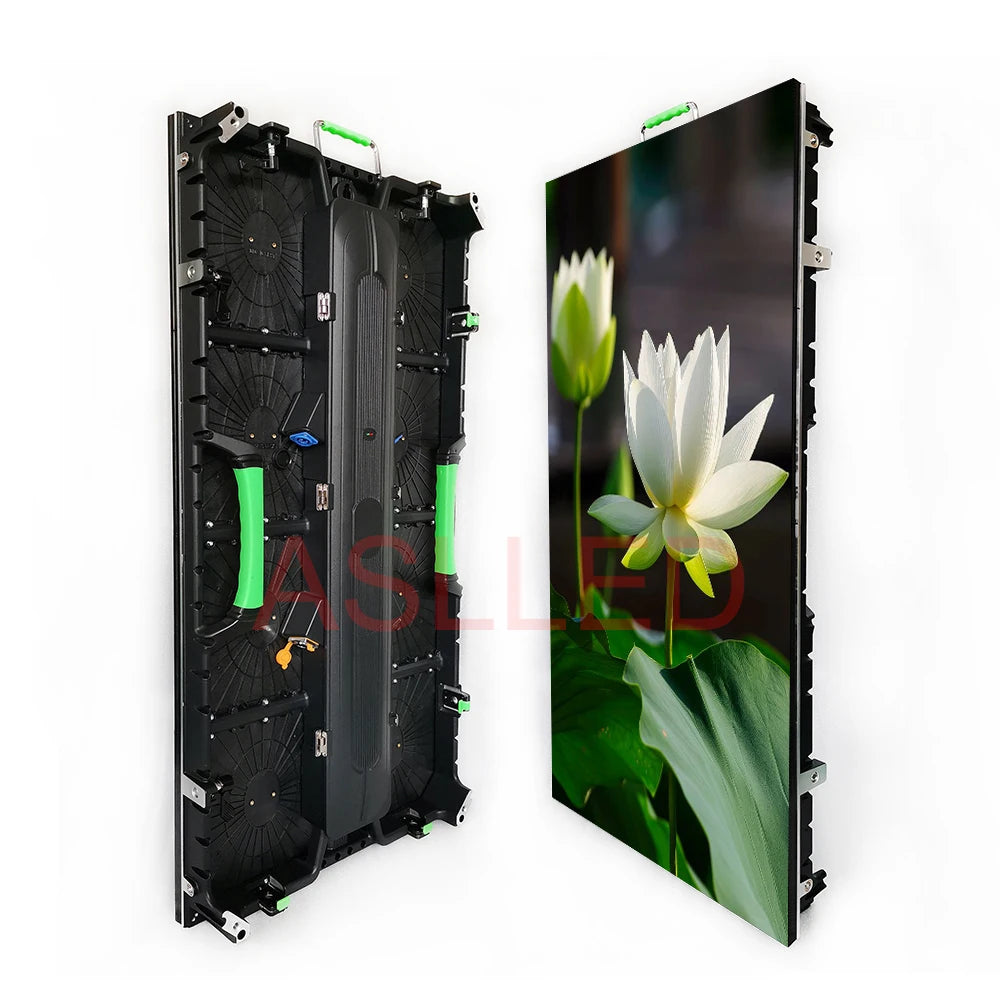

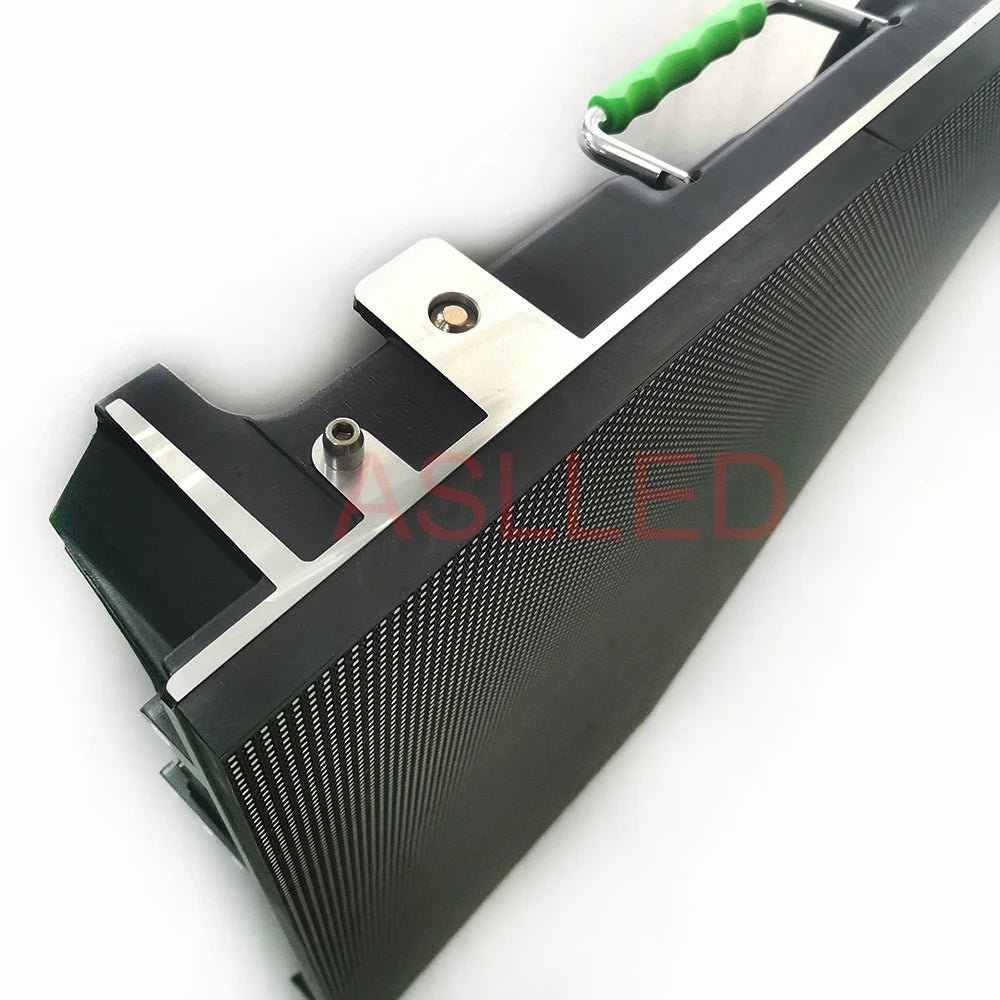

Product display:

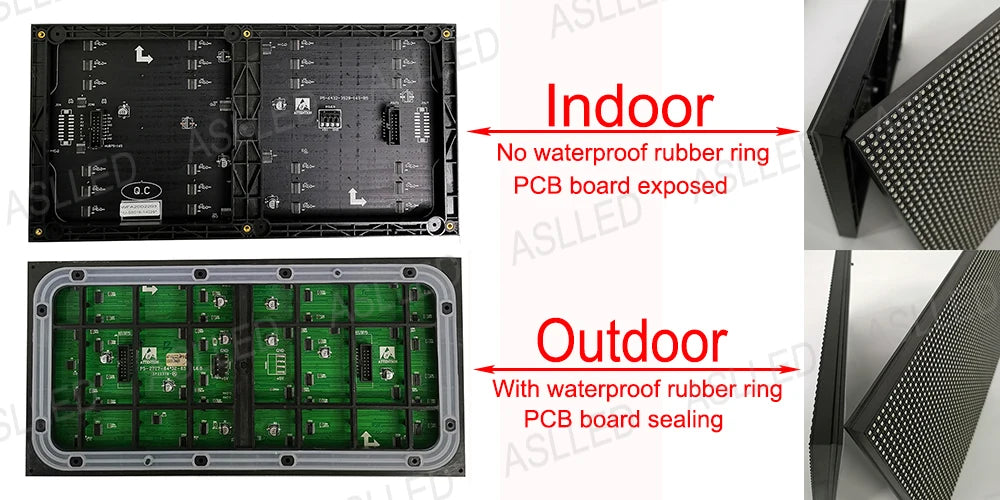

LED display distinguish between indoor and outdoor

Outdoor LED display:With waterproof rubber ring,PCB board sealing,waterproof,High brightness.

Indoor LED display:No waterproof rubber ring,PCB board exposed,Not waterproof,cheap price.

if you need indoor LED display, please click the picture below to buy, or contact us.

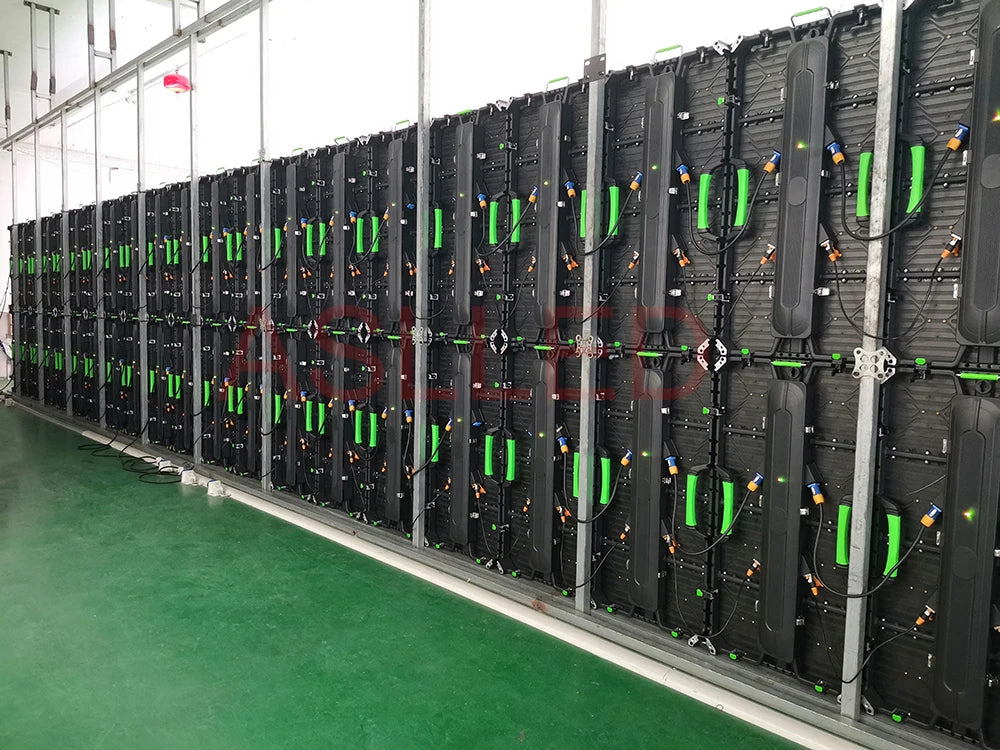

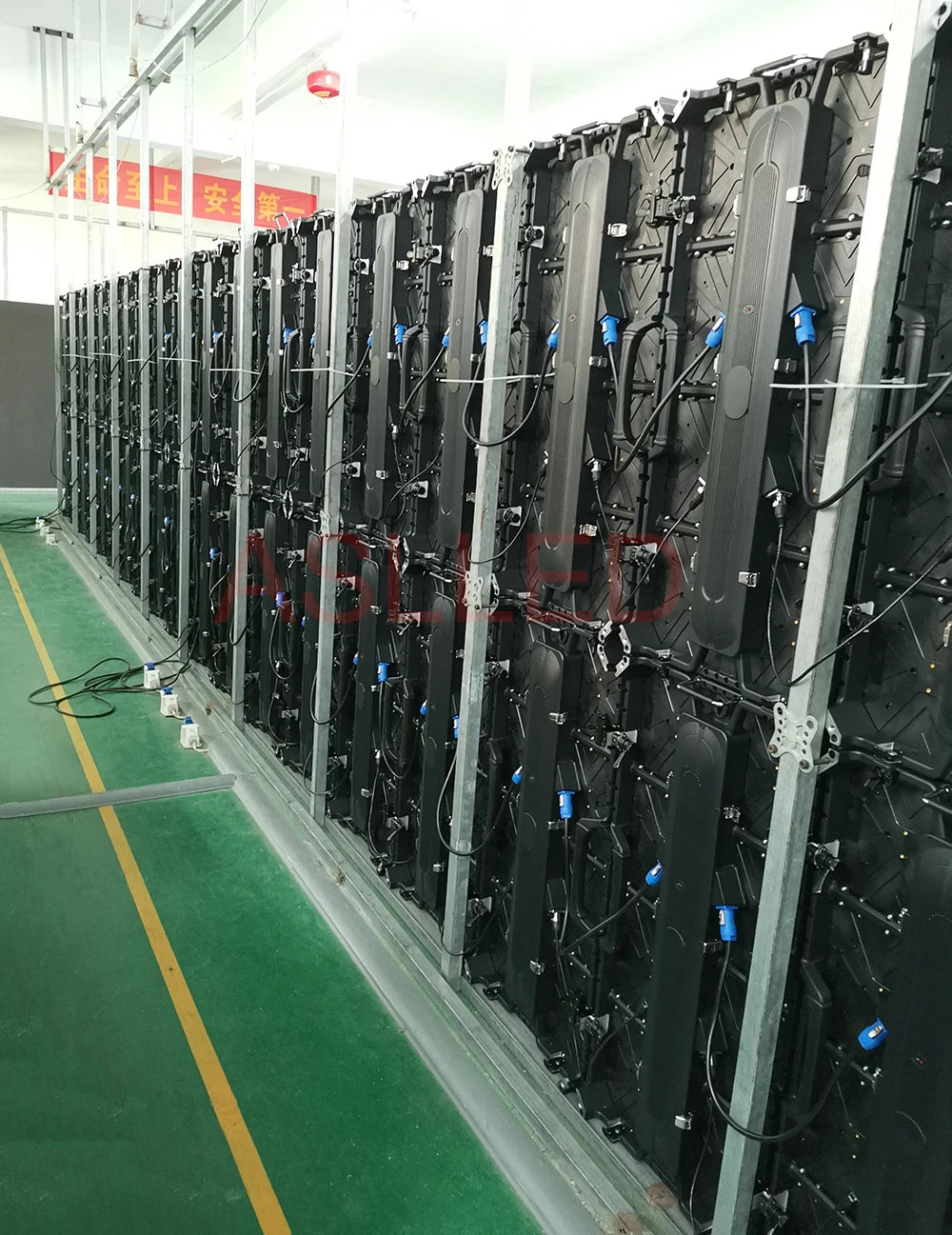

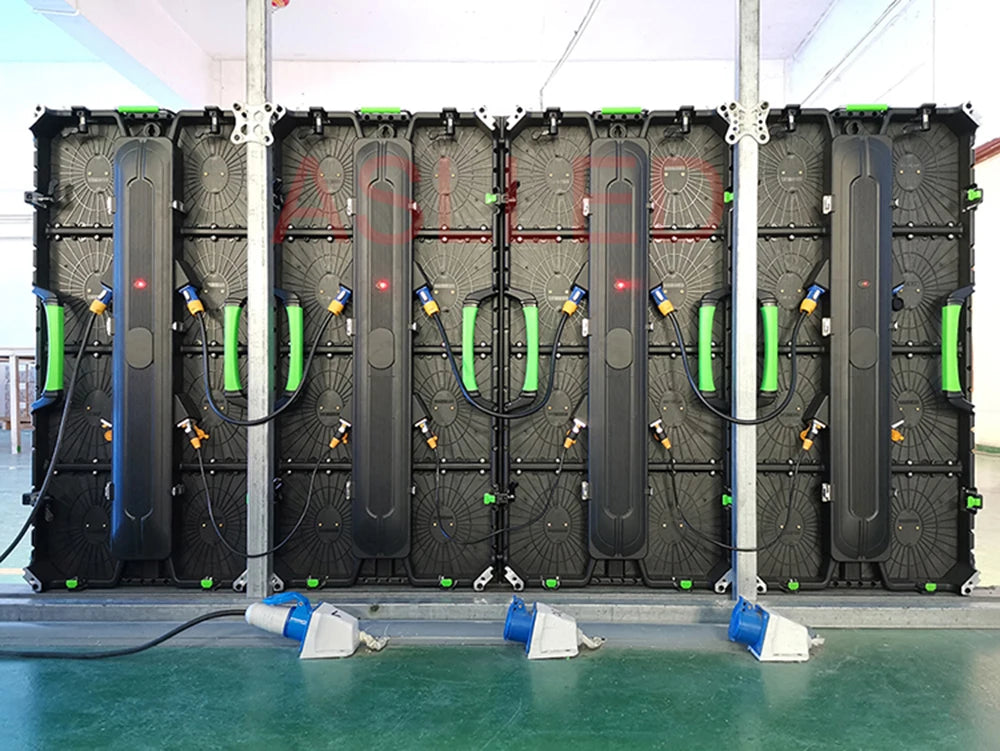

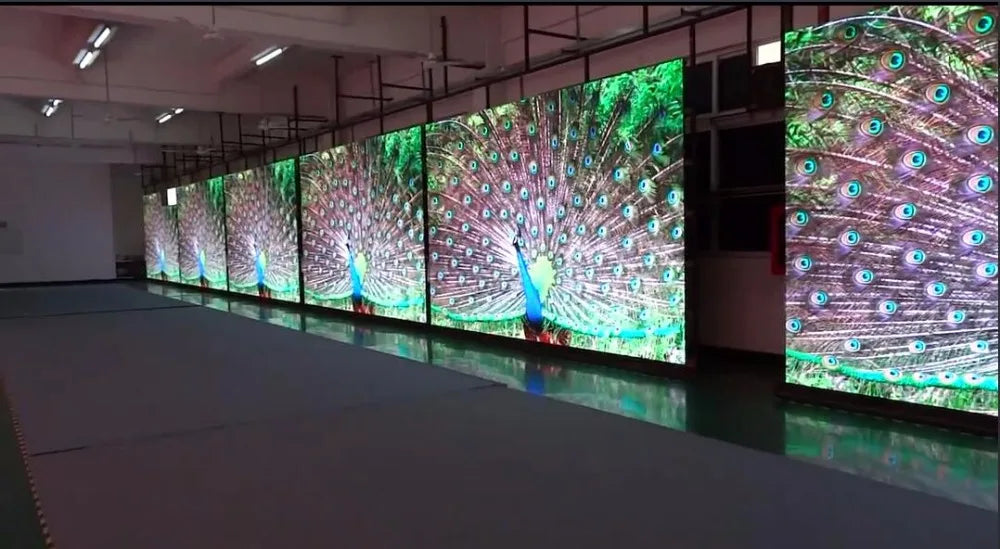

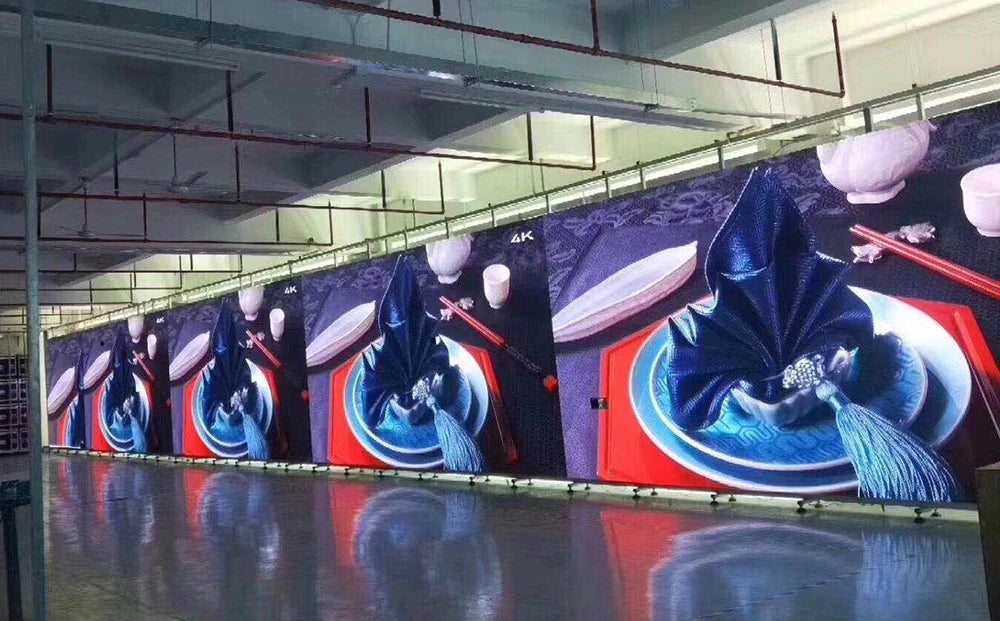

LED display pre shipment test:

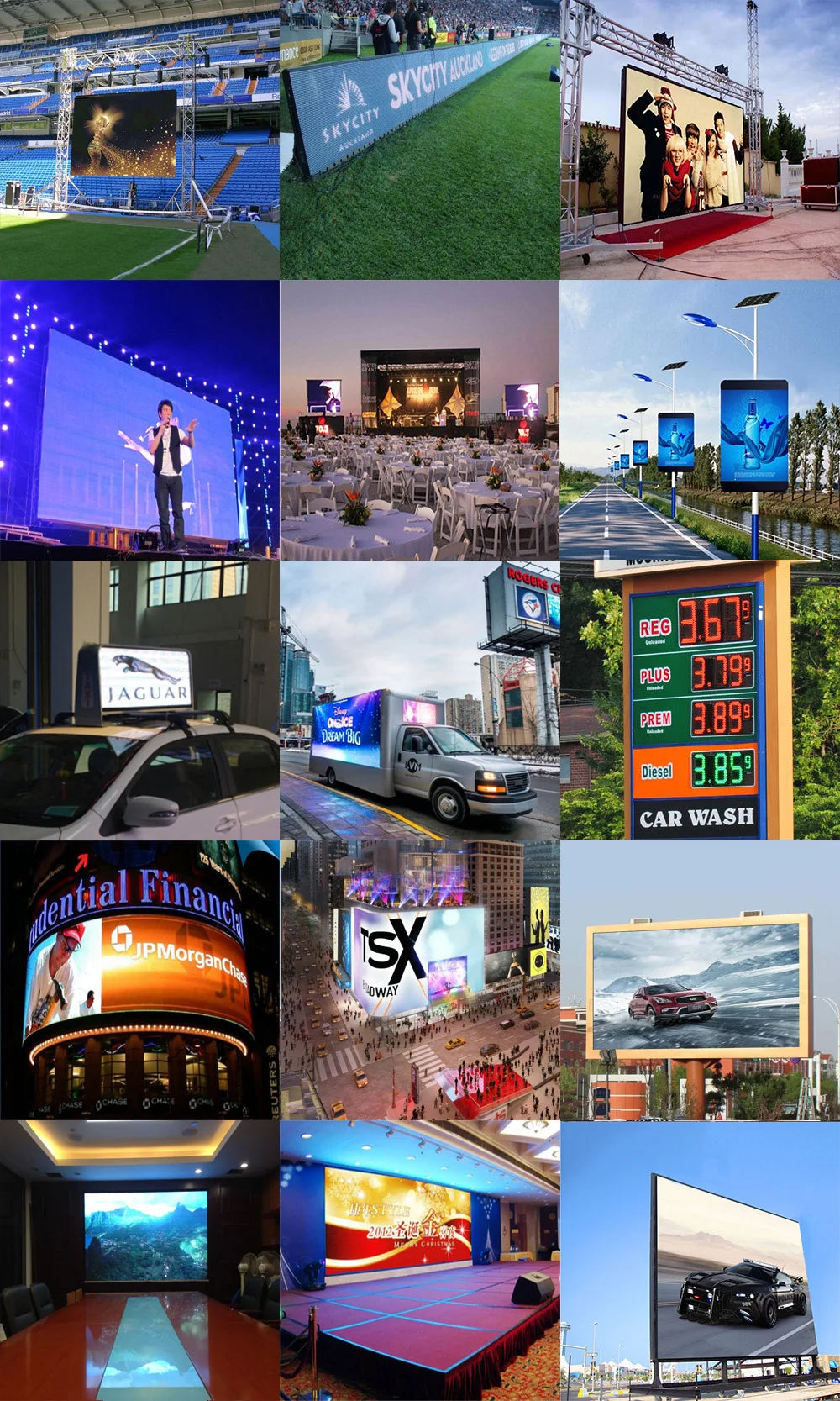

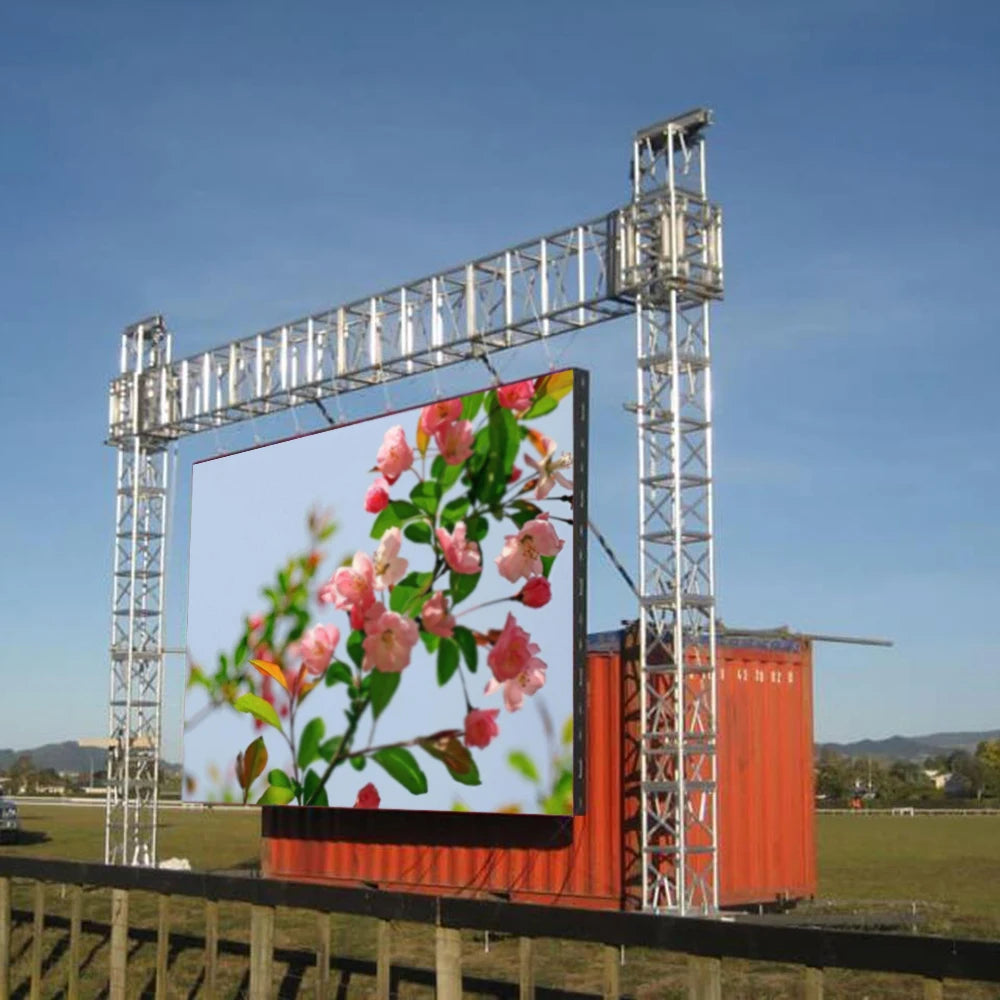

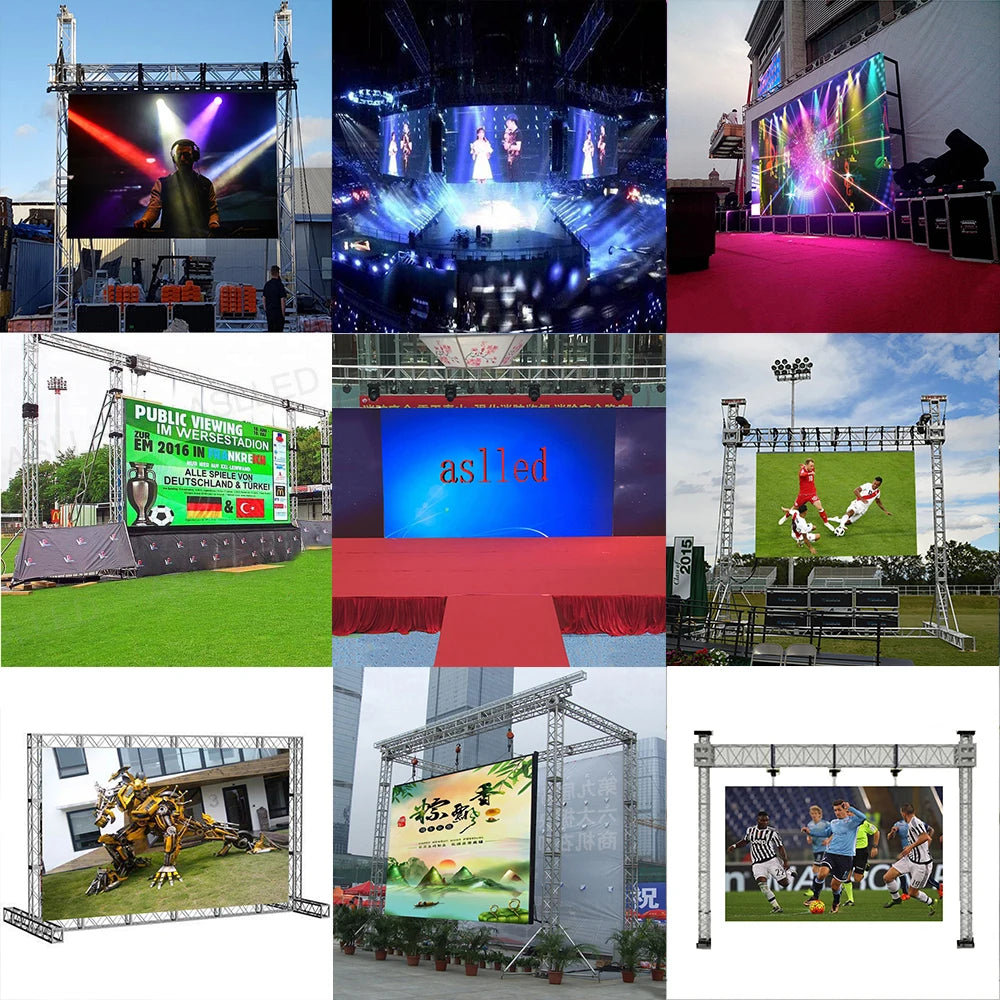

Project display:

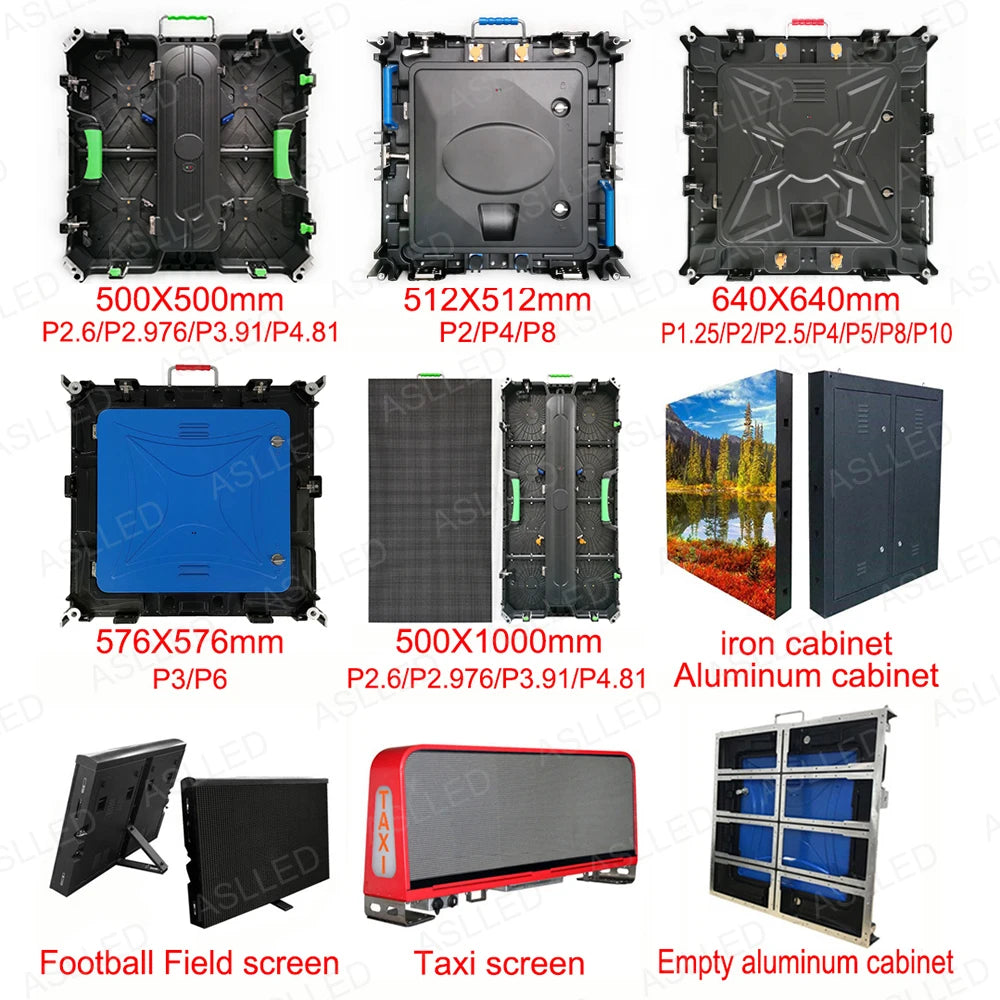

Products Recommended:

We have different types of LED cabinets for indoor and outdoor use. If you need other specifications, please contact us. We can customize the LED display you need.

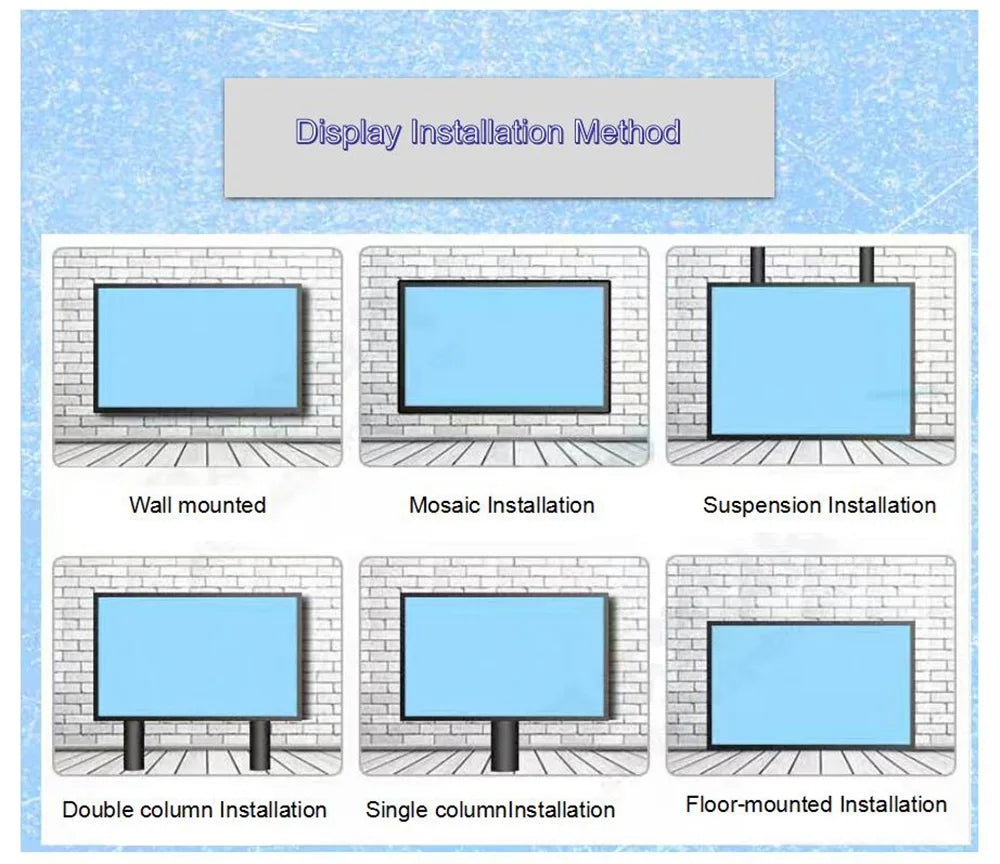

Display installation method:

Tips：

1. About LED controller

1. The price does not include the sending card and video processor, please contact us to buy if you need it.

2. The screen panel power supply and receiving card will be replaced according to customer needs, so it may be different from the picture.

2. About different batches of LED displays

1. Due to product upgrades, the batches of LED modules are different, and the module plastic casing, chip IC, PCB board, screw position, LED color, cabinet and other components may be different from the picture.

2. LED displays of different batches or LED displays of different companies are not compatible, please do not mix them together.

3. If you buy LED displays at different times, we will not guarantee that their appearance is the same.

4. If you buy it for repair, please contact us to confirm whether it is the same batch before placing an order.

5. If you want buy multiple LED modules to build a large screen, but had to buy multiple times separately, in this case, please contact us at the first purchase, so that we can Mark batch number of the LED modules for you, and let us confirm whether it is possible Keep enough of the same batch of LED modules for you to purchase multiple times, and complete the purchase within a specific time.

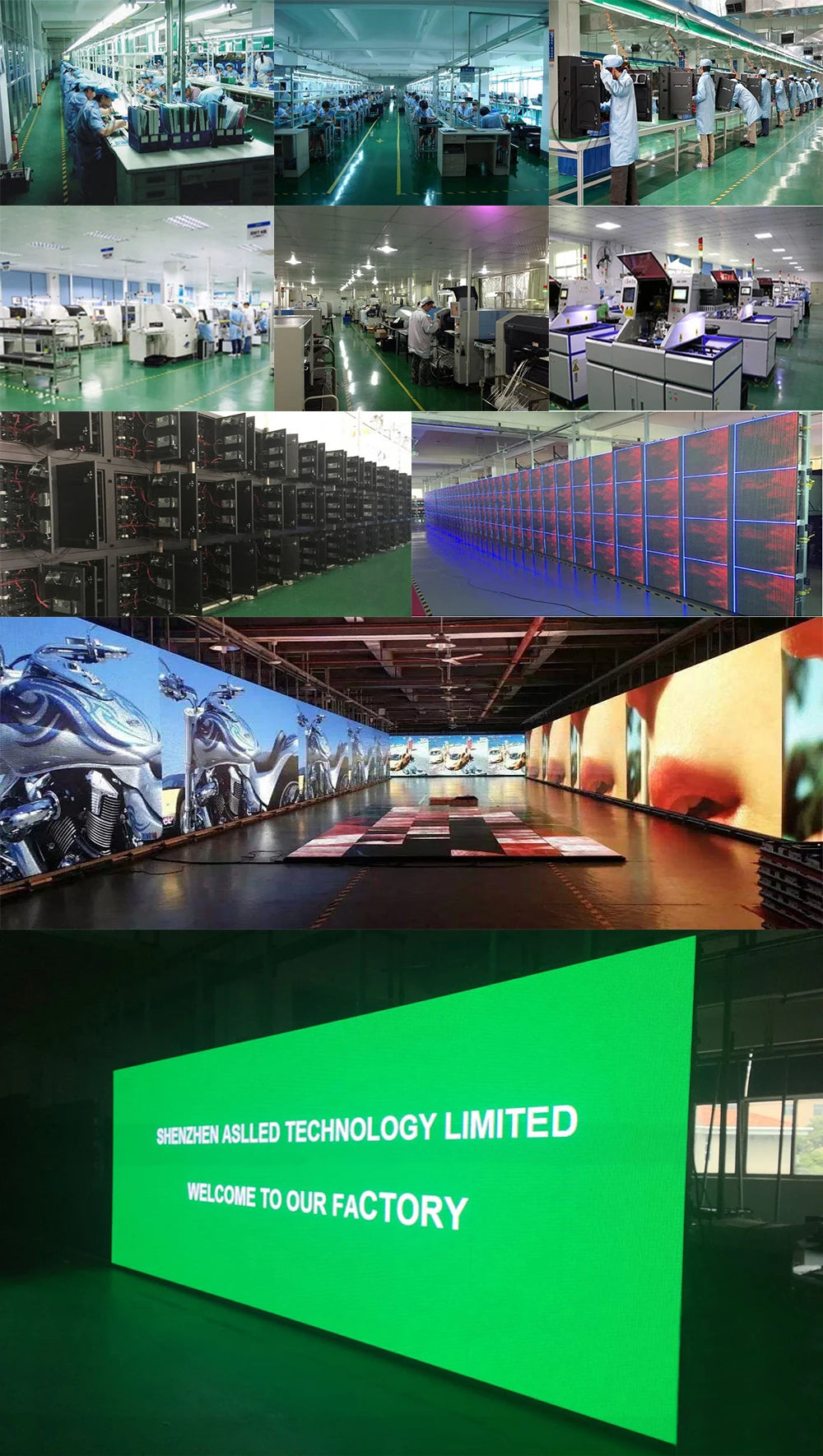

Our company:

1.We are a LED display manufacturer integrating R&D, production, sales and after-sales service.

2. We have rich professional knowledge and advanced production equipment, which can provide customers with low-cost and high-quality products.

3. We provide customized LED products you need.

4. We have an experienced professional technical team that can provide you with technical support,Help you solve the problem of LED display project.

5. We can reissue the goods lost due to the delivery period for free.

6. Our products are sold all over the world, and have won unanimous praise from customers all over the world with high-quality products and high-quality after-sales service.

Our packaging and delivery:

1.The best packaging method will be selected according to the quantity of different products.

There are usually cartons cases, wooden cases, and flight cases to choose from.

2. We provide air or sea freight according to the customer's need to deliver products quickly or need a cheaper transportation method，

Logistics company usually used for delivery (DHL / FedEx / UPS / TNT / EMS / AliExpress Standard Shipping, etc.)。

3.Delivery time depends on the courier company ,the destinations, the local customs and other factors;

We hope it arrive on time, but this international delivery shipping time will be highly depends on the courier company and local customs,

hope you can understand if there are any shipping delay caused by above reasons.

If you are interested in our products, please feel free to contact us,Looking forward to a good start and a long-term partnership with you!
