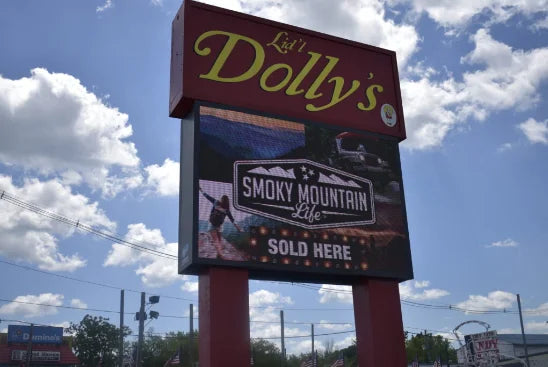

Outdoor Seamless Splicing Double-Sided Outdoor Led Video Display Board Led Display Sign Outdoor For Advertising Billboard
Outdoor Seamless Splicing Double-Sided Outdoor Led Video Display Board Led Display Sign Outdoor For Advertising Billboard
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: TLXT
Origin: Mainland China
Tube Chip Color: Full Color
Model Number: P8
is_customized: Yes
Usage: outdoor
Display Function: text
is_customized: Yes
Pixels: 10mm
Display Function: video ,animation ,graphic ,messages,text
Tube Chip Color: Full Color
Usage: outdoor ,semi-outdoor
Model Number: P8
Brand Name: TLXT
Origin: Mainland China
cabinet size: 960*960mm
cabinet resolution: 120*120dots

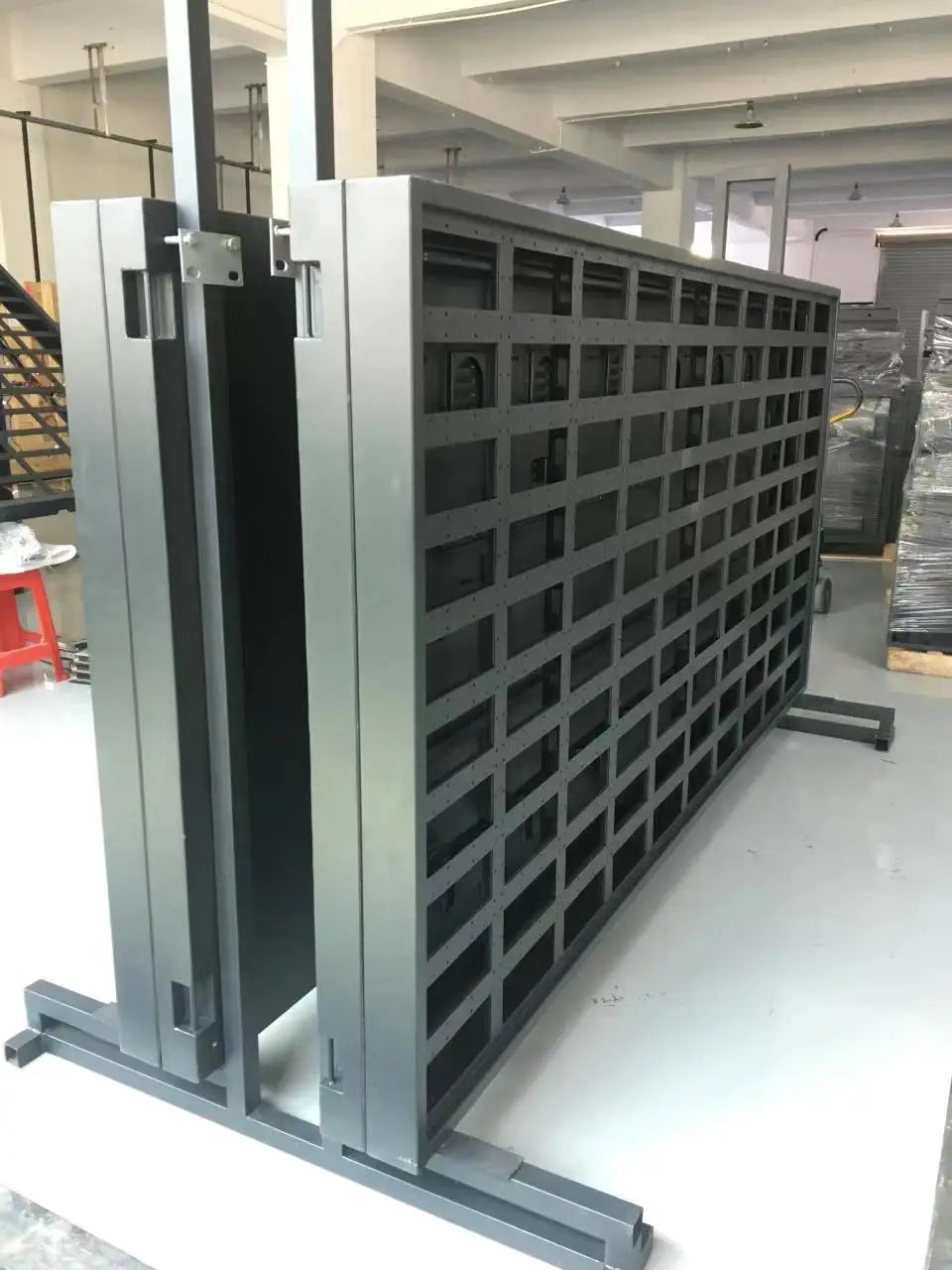

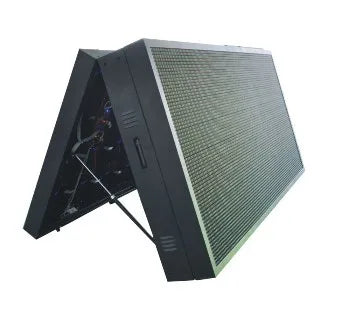

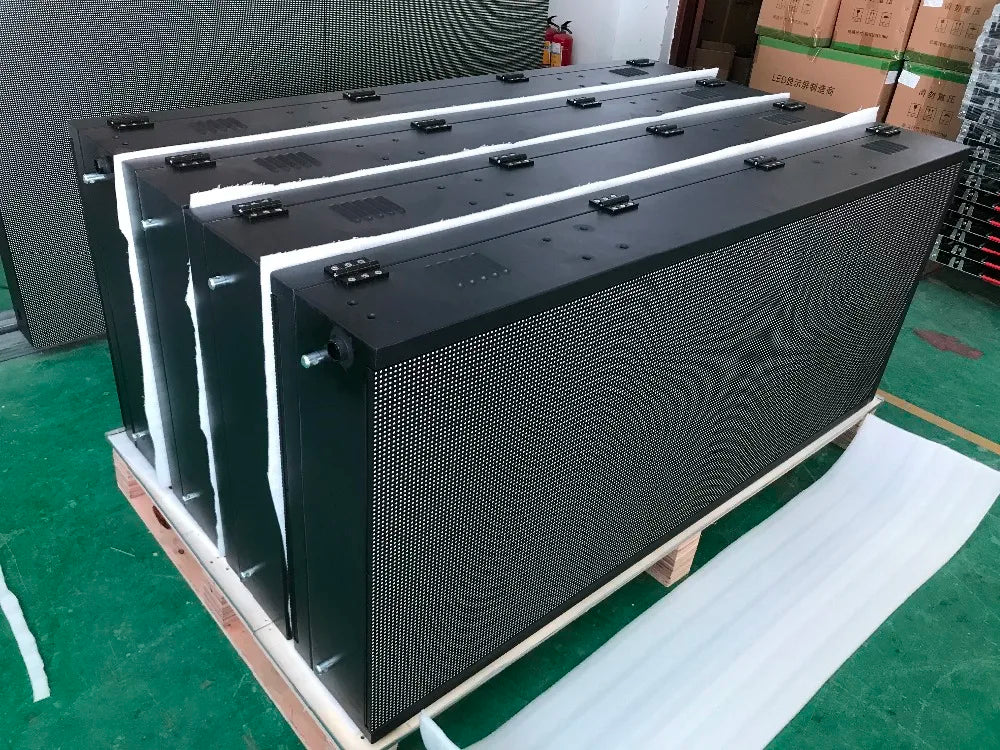

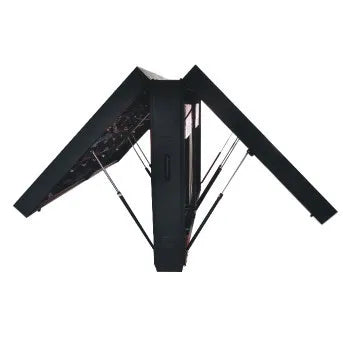

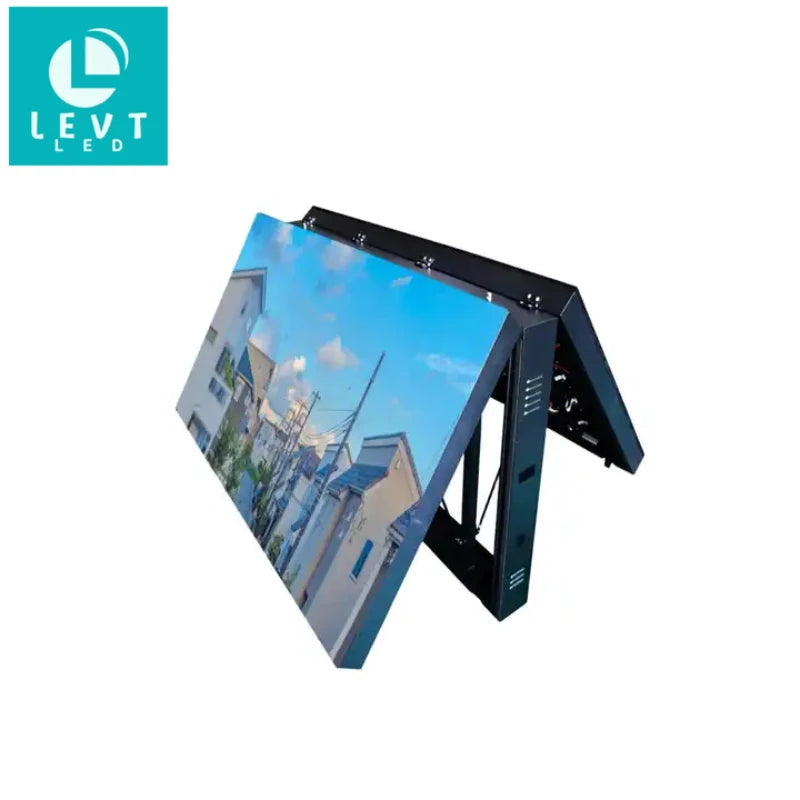

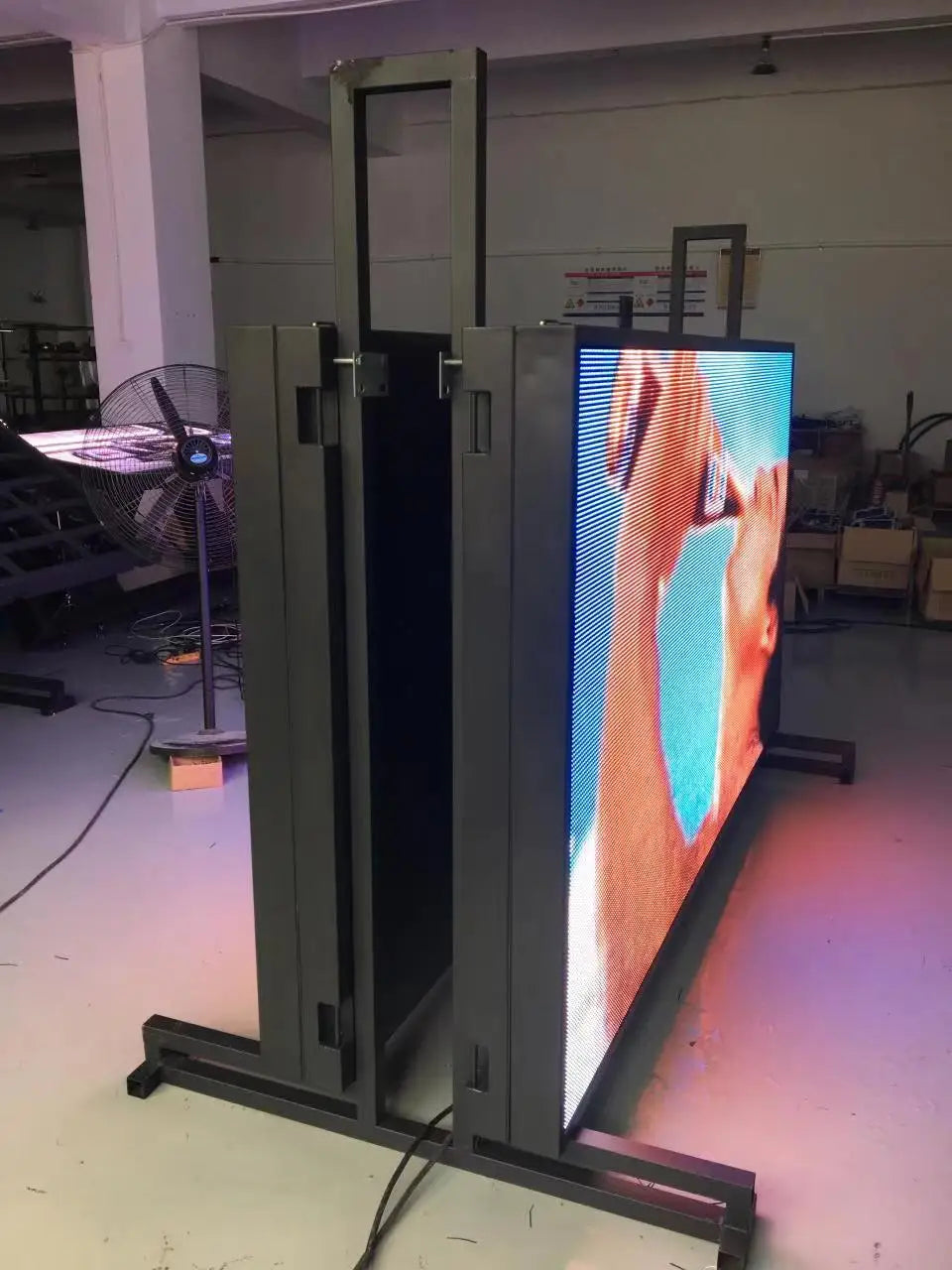

This product is Double Sided Led Screen.
The linked price is for P8 Outdoor Double Sided Led Screen per square meter.
How do you want to buy it ?
For example, if you want the size of P8 Double Sided Led Screen which is 3*5ft, then the total area of the double sided screen is 3 square meters, so you need to buy 3 pieces.
And of course you need to buy the control system and packaging. Please contact Jacy to give you the most suitable and cheapest solution.
| Pixel Pitch | 8mm |
| Physical Density | 15625 pixels/m² |
| LED Arrangement | smd 3in1 |
| Module Dimension | 160x320mm |
| Module Resolution | 20×20 / 20x40 pixels |
| Cabinet Dimension(mm) | 960X960 |
| Cabinet Resolution(pixels) | 96x96 |
| Cabinet Weight | 38kg |
| Brightness Level | 6500-7500nits |
| Max Power Consumption | 920w/sqm |
| Ave Power Consumption | 480w/sqm |
| Viewing Angle | 160°/160° |
| Color Capability | 4.4 trillion |
| IP grade | IP67 |
| Operating Temperature | −40℃~+ 45℃ |
| Refresh Rate | 1,920~3840Hz (Configurable) |
| MTBF | 10000hrs |
| Life Span | 100,000 hours |
