SPECIFICATIONS

Brand Name: HUARUIMIN TECHNOLOGY

Hign-concerned Chemical: None

Origin: Mainland China

is_customized: Yes

Usage: outdoor

Display Function: VIDEO

Pixels: 3.91MM

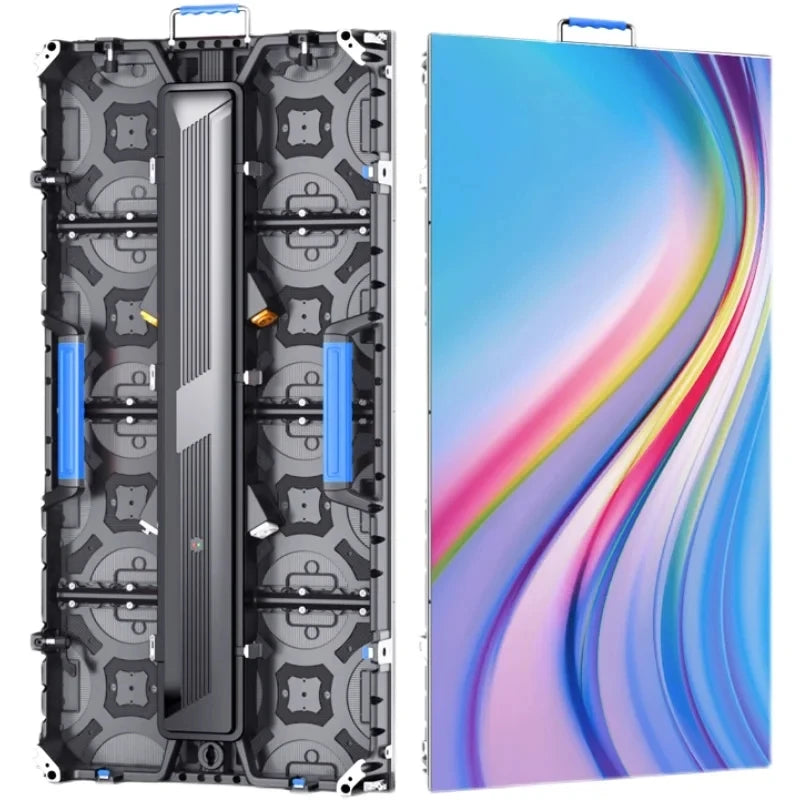

P3.91 Outdoor LED Display panel

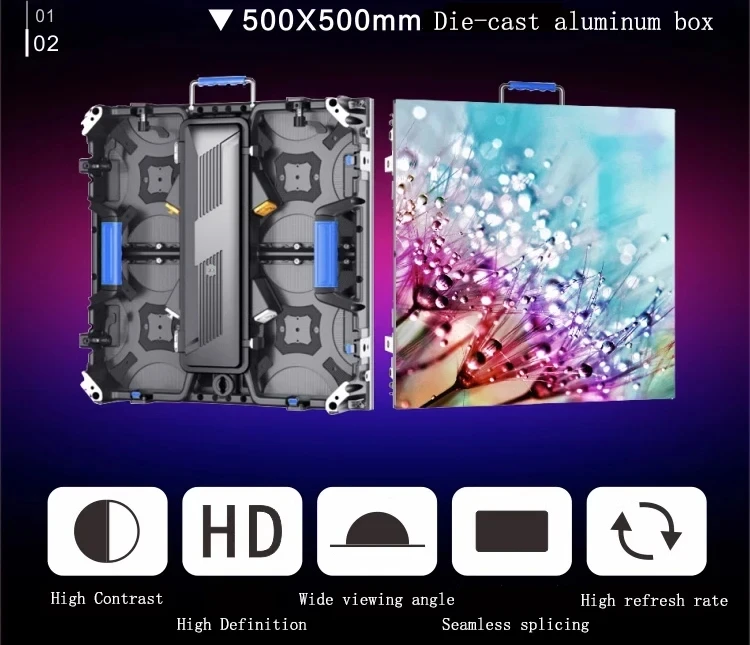

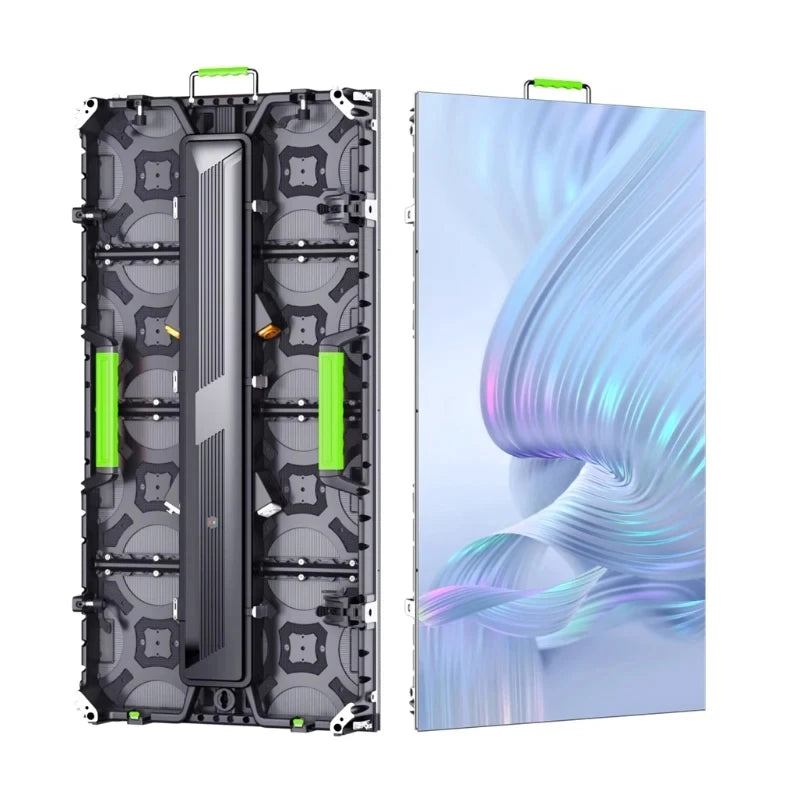

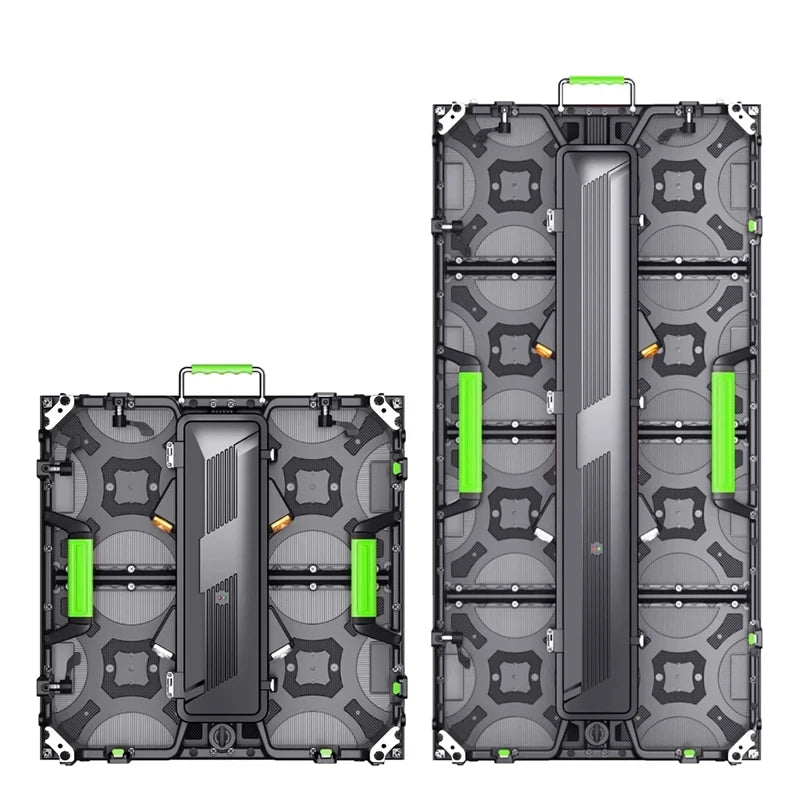

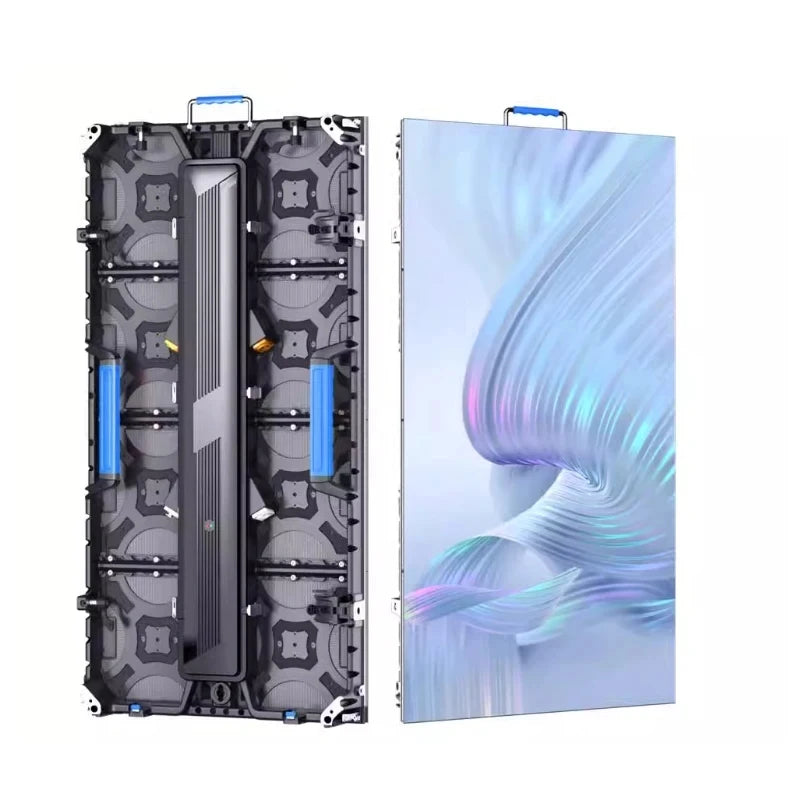

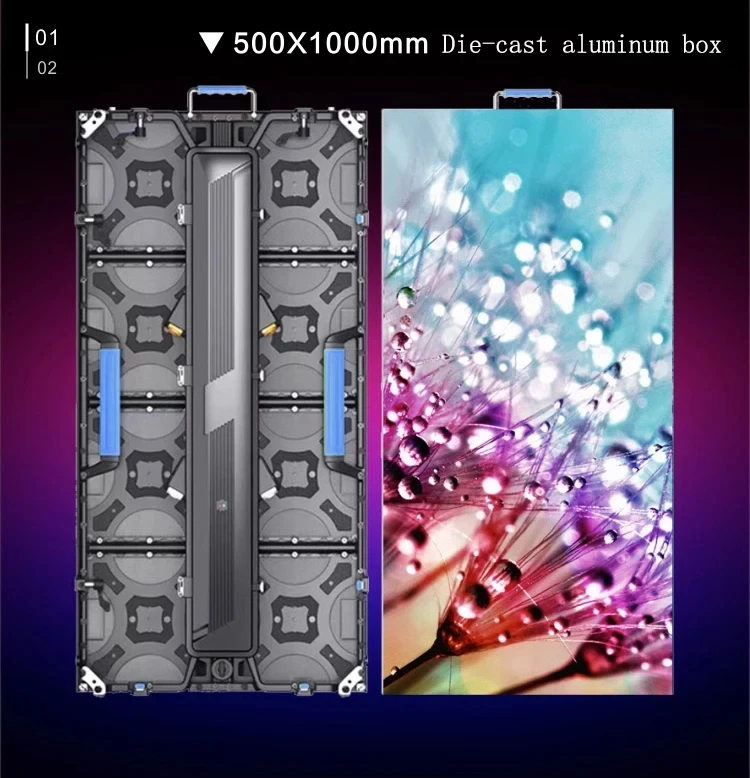

         500x1000mm die cast aluminum cabinet

Product parameter:

Module Size: 250mmX250mm.

Module Pixel Pitch: 3.91mm.

Module Resolution: 64dotsX64dots.

Pixel Density: 65536dots/sqm.

Color Configuration: 1R1G1B 3 in 1.

LED Package: SMD1921.

Drive Mode: 1/16Scan Constant Current.

Cabinet Size: 500mmX1000mm.

Cabinet Resolution: 128X256 pixels.

Cabinet Material: Die casting aluminum.

Cabinet Weight: 12.5KG.

Refresh Rate: 3840HZ(adjustable).

Frame Rate: 120frame/sec.

Grey Scale: 16.7M colors.

Interface: Aviation plug.

Brightness: 3000-6500 cd/sqm(adjustable).

Viewing Angle: H: 160°; V:160°.

Color Temperature: 256 level(adjustable).

Power Input: AC110V/ 220V, 50HZ/60HZ.

Average Power Consumption: 300W/sqm.

Storage Temperature: -30~+70 degree.

Working Temperature: -20~+50 degree.

IP grade: IP65(waterproof).

Operating Humidity: 10%~95%.

Blind Spot Rate: <1/10000.

Life Span: >100,000 Hours.

Warranty: 3 Years.

Certificate: CE, FCC, RoHS.

Product Features:

The product adopts high-strength structural die-cast aluminum,

light structure, good heat dissipation, energy saving and power saving,

convenient installation, uniform gray scale, and high refresh rate,

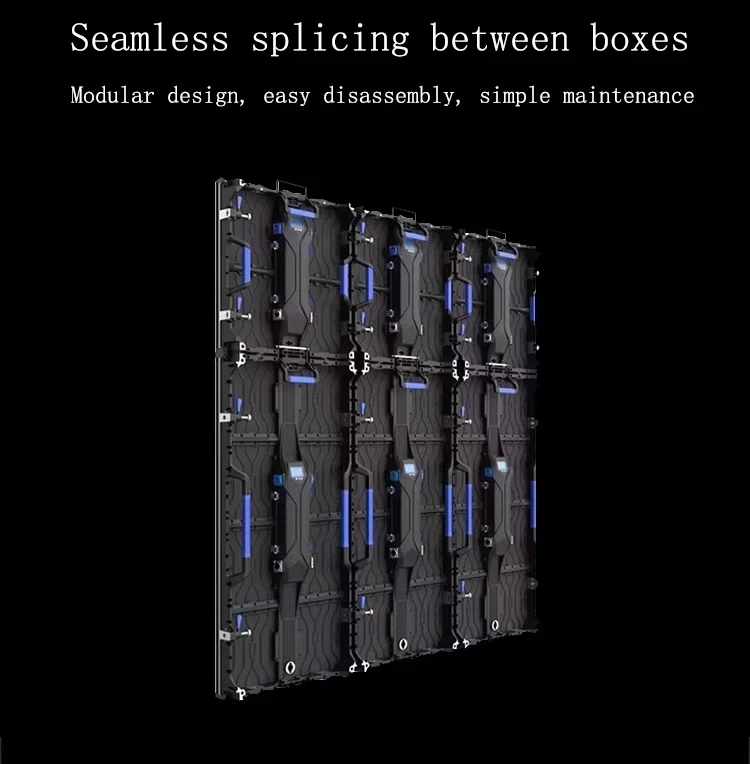

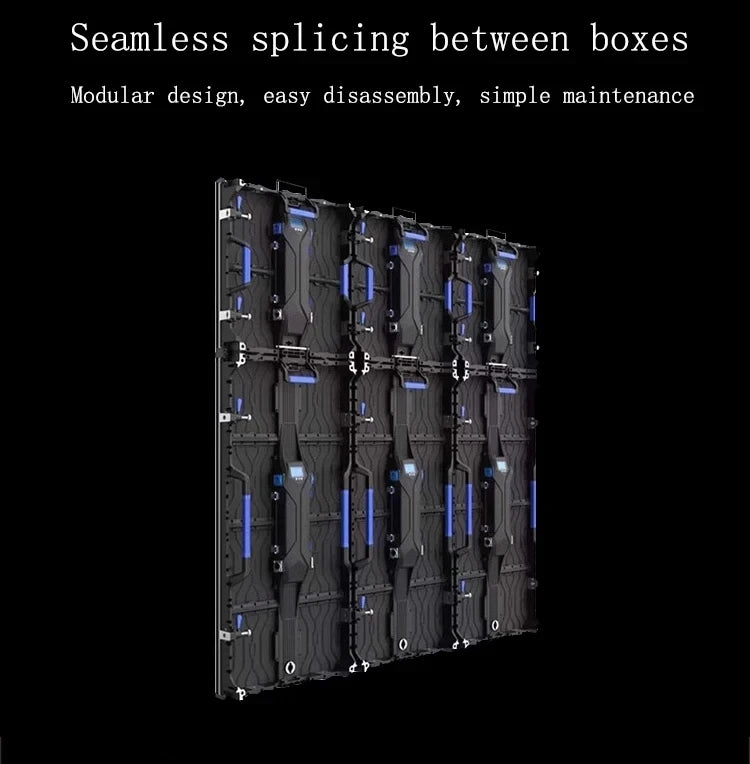

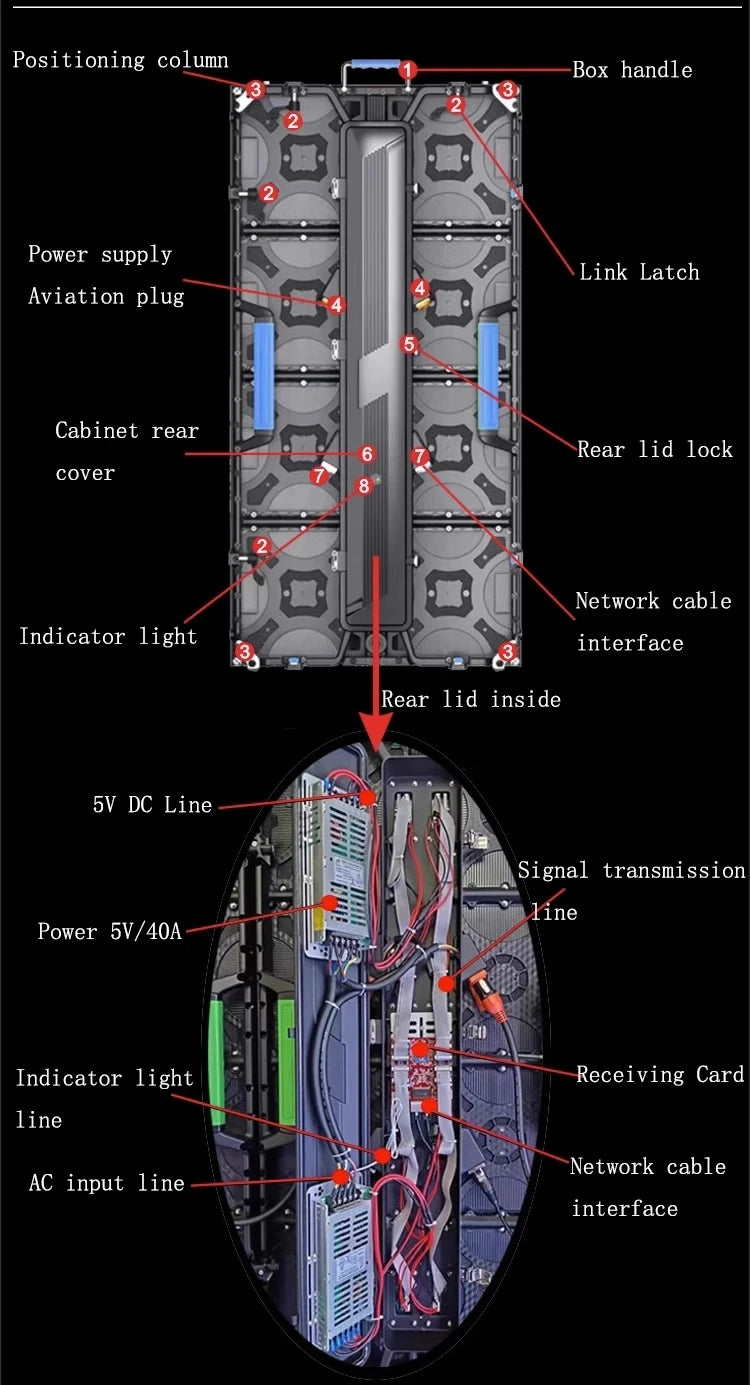

the module can be magnetically fixed for front maintenance.

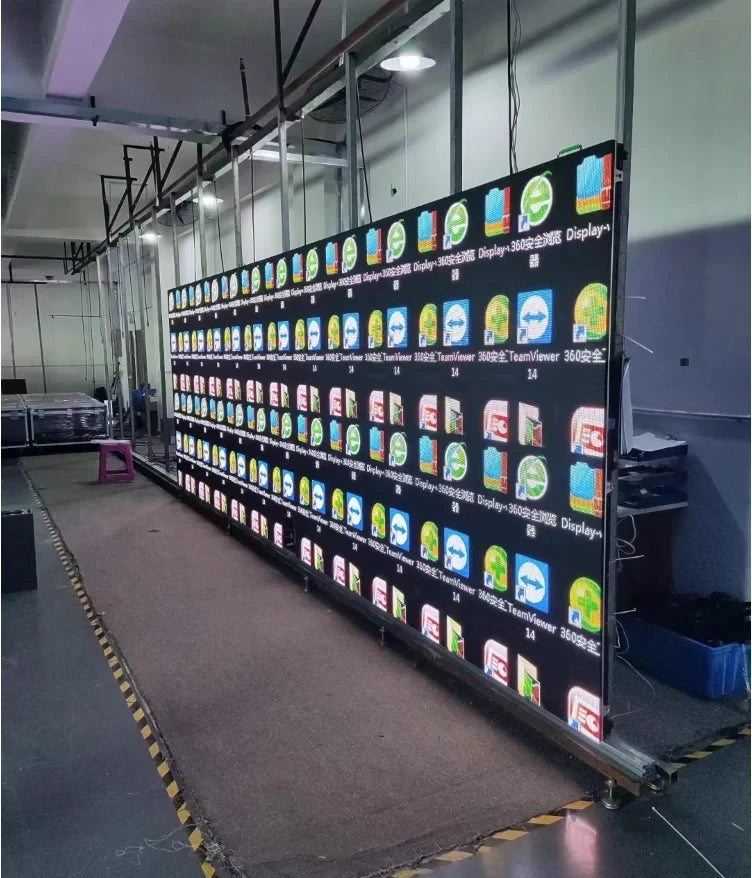

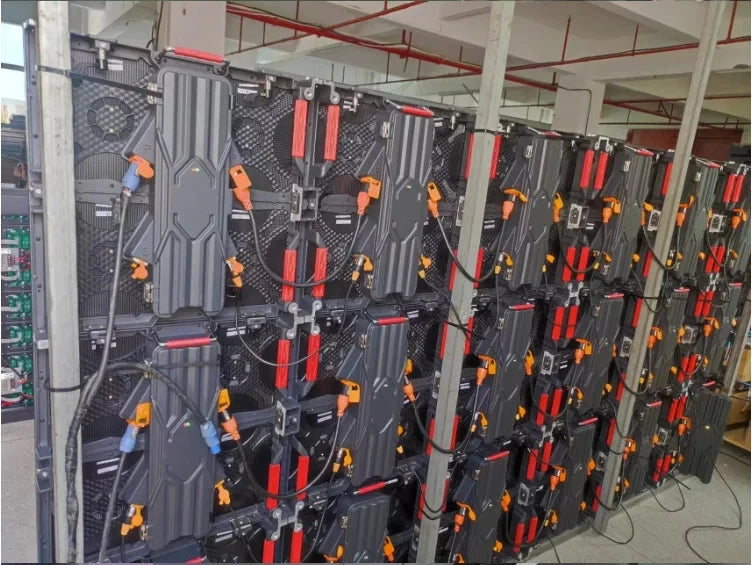

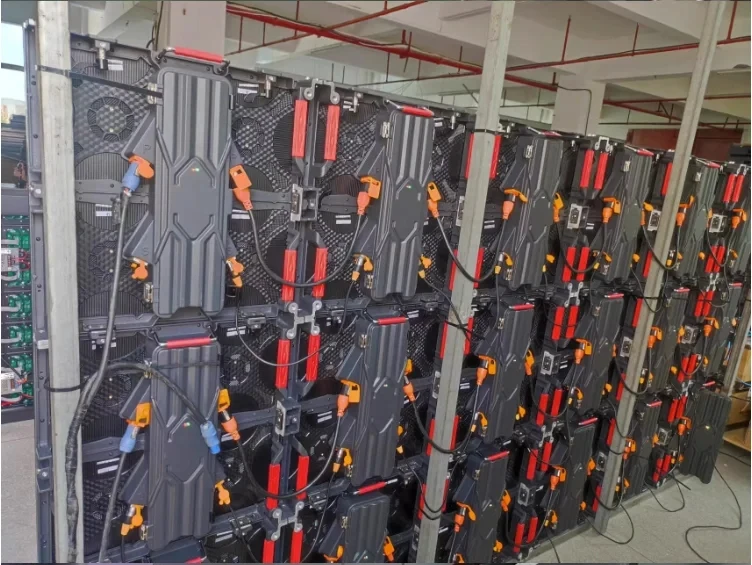

Product display:
