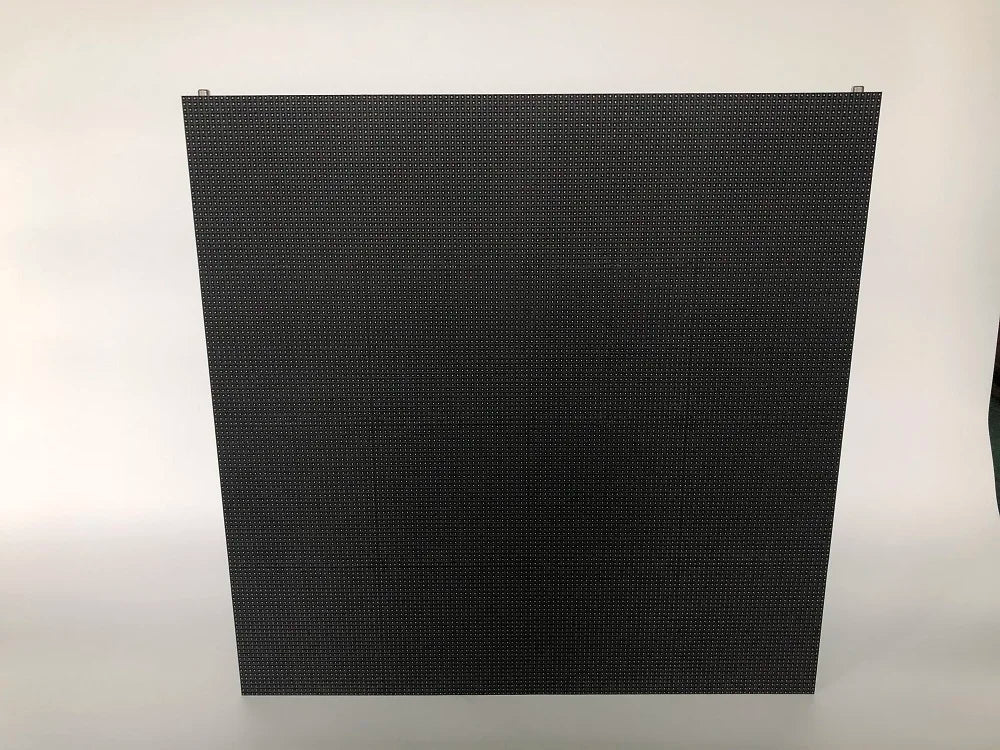

Outdoor advertising P5mm led advertising screen SMD RGB cabinet full colors outdoor display Screen Panel For Advertising
Outdoor advertising P5mm led advertising screen SMD RGB cabinet full colors outdoor display Screen Panel For Advertising
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: SZLIGHTALL
is_customized: Yes
Tube Chip Color: Full Color
Usage: outdoor
Model Number: P5mm
Display Function: Video
Pixels: 5mm
Led Type: SMD2727
Cabinet Size: 640x640mm
Cabinet Resolution: 128x128dots
Cabinet Meterial: Die casting aluminum
Brightness: 6500CD/sqm
Scan mode: 8scan
Input Voltage: 110-220V
Life Span: 1000000hours
Warranty: 3 years
Our Service
■ Warranty: 3 years. ■ Delivery within 7 days. ■ 24 hours online service and technical support. ■ OEM&ODM, we can help you to design and put into product that according to your requirements.

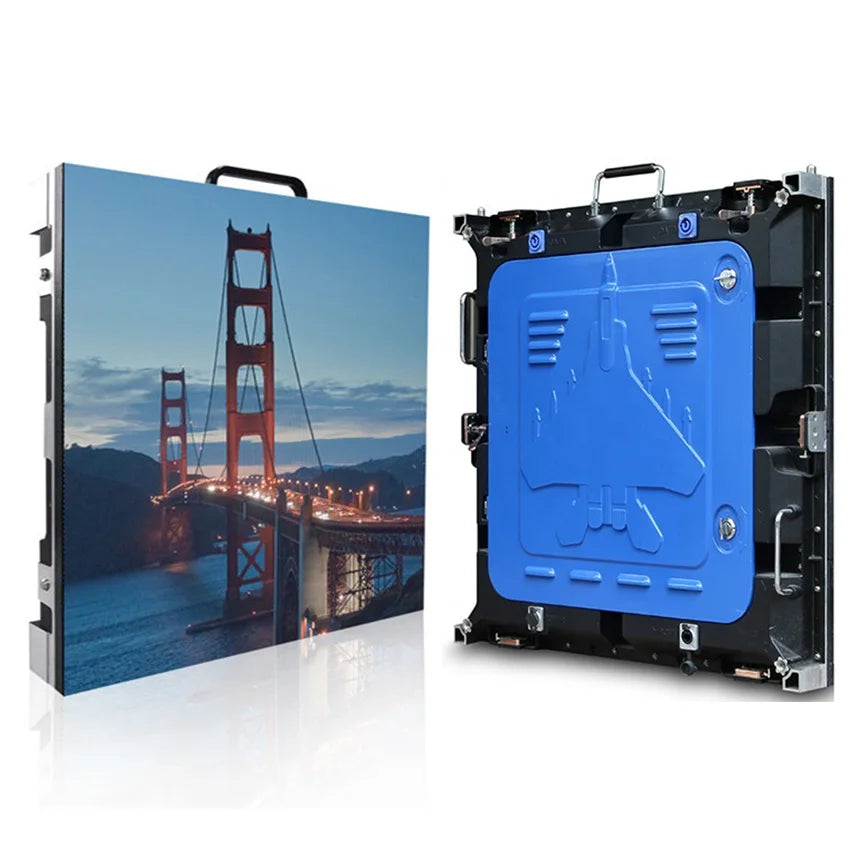

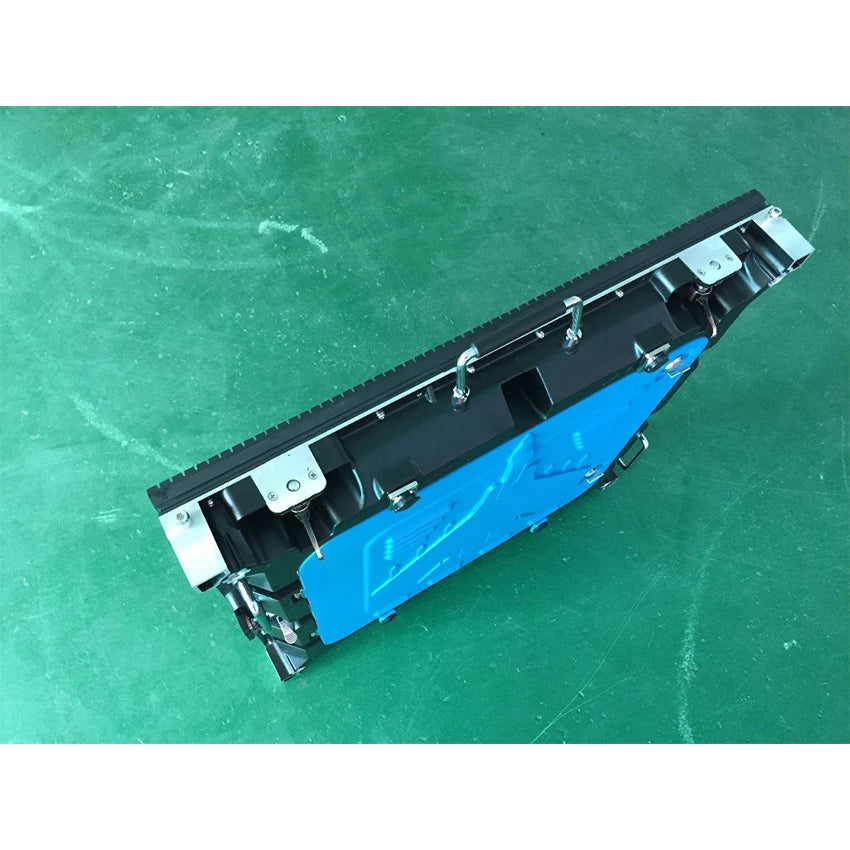

P5 SMD2727 Outdoor 640x640mm Die-casting Aluminum LED Display
Die-cast Aluminum rental panel than the general panel advantages:

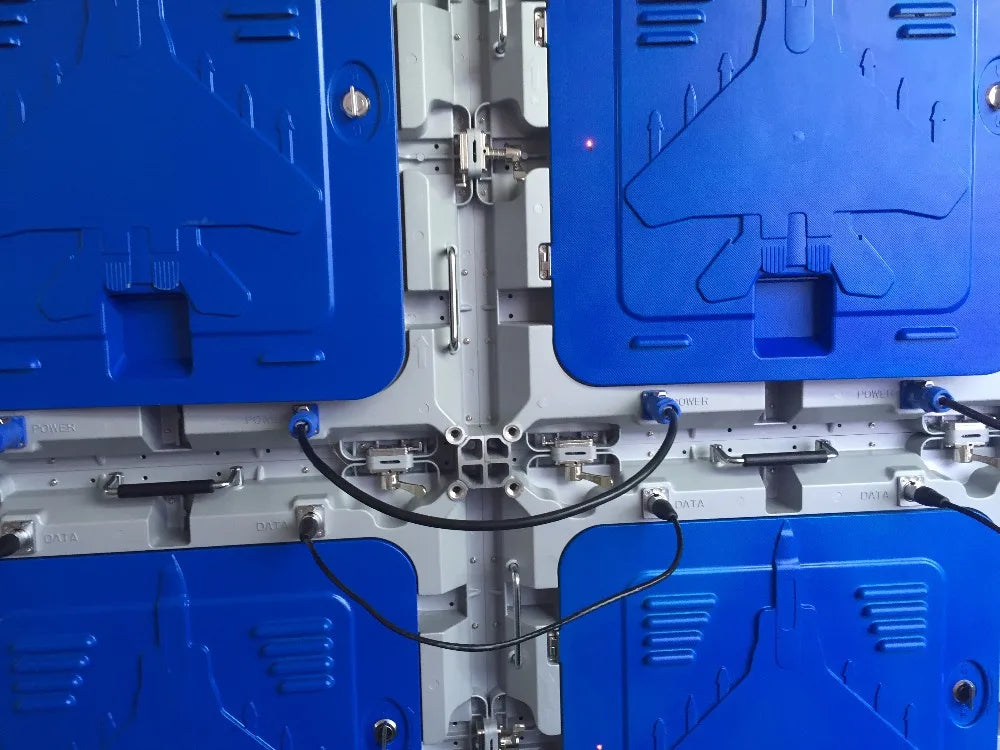

1. Light weight: per square box weighs only 24kg, single box weighs 8KG, single person can be a single hand, saving installation time; 2. Thin box: box with die casting aluminum, high strength, toughness, high precision, easy deformation, its thickness is only 80mm; 3. Screen Ping: surface flatness error less than 0.2mm, the effective elimination of mosaic; 4. Disassembly fast: the box is connected up and down with fast locking mechanism, pull the two handles 90 degrees to lock the two cabinet, 10s to complete a cabinet installation, high mounting accuracy. Enclosure and wiring connection fast and reliable, that is beautiful in appearance but also to achieve a real sense of the rapid disassembly; 5. Easy maintenance: modular design, installation and removal easy assembly Screen anywhere, simple to maintain 6. Tolerance: a new structure designed to meet the lifting of laminated requirements to meet indoor and outdoor requirements. Box single, compatible with a variety of pitch, indoor-outdoor module compatibility 7. High gray high refresh rate design,gradation 14 bit,refresh rate above 960Hz 8. Low excellent thermal design and cooling performance, without an external fan, air conditioning, low noise; light box weight, low installationcosts required; Low cabinet power consumption, saving operating costs.
Application field
* Business Organizations: Supermarket, large-scale shopping malls, star-rated hotels, travel agencies * Financial Organizations: Banks, insurance companies, post offices, hospital, schools * Public Places: Subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings, meeting rooms * Entertainments: Movie theaters, clubs, stages.

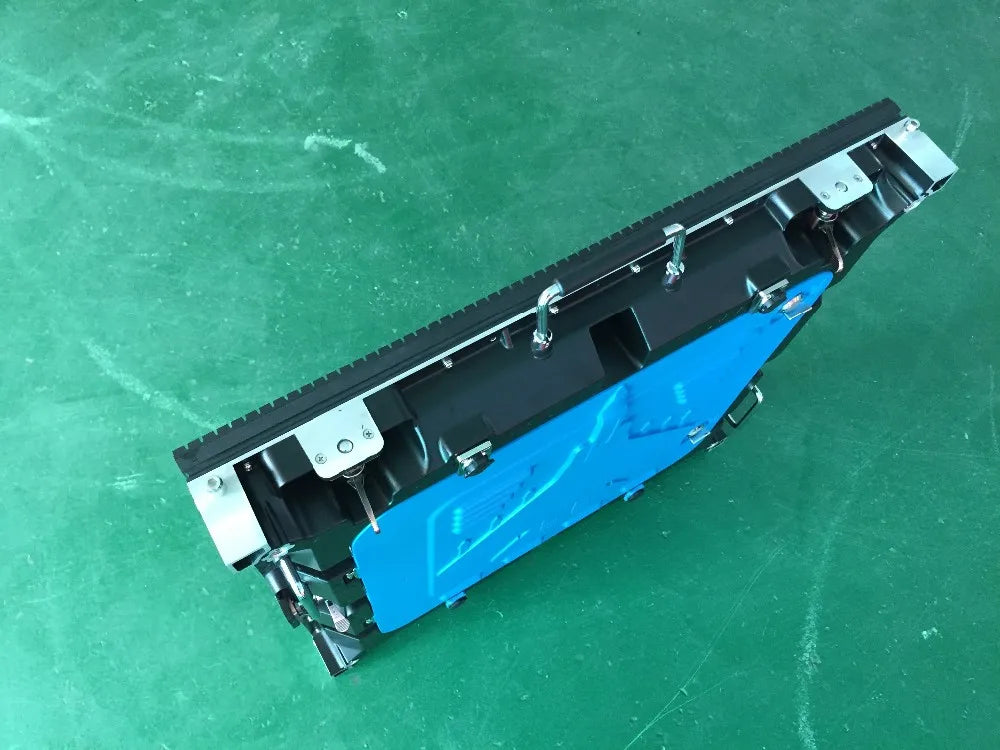

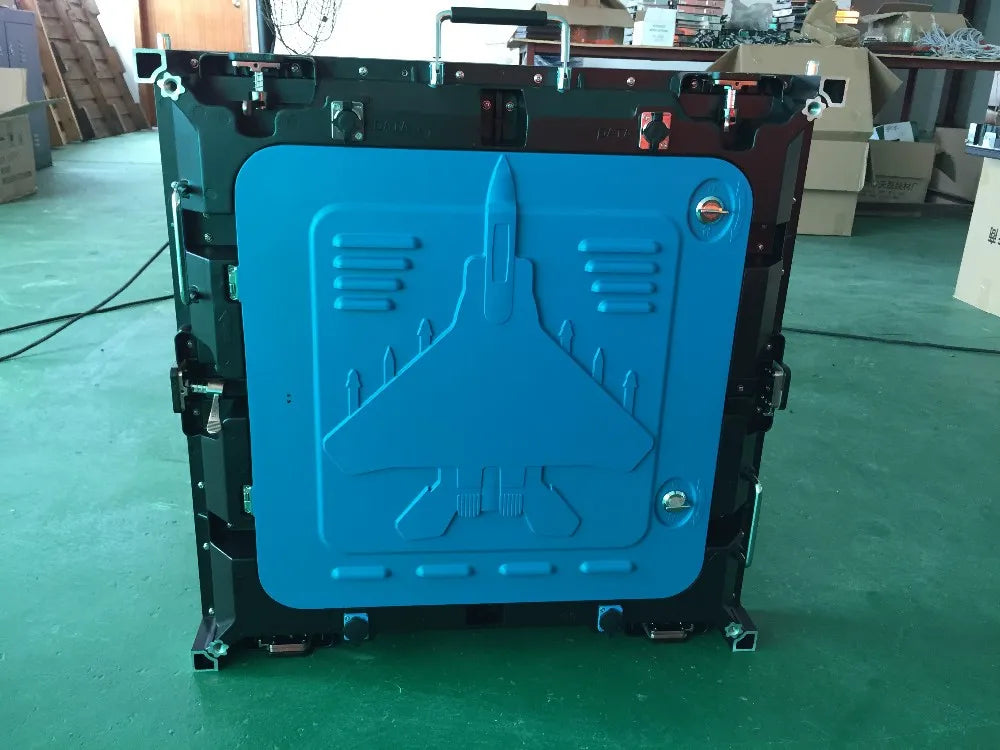

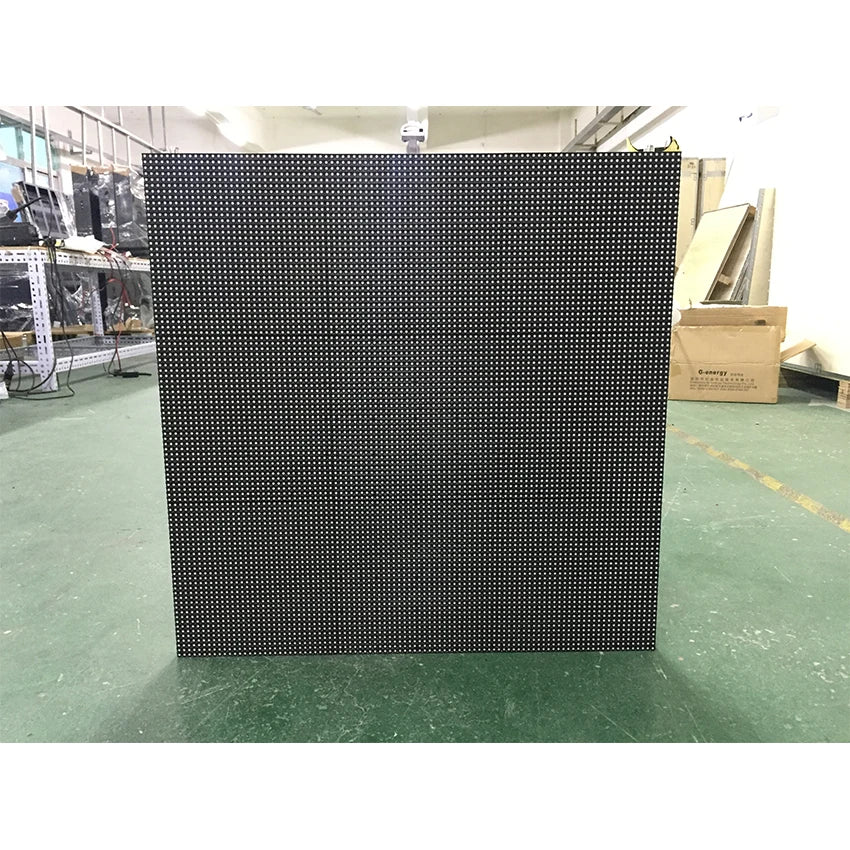

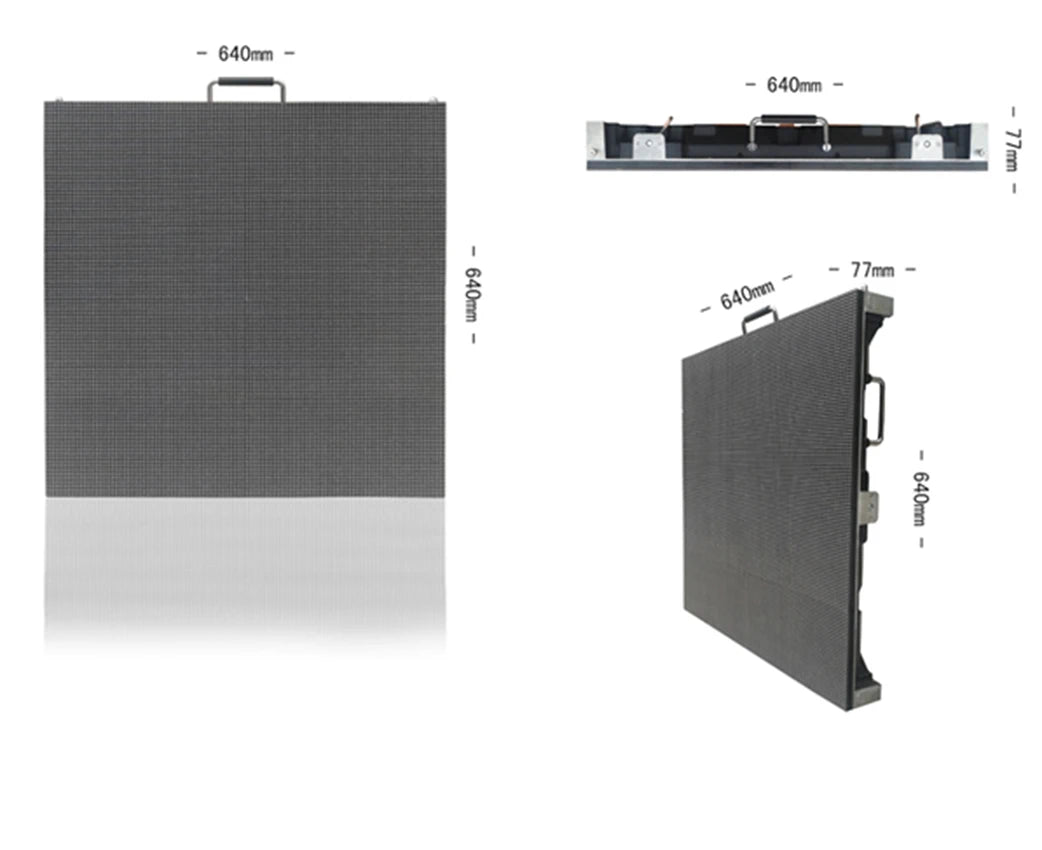

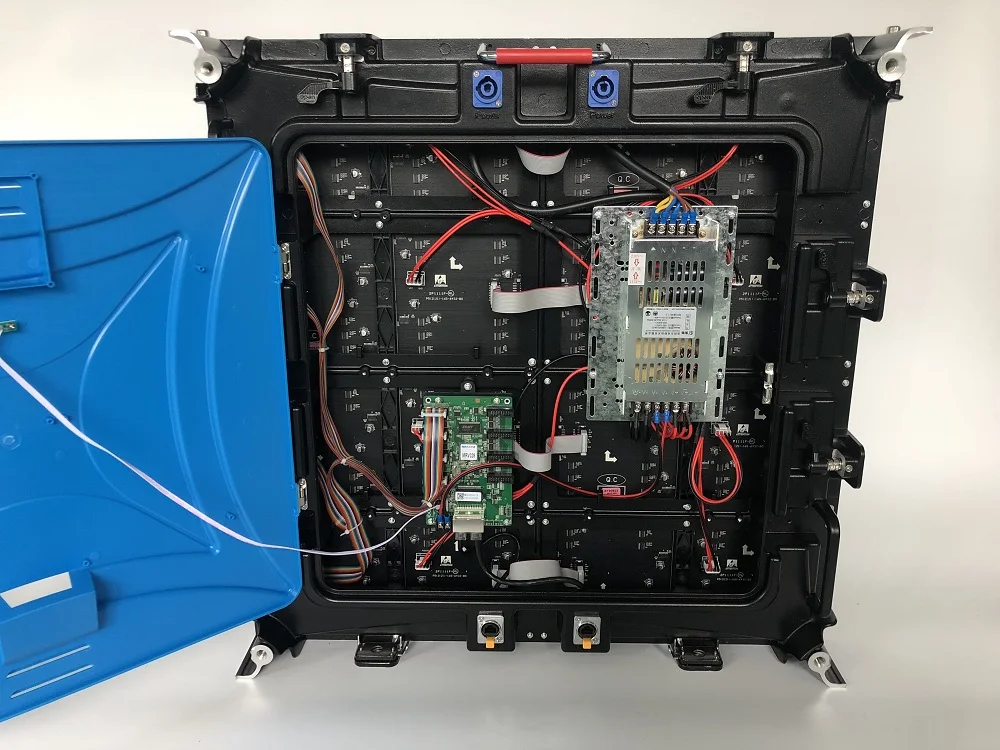

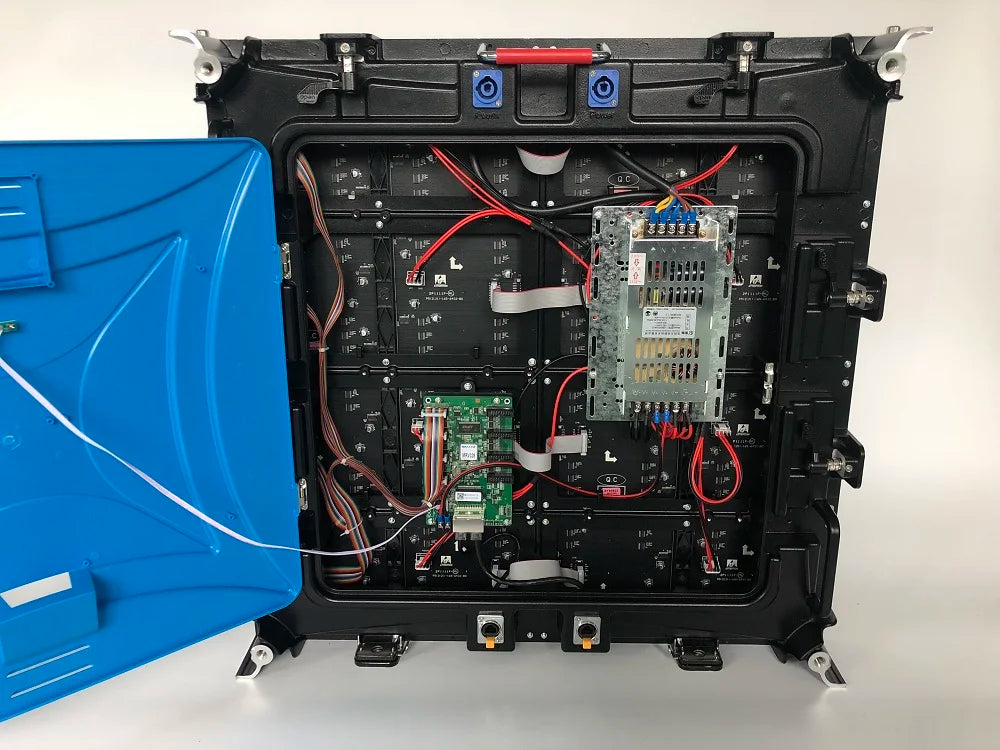

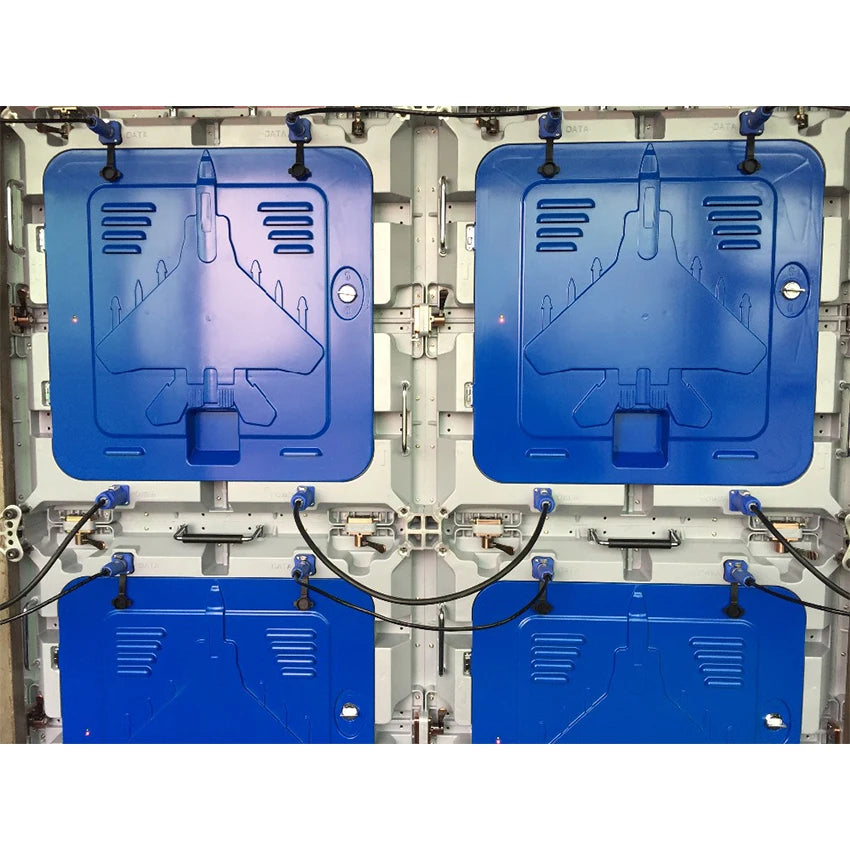

640x640mm Cabinet Details

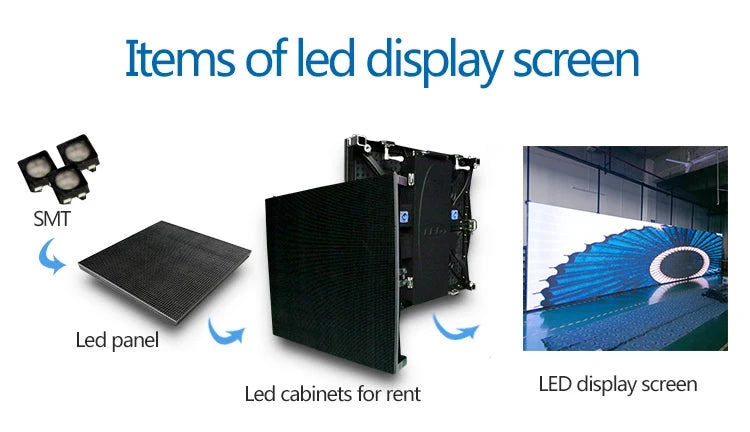

Size: 640x640mm Resolution: 128x128dots 8pcs modules make up a panel

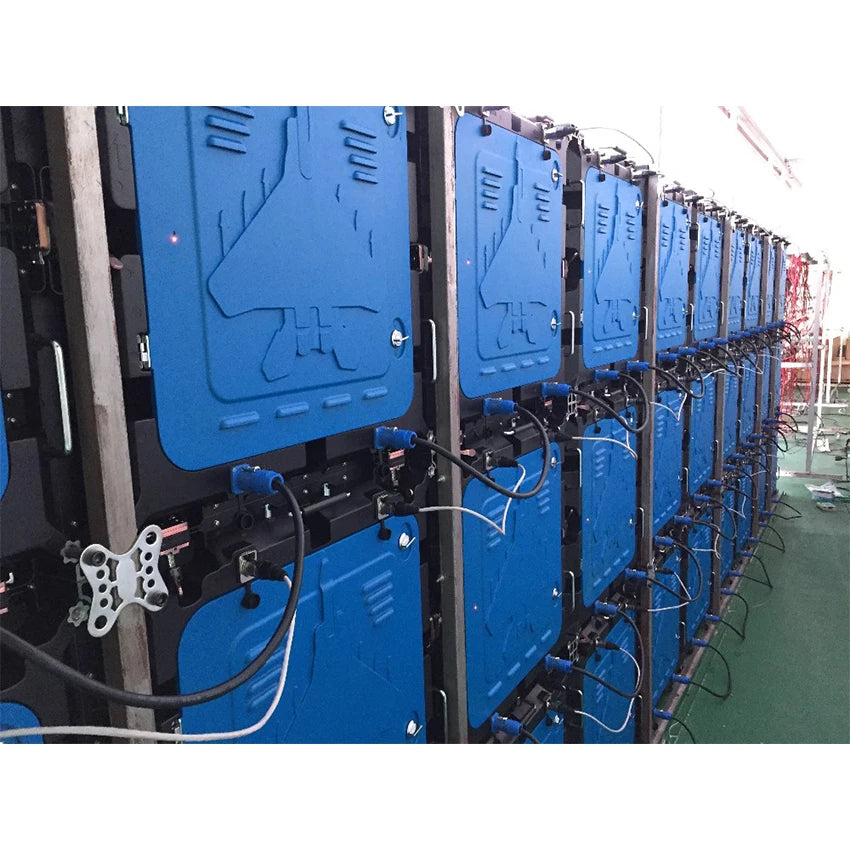

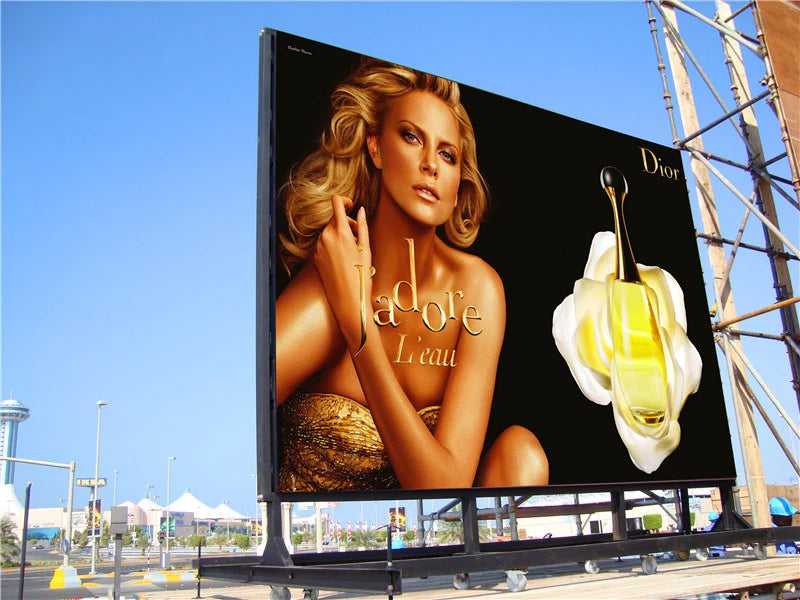

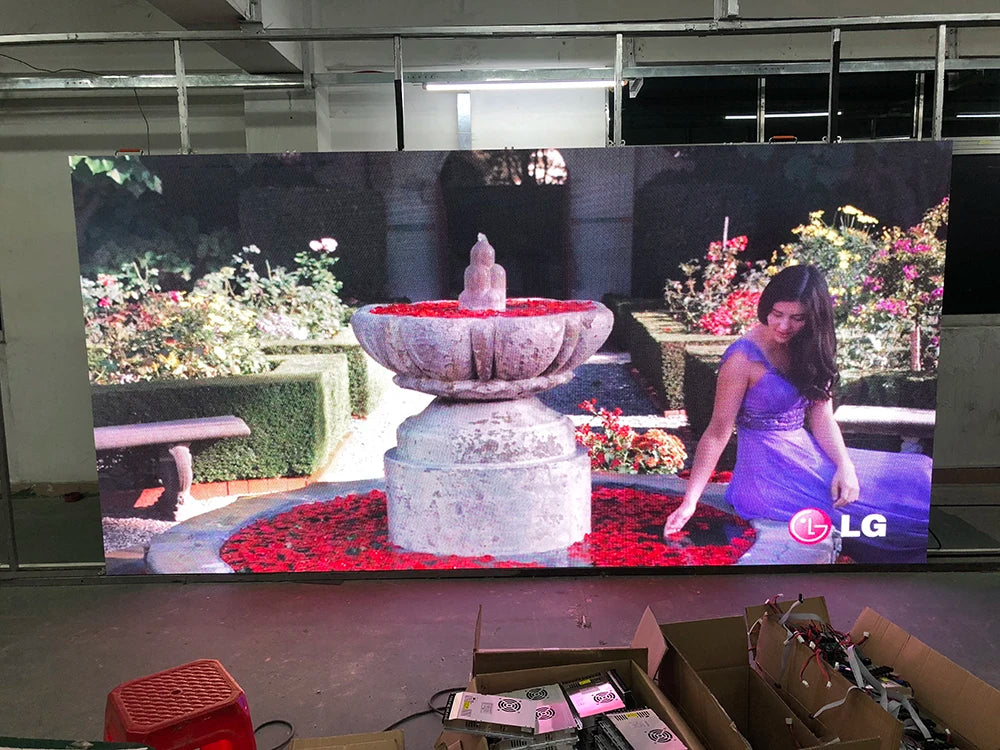

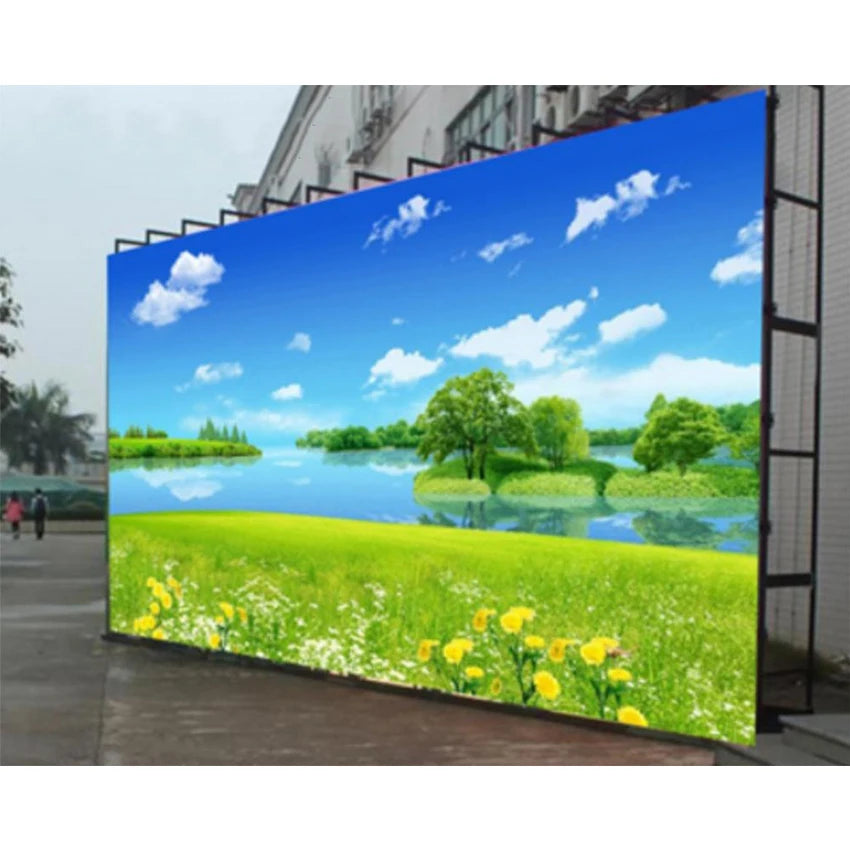

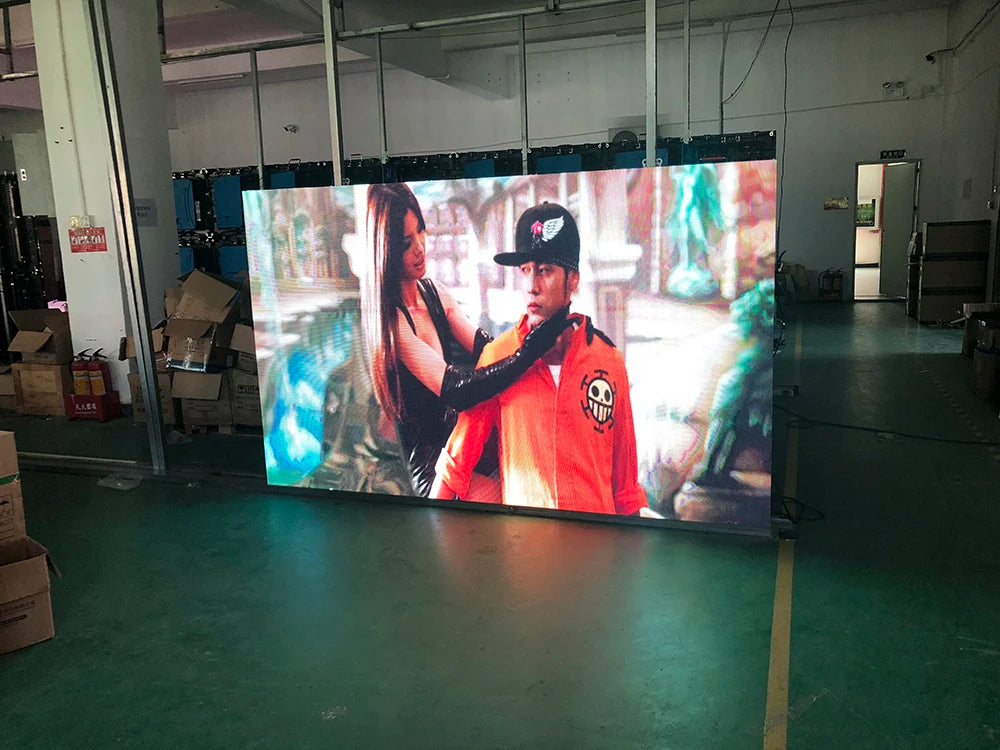

LED Display Case
The led display widely used for commercial advertising, stage rental, enterprise,school,traffic advertising, mobile truck advertising, sports stadium advertising etc.

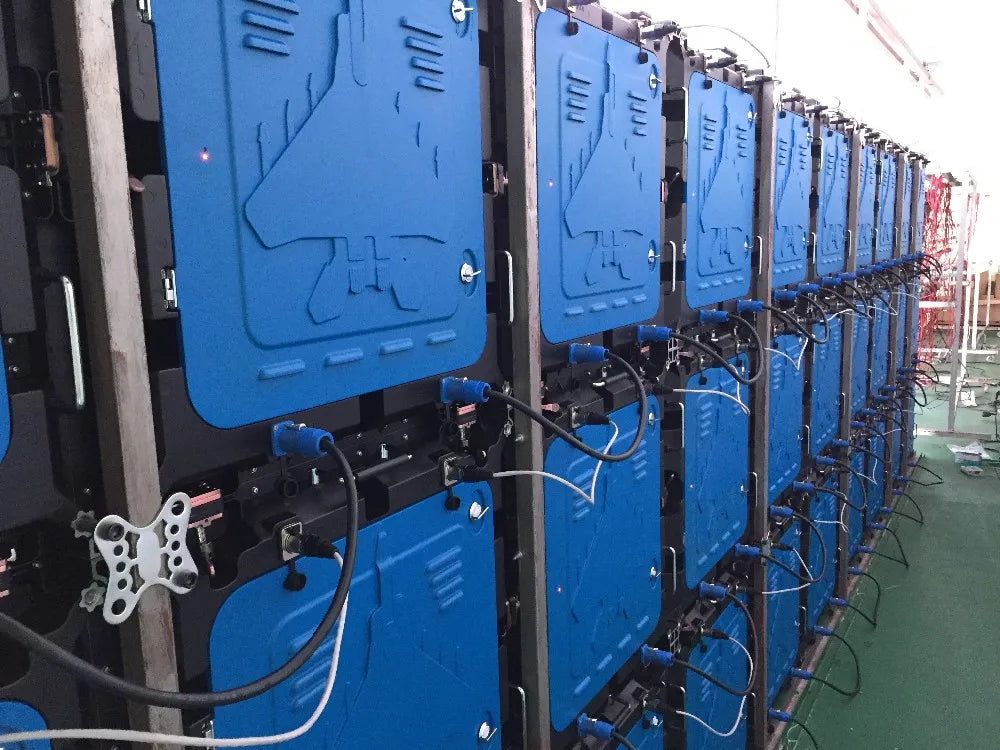

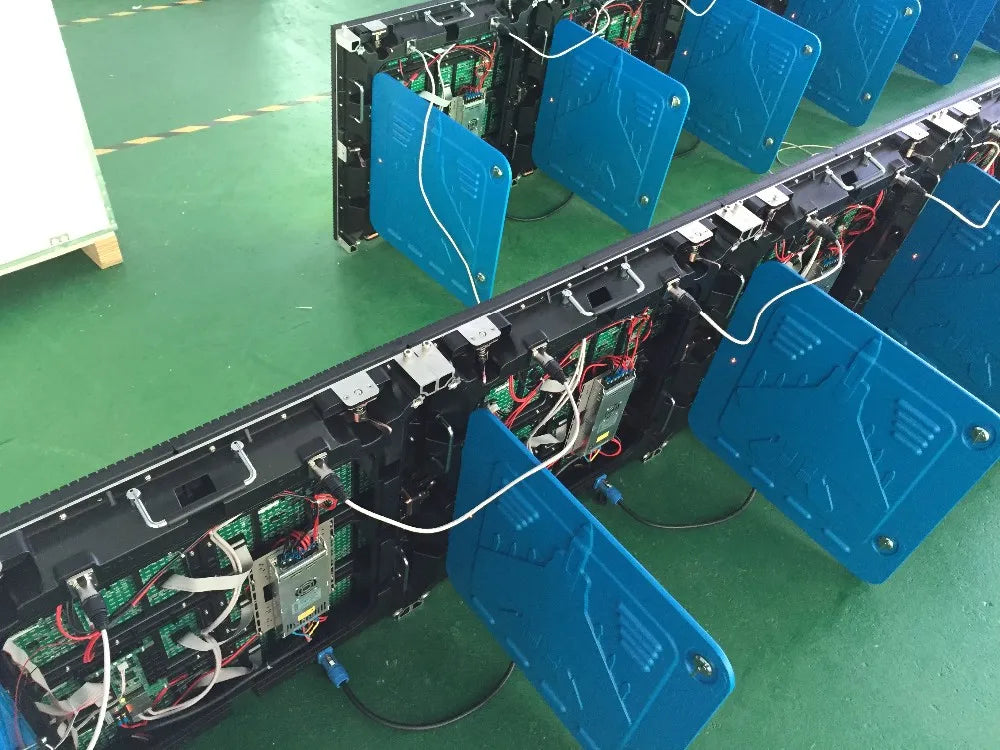

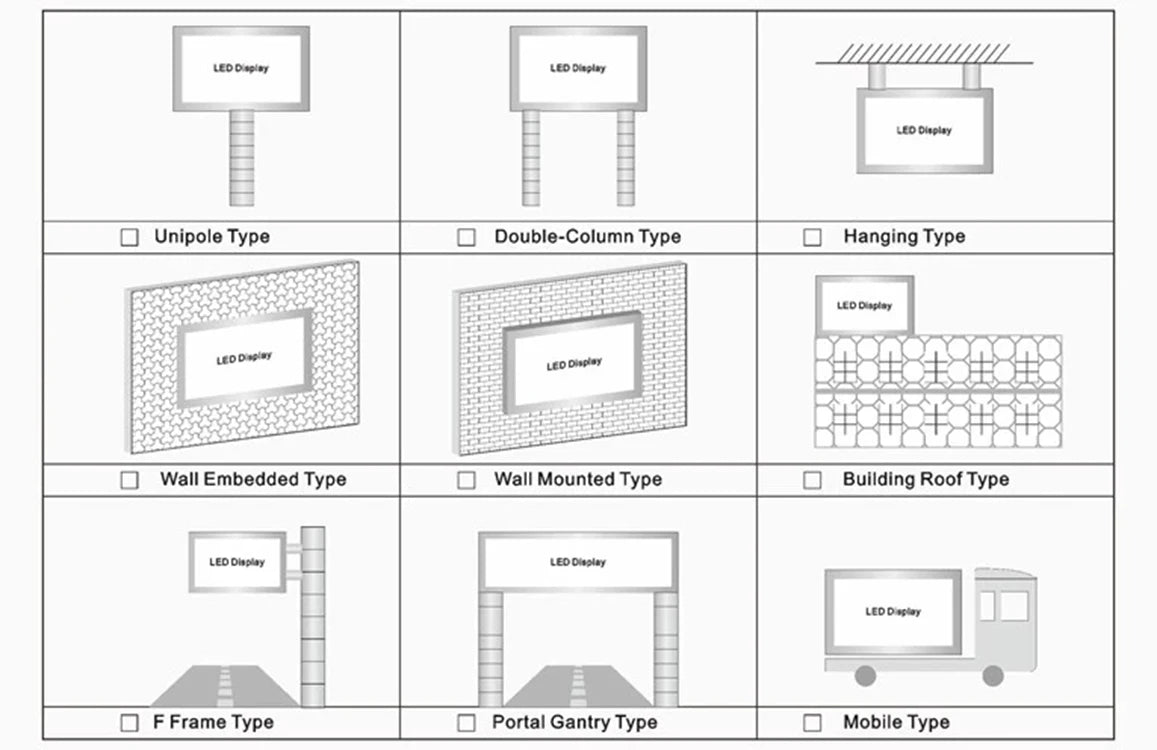

Production Process And Installation Type

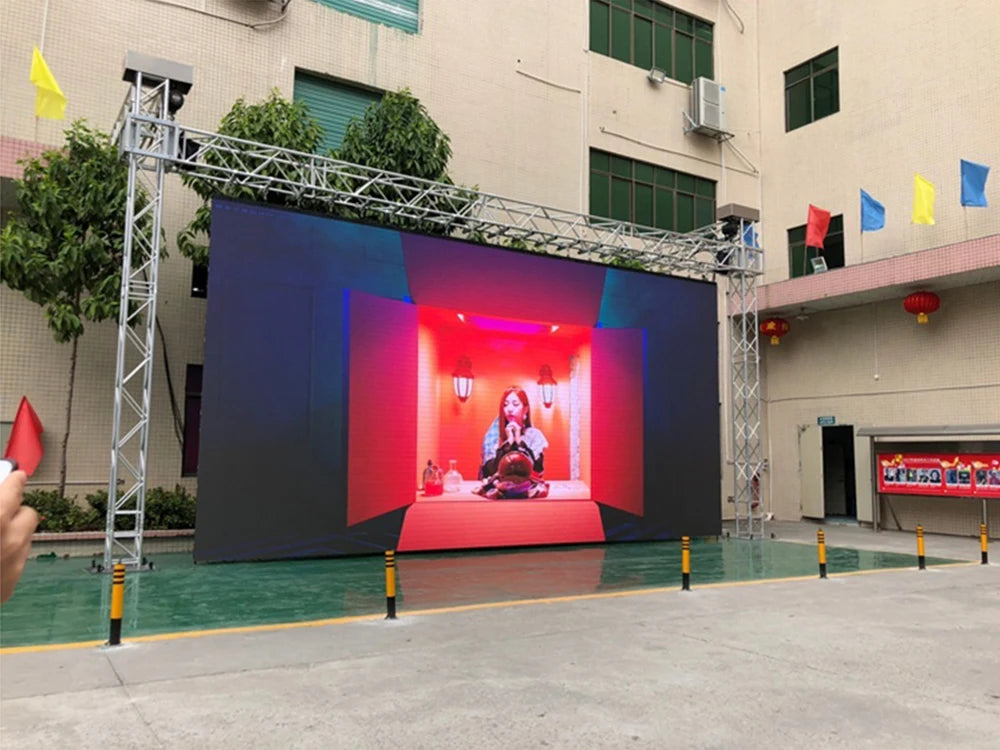

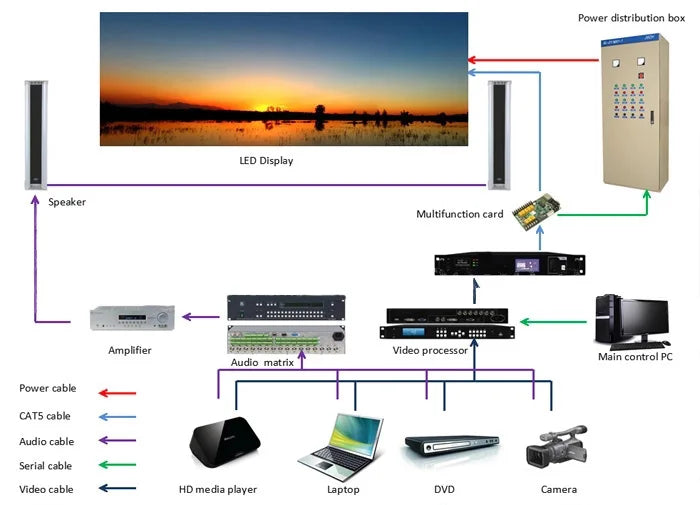

It can be fixed on the wall, by pole support on the street, on top of building, or for stage rental hanging to meet the request of concert stage background, event show, live broadcasting, live meeting, banquet, party etc, to show the content what you want, by video, graphics, animation etc, connect with PC computer or network,or can remote control with asynchronous system, Wifi control, 3G control.

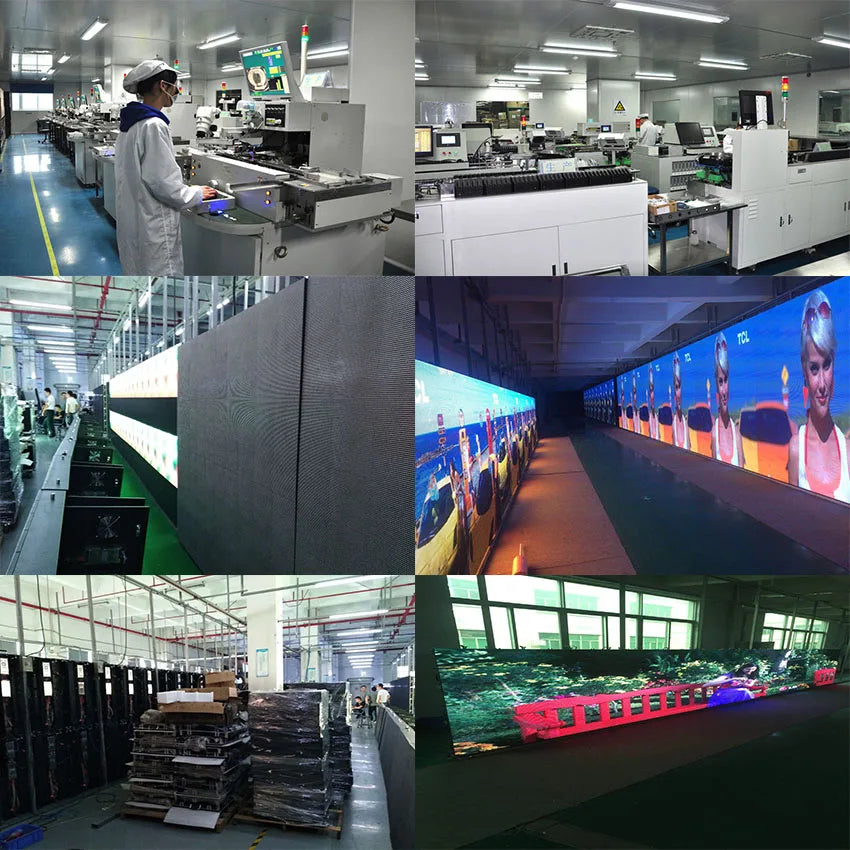

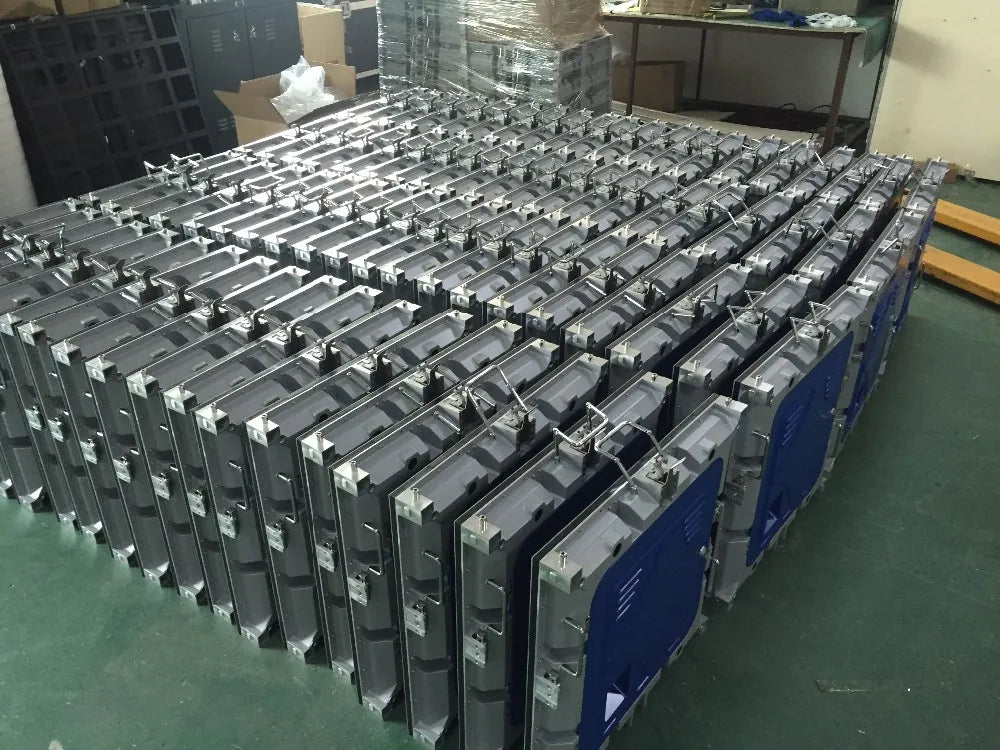

Our Factory
SZLIGHTALL Optoelectronics Co.,LTD is a high-tech integrated enterprise specializing in the development, production and sales of LED display with professional technical and development team, we product led display, led display module, led display control card, power for led display, and other led display accessories etc. There are more than 10 years’ experience, modern production and test equipment,perfect enterprise management system,high quality research and management team, high quality led display controller, all above make us become popular supplier.With our high quality and service our products have been exported to various countries and regions in Southeast Asia, Australia, Europe and America etc.
Our Certificate

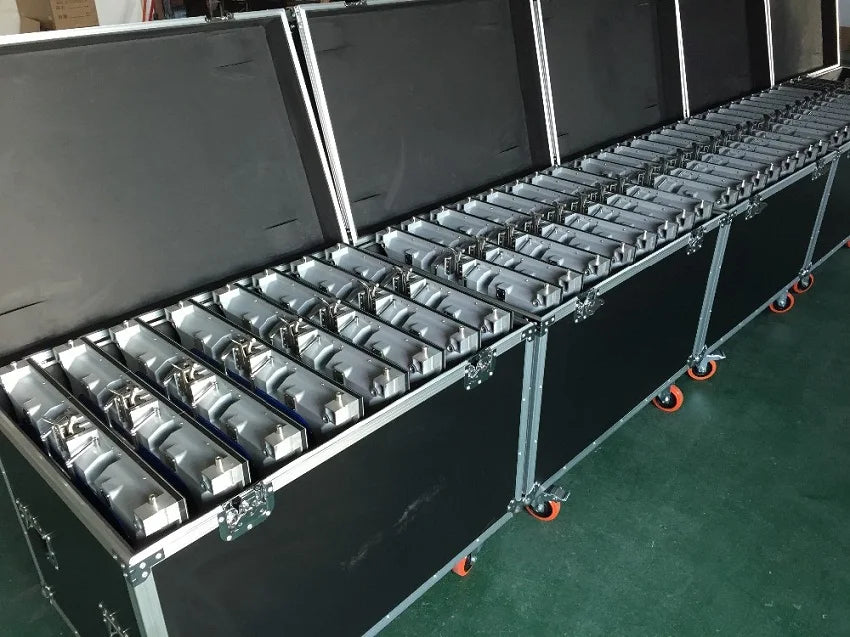

Packing & Delivery
Wooden case for free. We also supply flight case, if you need, please contact.

*Items are shipped from China via EMS, UPS, FedEx, DHL, TNT and airmail (with tracking number) etc. *If you want to deliver the led display board by sea pls tell us, we will quote you the ocean freight.

Contact Us
Our Service
1.We have a professional team who get back to your question in 24 hours.We can offer a set of solution for you project. 2.About after-sale service:We can intruct you how to using, adjust the screen and common maintenance pare pares. 3. If any quality problems occur within 3 years’ guarantee period,we offer provide free maintenance service.
