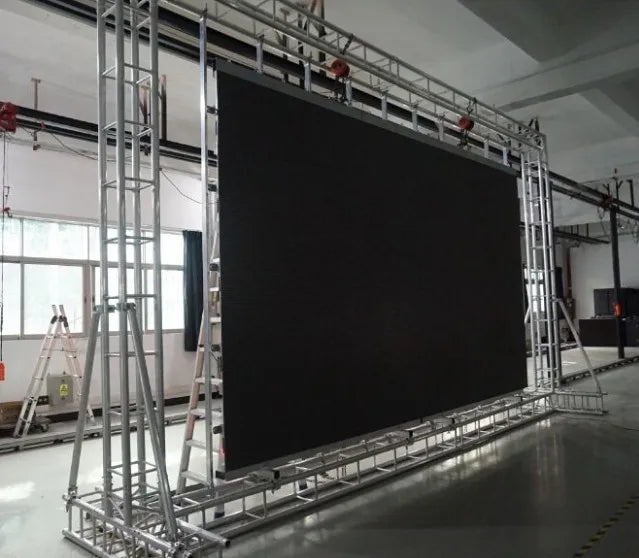

led screen Die-cast aluminum LED cabinet indoor led TV Panel 500mm*1000mm LED panel P3.9 indooe led display
led screen Die-cast aluminum LED cabinet indoor led TV Panel 500mm*1000mm LED panel P3.9 indooe led display
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: ASLLED
Origin: Mainland China
is_customized: Yes
Tube Chip Color: Full Color
Usage: Indoor
Model Number: p3.9
Display Function: VIDEO
Pixels: 3.9
Cabinet size: 500*1000mm
Brightness: 1800cd/sqm
Scan mode: 1/32 scan current
Certificate: CE ROHS FCC
Voltage: AC110V-240V 250W
Product name: 3.9 indoor led display
Warranty: 3 Years

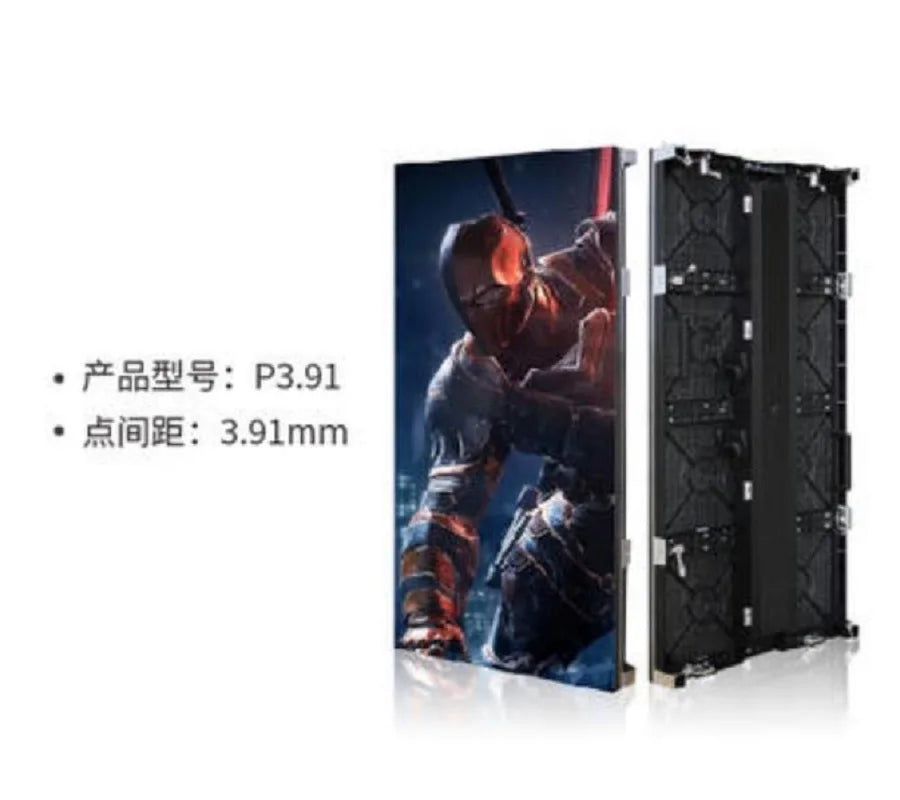

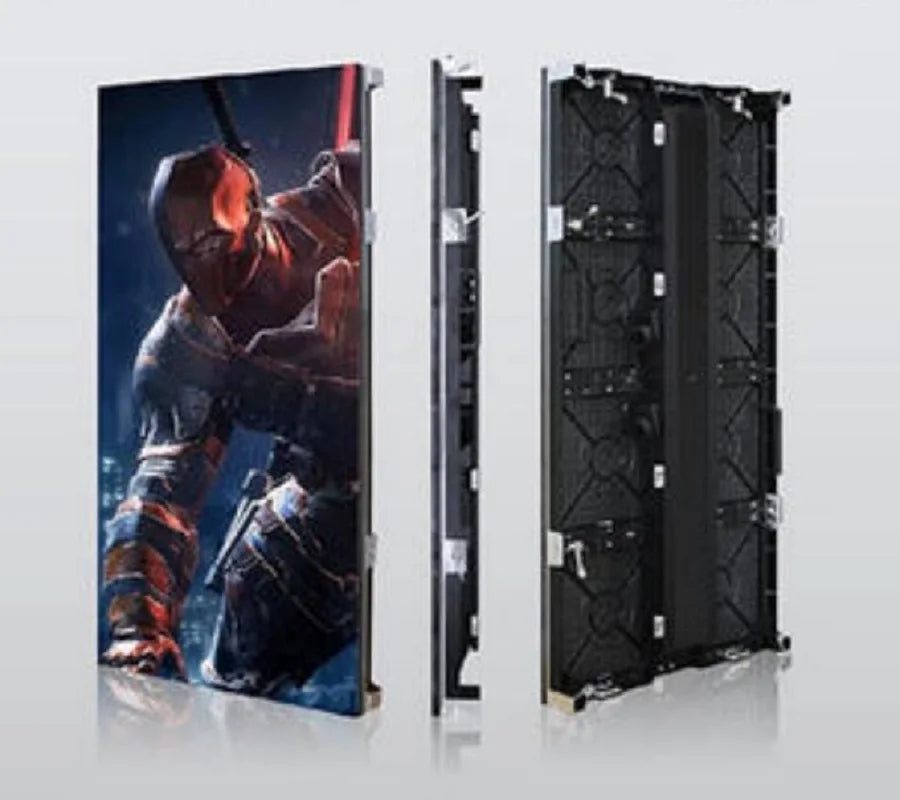

indoor Rental p3.9 LED display / die casting aluminum led display
Our Product line:

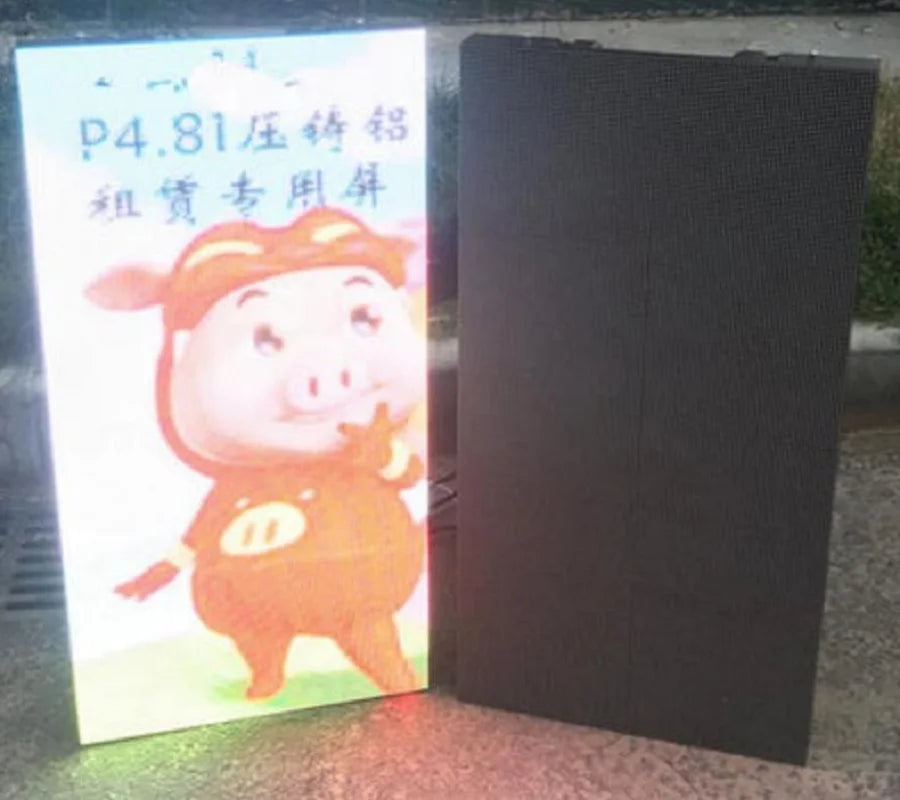

1) Rental led display:p2.6P3.91,P4.81 p5.95
2)Indoor LED display: P3,P4,P5,P6,P7.62,P8,P10
3) Outdoor LED display: P4,P5,P6,p5.95 P6.25,P8,.,P10 .
Features:
1.HD
2.Ultra thin and ultra light
3.Low attenuation,high gray level,good stability,anti-static

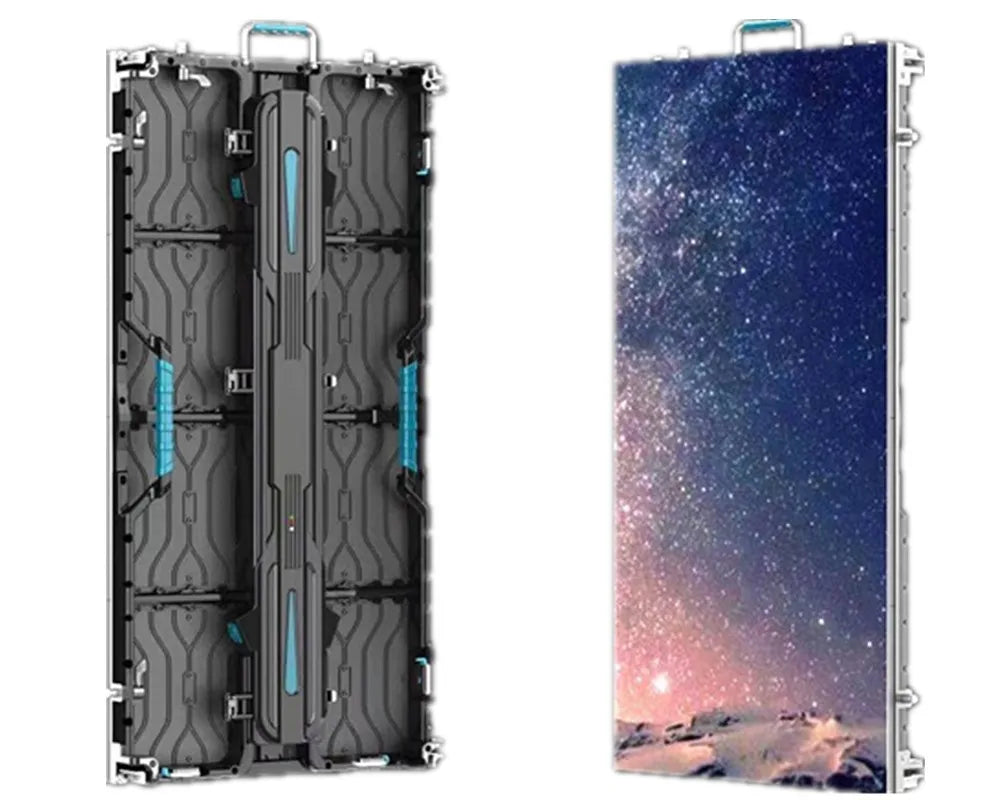

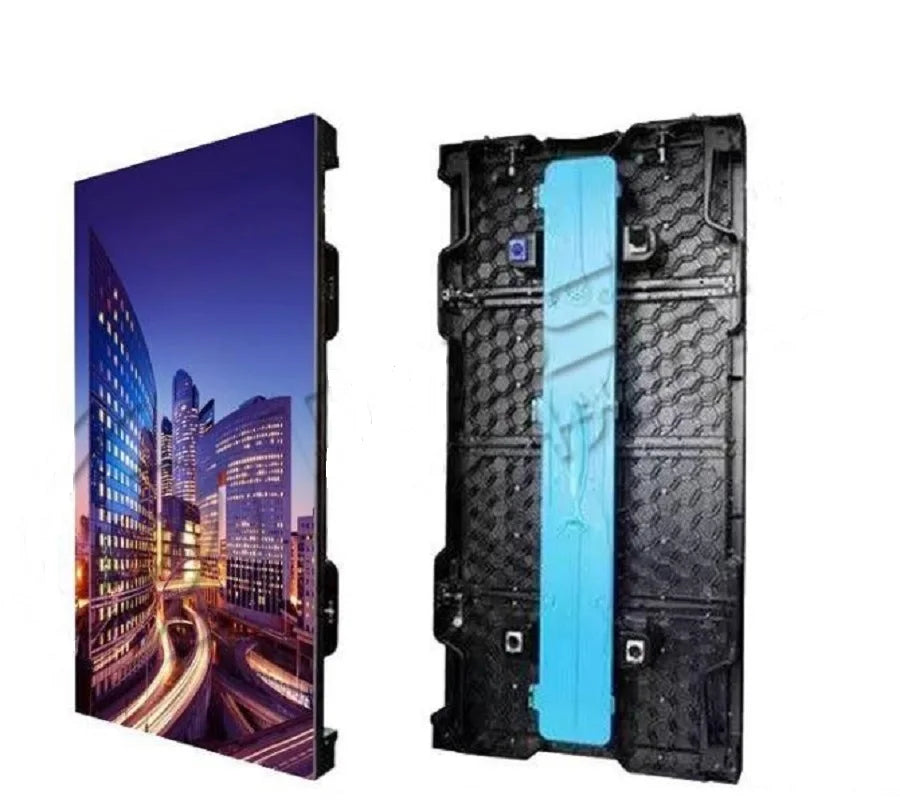

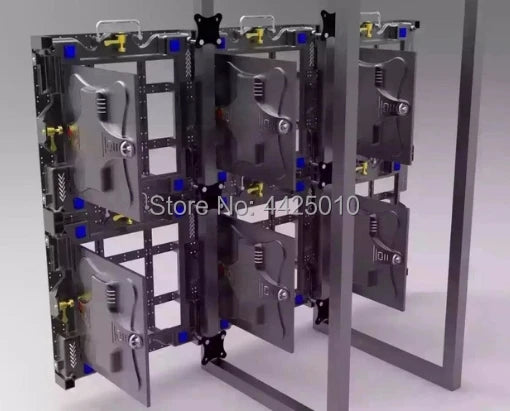

4.Entire die casting aluminum cabinet 500*500mm or 500*1000mm
Product parameters
Item |
P3.9 |
Chip |
Epstar |
Chip size |
Red 9 mil, Green 12. Blue 12mil |
Light type |
SMD |
Pixel Pitch |
3.9 mm |
Module Size |
250mmX250mm |
Module Resolution |
64*64 (dots) |
Density of pixel |
65536dots/m2 |
Pixel configuration |
1R1G1B |
Red wavelength |
625±2nm |
Green wavelength |
525±2nm |
Blue wavelength |
470±2nm |
Colors |
16777216 |
Best viewing distance |
≥2m |
viewing angle |
120°/90° |
Maximum power consumption |
22W |
Brightness |
6500cd/m2 |
Gray scale |
14bits per color |
Color temperature |
6500k |
Control method |
Synchronization or Asynchronization |
Driving method |
1/32 scanning |
Frame frequency |
60Hz |
Refresh frequency |
≥600Hz |
Working Voltage |
DC5V |
IP grade |
IP45 |
MTBF |
More than 8000hours |
Life Span |
80,000hours |

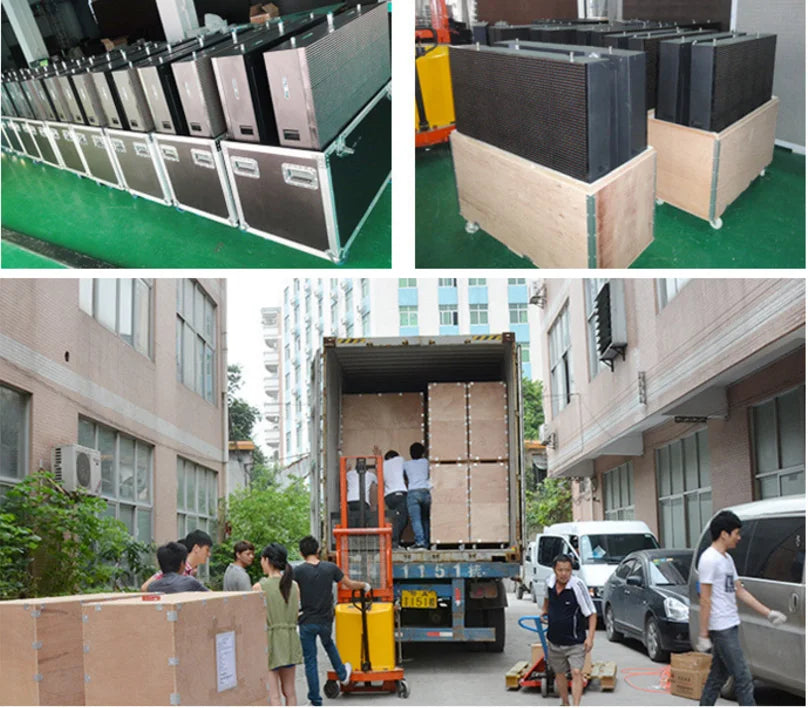

For die-casting aluminum cabinet of LED rental stage display screen, we use flight case to pack.
One wooden case include 2 cabinets, one flight case include 6 die casting aluminum cabinets
By air or by sea! FOB or CIF

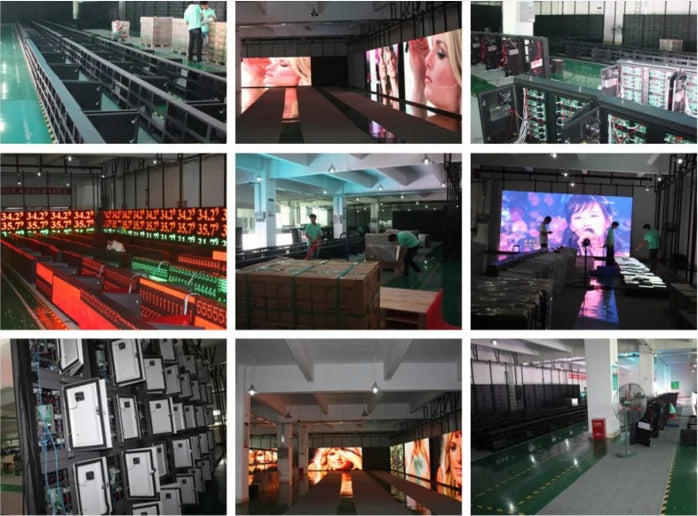

ASLLED Co., Ltd. was founded in June 2002 of which headquarter is located in PingHu High-tech Development Zone of ShenZhen China.ASlled specialized in LED display. From manufacturing, R&D to engineering installation, we provide one-stop service.
At present,annual production of LED display module amounts to 300 thousand and still being sustainable cincreasing .
Our products have obtained silver medal of Chinese Famous Brand Exposition,GuangDong Province Famous Brand Product and ShenZhen Famous Brand.
And our company has passed ISO9001 quality system certificate; products have passed CCC, CE, RoHS, UC certificate.
ASLLED has won wide trust and good repute due to its stable quality, reasonable price and professional service.
In the path of development, we have realized that it is important to regard customer as the center.
We will as always carry on the spirit of enterprise- dedication, teamwork, innovation.
Welcome to ASLLED TECHNOLOGY!
