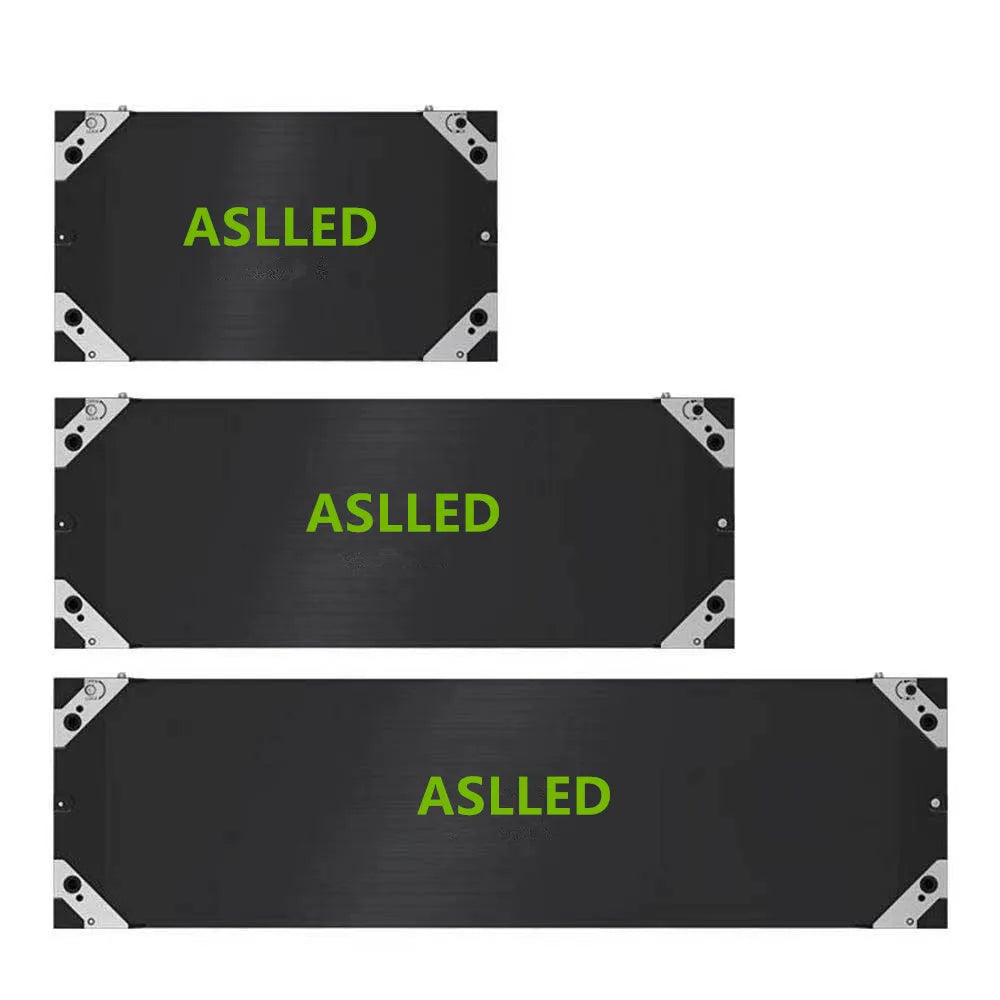

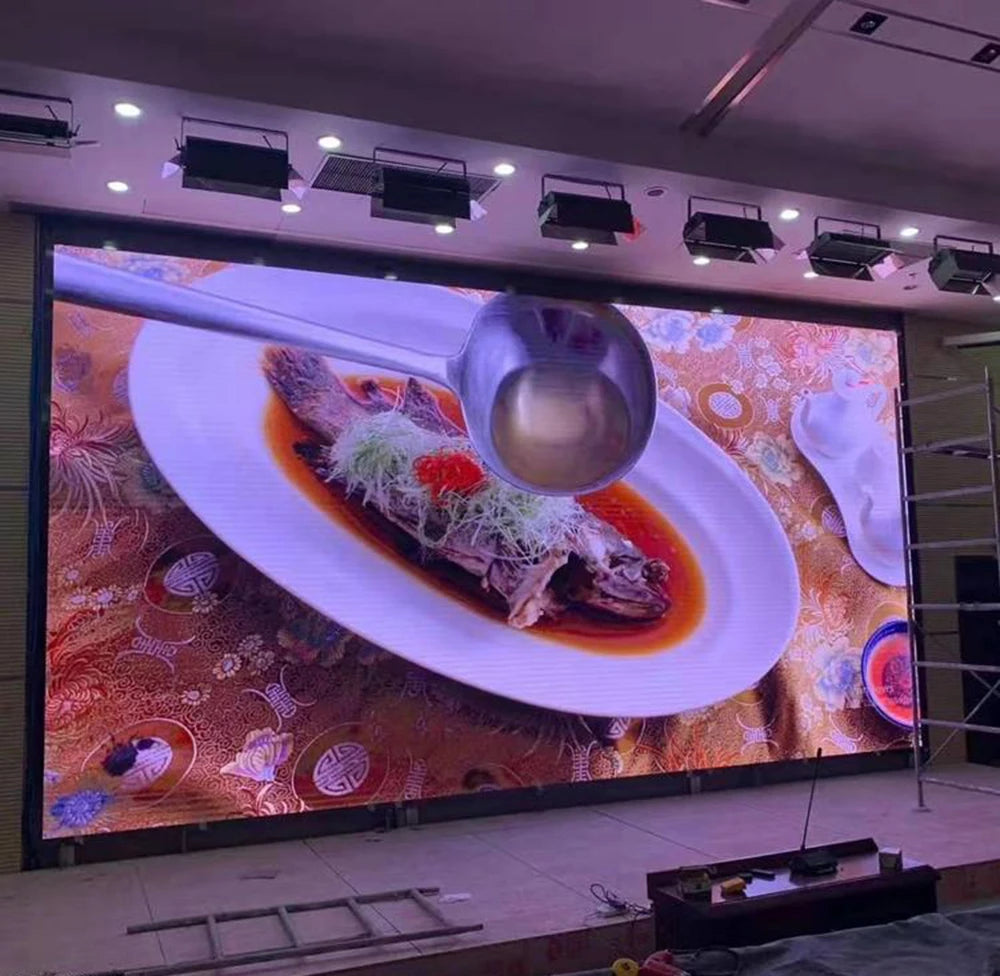

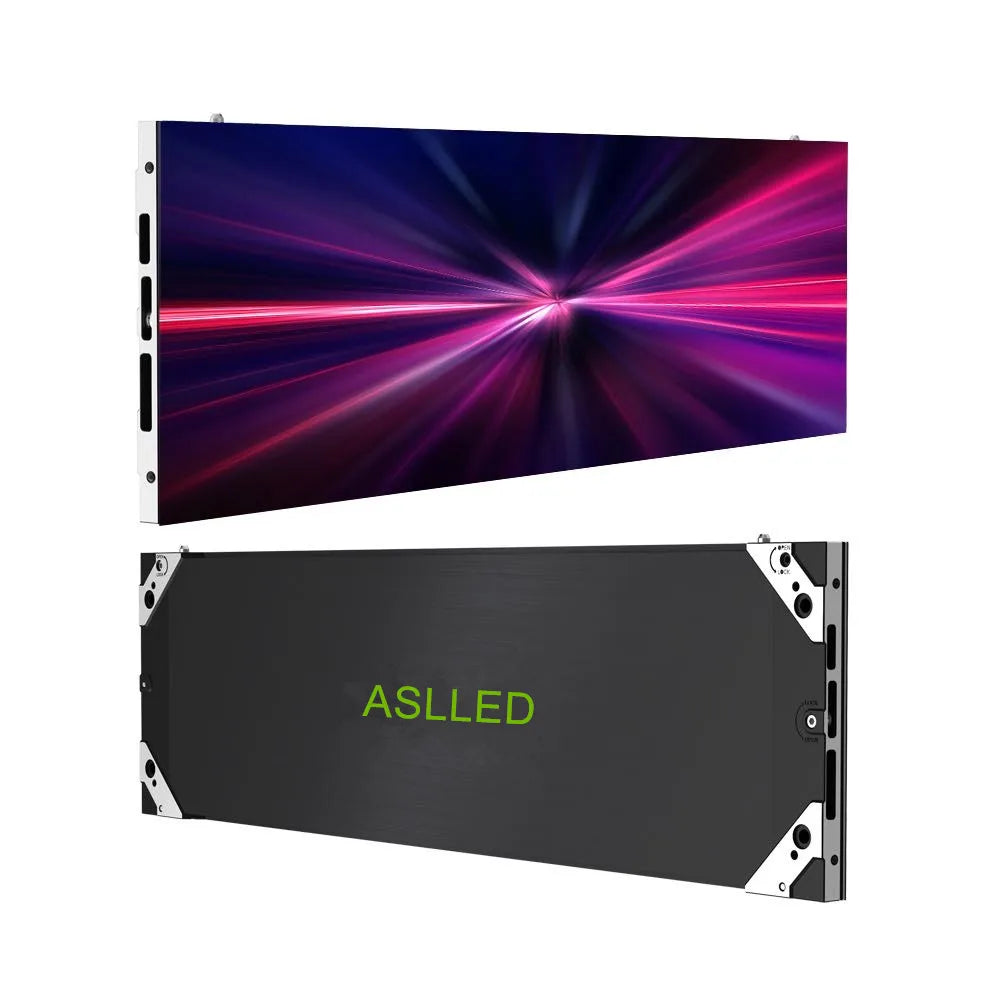

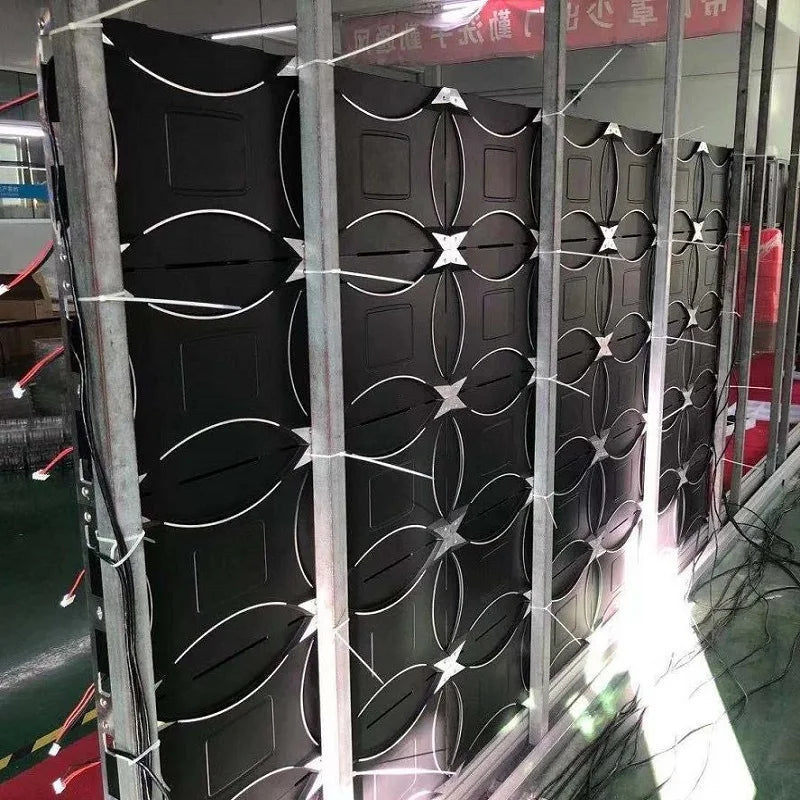

indoor P3.9 250*1000MM The panels offer full front serviceability Install LED screen on indoor wall
indoor P3.9 250*1000MM The panels offer full front serviceability Install LED screen on indoor wall
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: ASLLED
Origin: Mainland China
is_customized: Yes
Tube Chip Color: Full Color
Usage: Indoor
Model Number: Front p3.9
Display Function: VIDEO
Pixels: 3.9
Cabinet size: 250*1000mm
Brightness: 1800cd/sqm
Scan mode: 1/32 scan current
Certificate: CE ROHS FCC
Voltage: AC110V-240V 200W
Product name: P3.9 indoor Front led display
Warranty: 3 Years

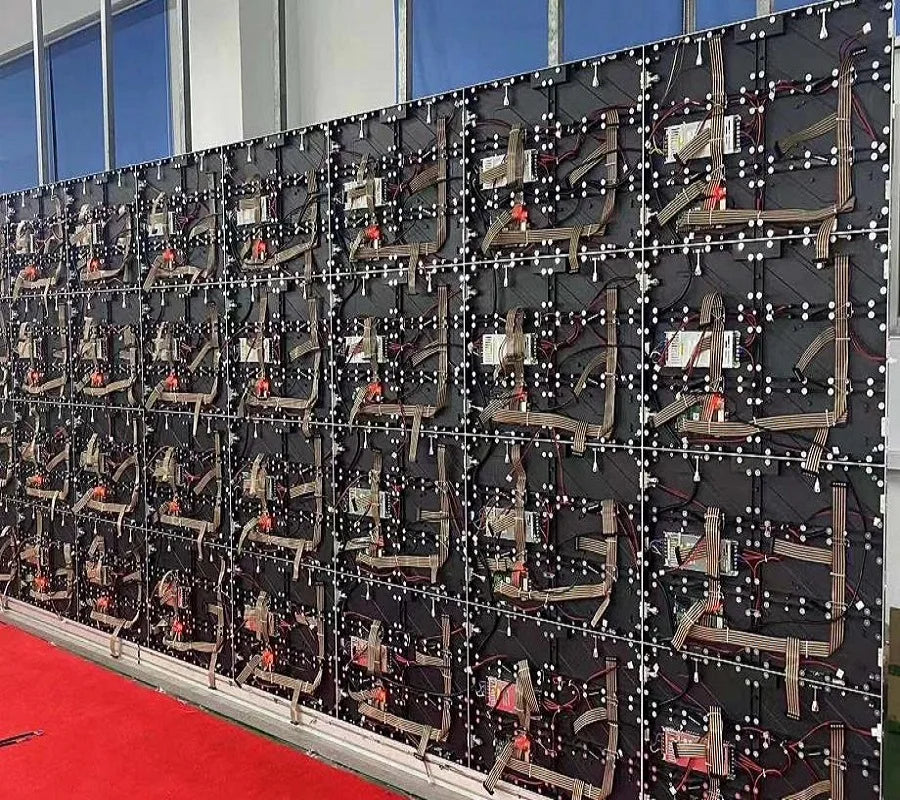

Indoor Rental P3.9 LED display , future serviceability that never requires access to the rear of the screen once installed.

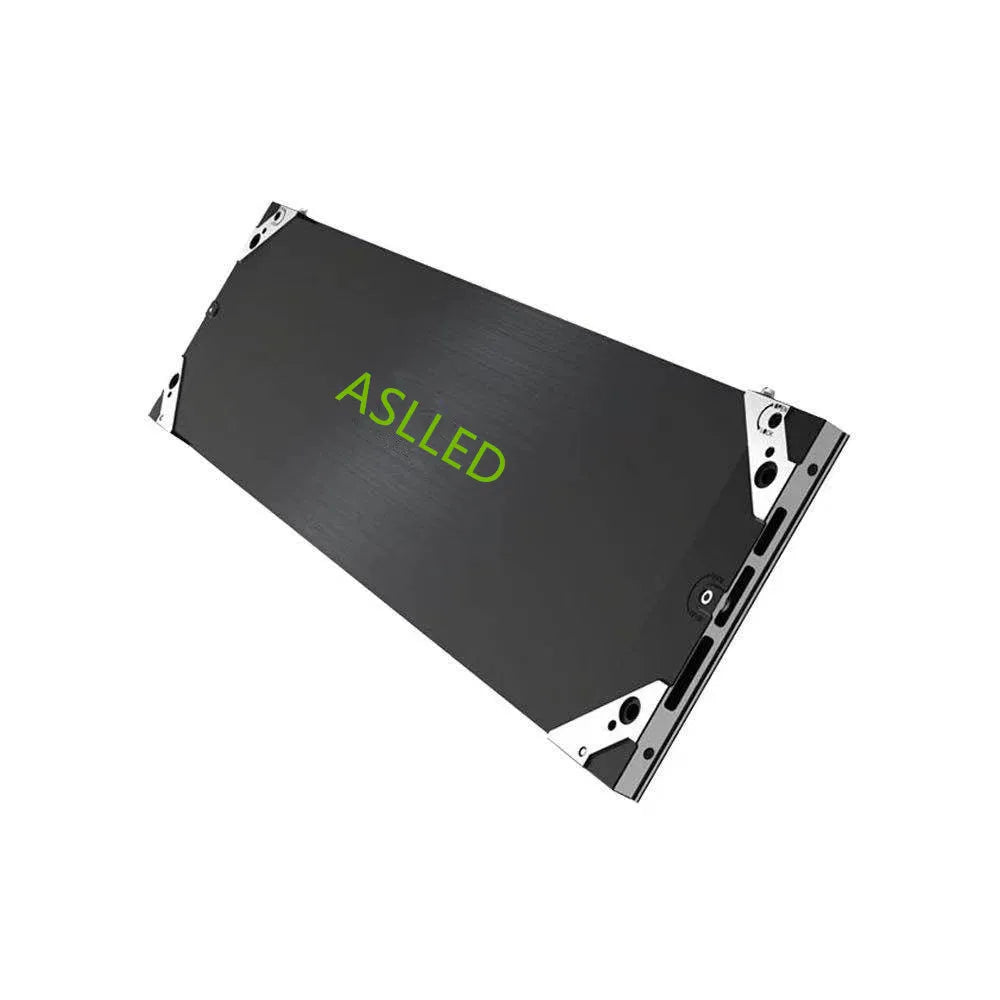

die casting aluminum led display 3.9mm
Our Product line:
1) Rental led display:P3.9p2.5p2.6
2)Indoor LED display: P3,P4,P5,P6,P7.62,P8,P10
3) Outdoor LED display: P4,P5,P6,P6.25,P8,P8.9,P10 ,P20
Features:
1.HD
2.Ultra thin and ultra light
3.Low attenuation,high gray level,good stability,anti-static
4.Entire die casting aluminum cabinet 480*480mm
Product parameters
Item |
P3.9 |
Chip |
Epstar |
Chip size |
Red 9 mil, Green 12. Blue 12mil |
Light type |
SMD |
Pixel Pitch |
3.9mm |
Module Size |
250mmX250mm |
Module Resolution |
64X 64 (dots) |
Density of pixel |
65536dots/m2 |
Pixel configuration |
1R1G1B |
Red wavelength |
625±2nm |
Green wavelength |
525±2nm |
Blue wavelength |
470±2nm |
Colors |
16777216 |
Best viewing distance |
≥2m |
viewing angle |
120°/90° |
Maximum power consumption |
22W |
Brightness |
1800cd/m2 |
Gray scale |
14bits per color |
Color temperature |
6500k |
Control method |
Synchronization or Asynchronization |
Driving method |
1/32 scanning |
Frame frequency |
60Hz |
Refresh frequency |
≥600Hz |
Working Voltage |
DC5V |
IP grade |
IP45 |
MTBF |
More than 8000hours |
Life Span |
80,000hours |

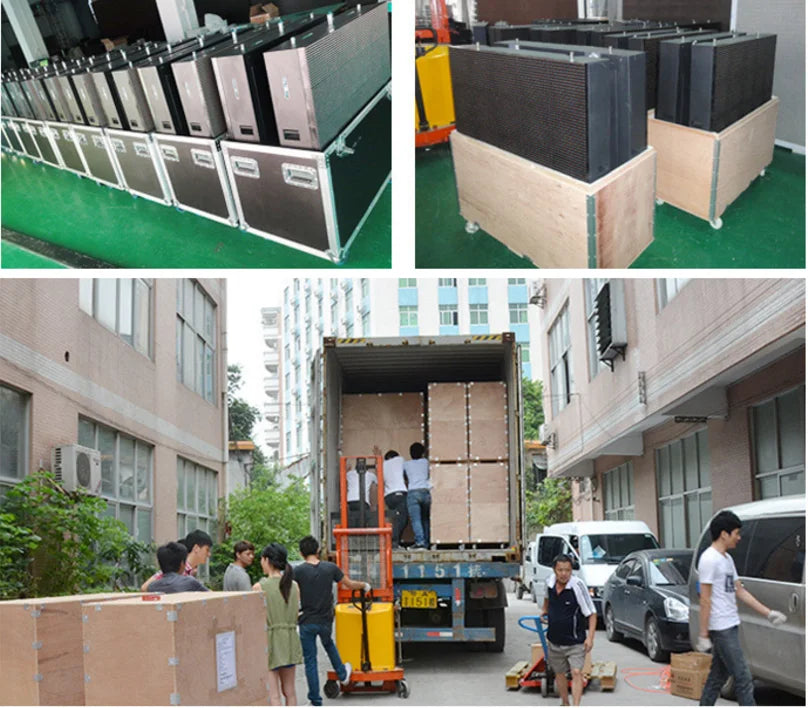

For die-casting aluminum cabinet of LED rental stage display screen, we use flight case to pack.
One wooden case include 2 cabinets, one flight case include 6 die casting aluminum cabinets
By air or by sea! FOB or CIF
ASLLED Co., Ltd. was founded in June 2002 of which headquarter is located in PingHu High-tech Development Zone of ShenZhen China.ASlled specialized in LED display. From manufacturing, R&D to engineering installation, we provide one-stop service.
At present,annual production of LED display module amounts to 300 thousand and still being sustainable cincreasing .
Our products have obtained silver medal of Chinese Famous Brand Exposition,GuangDong Province Famous Brand Product and ShenZhen Famous Brand.
And our company has passed ISO9001 quality system certificate; products have passed CCC, CE, RoHS, UC certificate.
ASLLED has won wide trust and good repute due to its stable quality, reasonable price and professional service.
In the path of development, we have realized that it is important to regard customer as the center.
We will as always carry on the spirit of enterprise- dedication, teamwork, innovation.
Welcome to ASLLED TECHNOLOGY!
