SPECIFICATIONS

Brand Name: NoEnName_Null

Certification: none

Origin: Mainland China

Hign-concerned Chemical: None

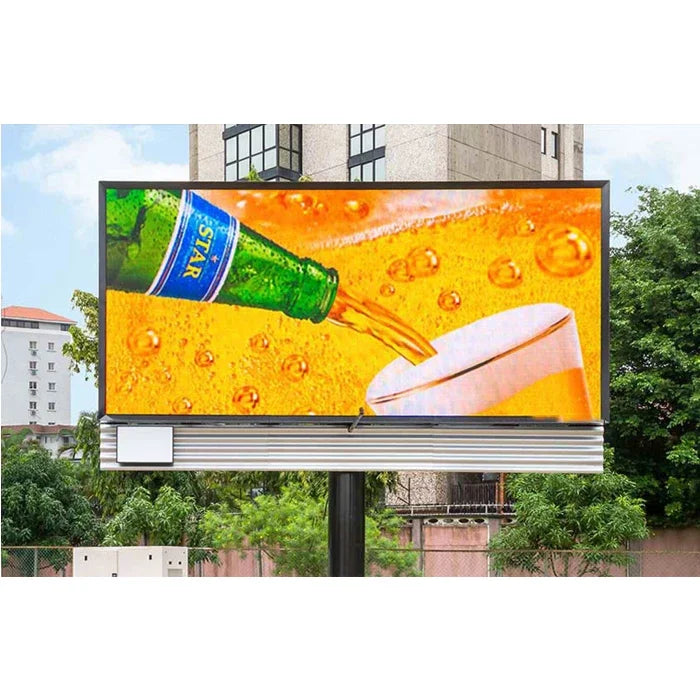

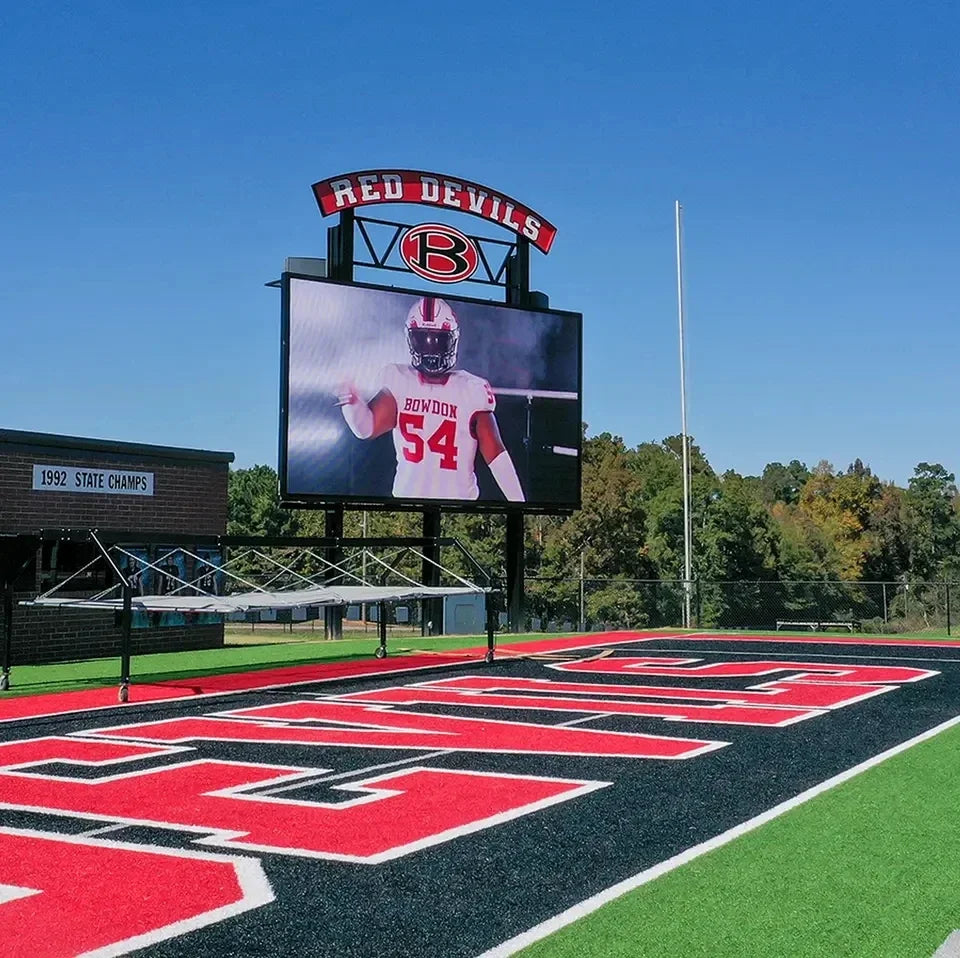

Application: Outdoor mobile advertising

Type: LED

Color: Full color

Panel Size: 960*960mm, 960*960mm

Supplier Type: ODM, OEM

Media Available: Photo

Place of Origin: Guangdong, China

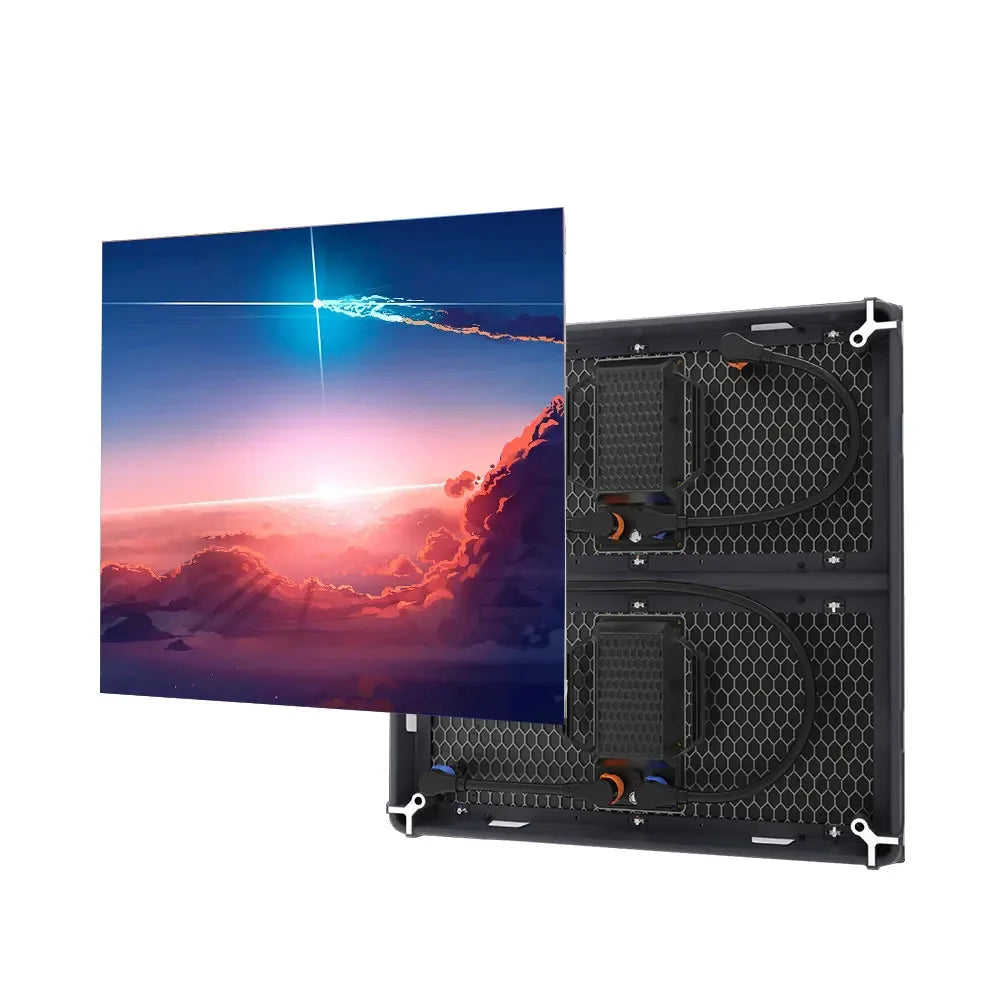

Model Number: Fixed led screen

Brand Name: Sunrise

use: advertising publish, exhibition hall, subway, elevator

Function: SDK

Pixel Pitch: 8mm, 8mm

Specification: Video Wall

Brightness: 5500~6000cd/㎡, 5500~6000cd/㎡, 5500~6000cd/㎡

pixel density: 15625pixel/㎡, 15625pixel/㎡

IP Rating: IP65, IP65

Resolution: 3380Hz

item name: Fixed led screen

Cabinet material: Aluminum

Weight: 25/45Kg

Refresh rate: 3380Hz

IP level: IP65

Warranty: 2 years or above

Certificate: TUV, CE, ROHS, ETL, FCC

Lifespan: 100000 hours(about 11 years)

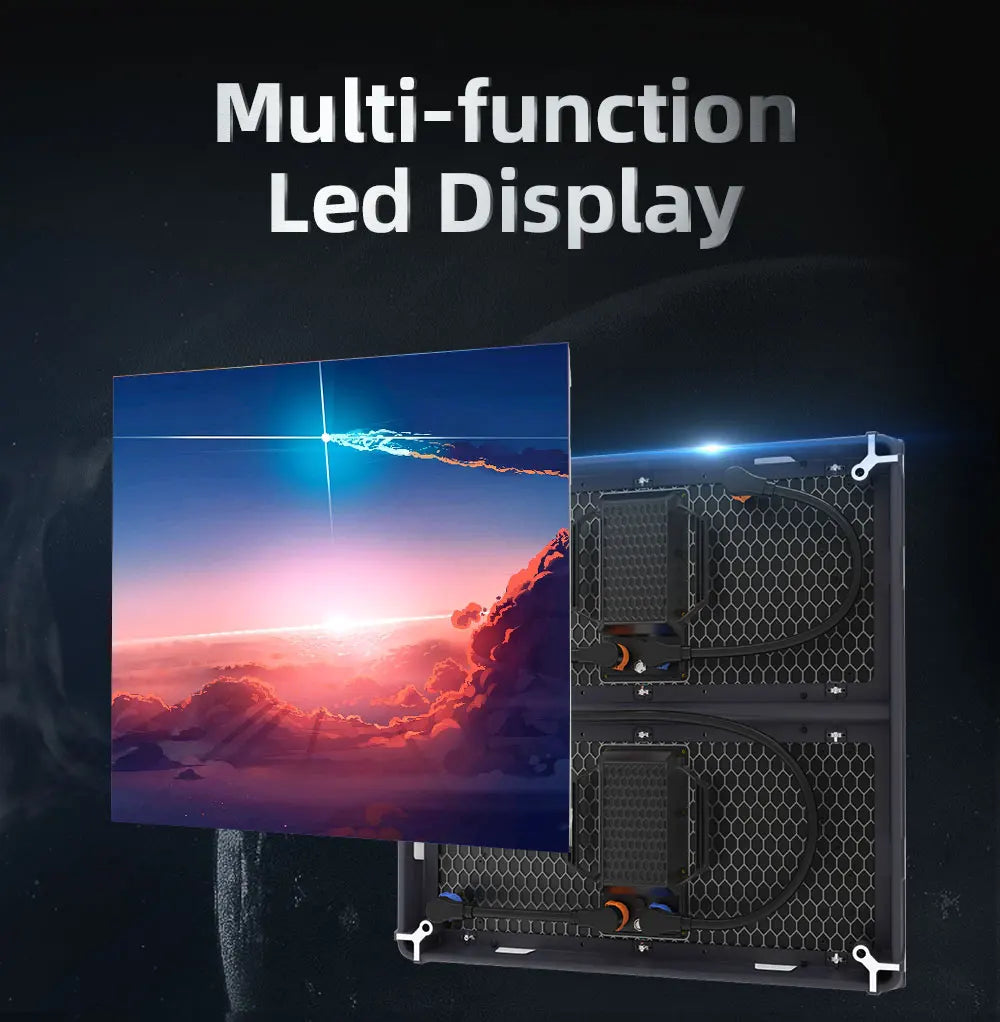

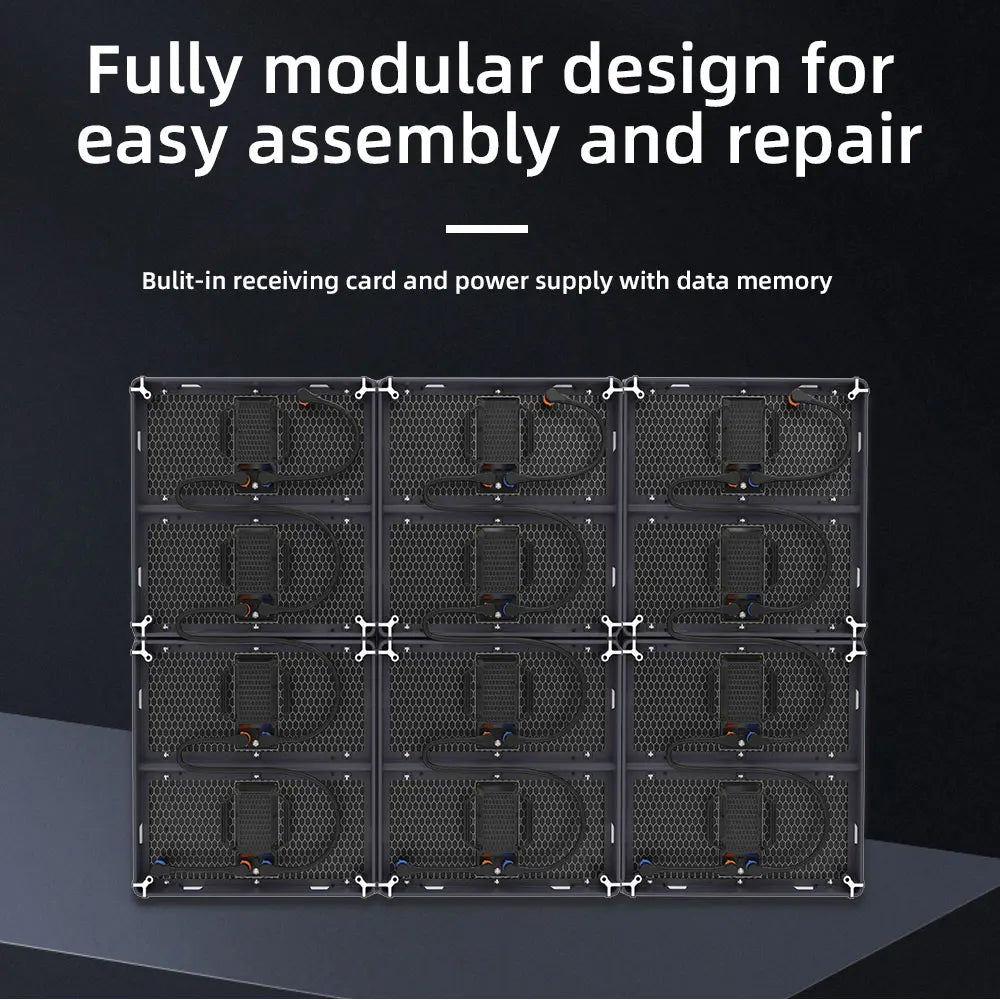

Cabinet size: 960*960mm



Module Number	PH4.233	PH6.35	PH7.62	PH9.525
Pixel Pitch	4.233mm	6.35mm	7.62mm	9.525mm
Led Lamp	SMD1921	SMD2727	SMD2727	SMD2727
Physical Density	55808 pixel/m²	24800 pixel/m²	17222pixel/m²	11022 pixel/m²
Led Arrangement	3 in 1 SMD				3 in 1 SMD	3 in 1 SMD	3 in 1 SMD
Module Resolution	144 x 72 pixels	96 x 96 pixels	80 x 40 pixels	64 x 32 pixels
Module Dimensions	2 feet x 1 feet				2 feet x 1 feet	2 feet x 1 feet	2 feet x 1 feet
Cabinet Resolution	144 x 144 pixels	96 x 96 pixels	80 x 80 pixels	64 x 64 pixels
Cabinet Dimensions	2 feet x 2 feet				2 feet x 2 feet	2 feet x 1 feet	2 feet x 2 feet
Cabinet Weigh	12 kg				12 kg	12 kg	12 kg
Brightness	6500-10000 nits				6500-10000 nits	6500-10000 nits	6500-10000 nits
Max Power Consumption	630 W/m 2				630 W/m 2	630 W/m 2	630 W/m 2
Ave Power Consumption	210 W/m 2				210 W/m 2	210 W/m 2	210 W/m 2
Viewing Angle	160°（W）160°（H）				160°(W)160°(H)
Operating Power source	110-240V 50-60Hz
Operating Power temperature	-10℃~+50℃
Refresh Rate	1920-3840Hz
IP Rating	IP67
Signal Input Source	Composite， S-video, Component HDMI, SDI, SDI, HD, VGA
Certificate	ETL, FCC, CCC, RoHS, CE
