New product launch, exclusive version of splicing wall controller!

Reminder:
In order to provide you with better service and ensure that the product can fully meet your needs, it is recommended that you consult us before purchasing to avoid the trouble of return caused by purchase errors. All konsen employees will serve you wholeheartedly.

Item Introduction:
Brand new and high quality,buy with confidence!

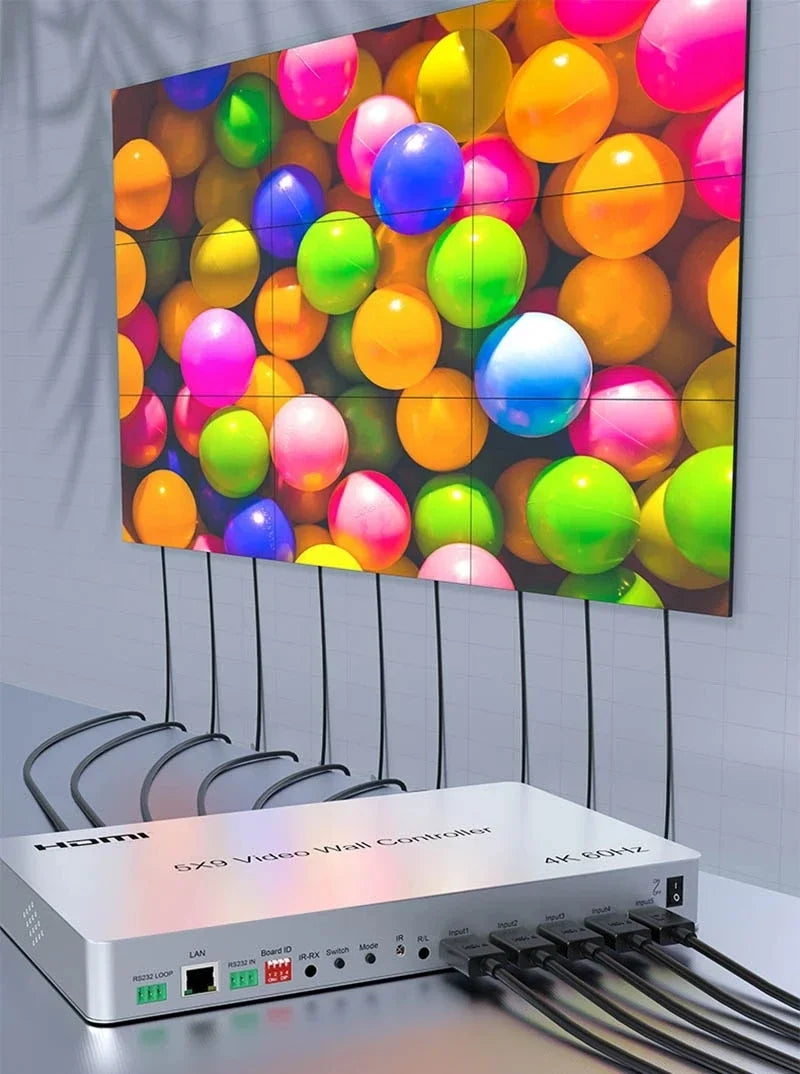

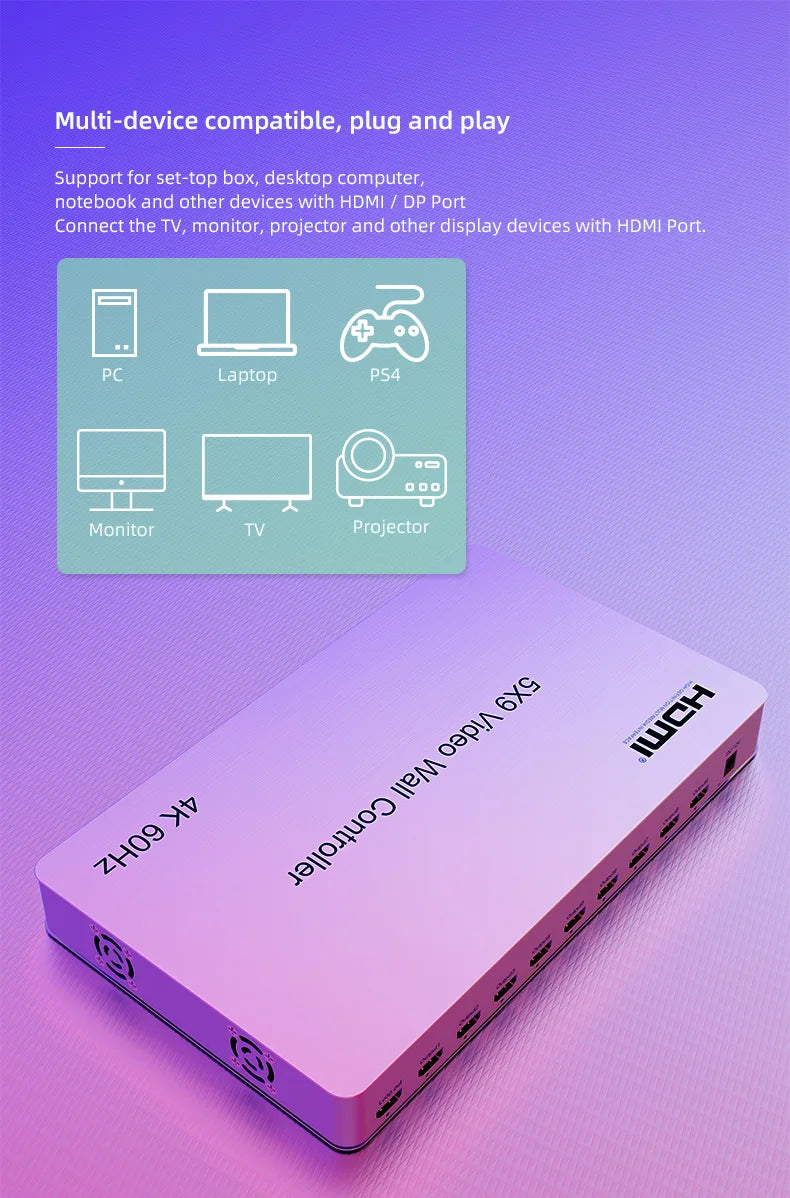

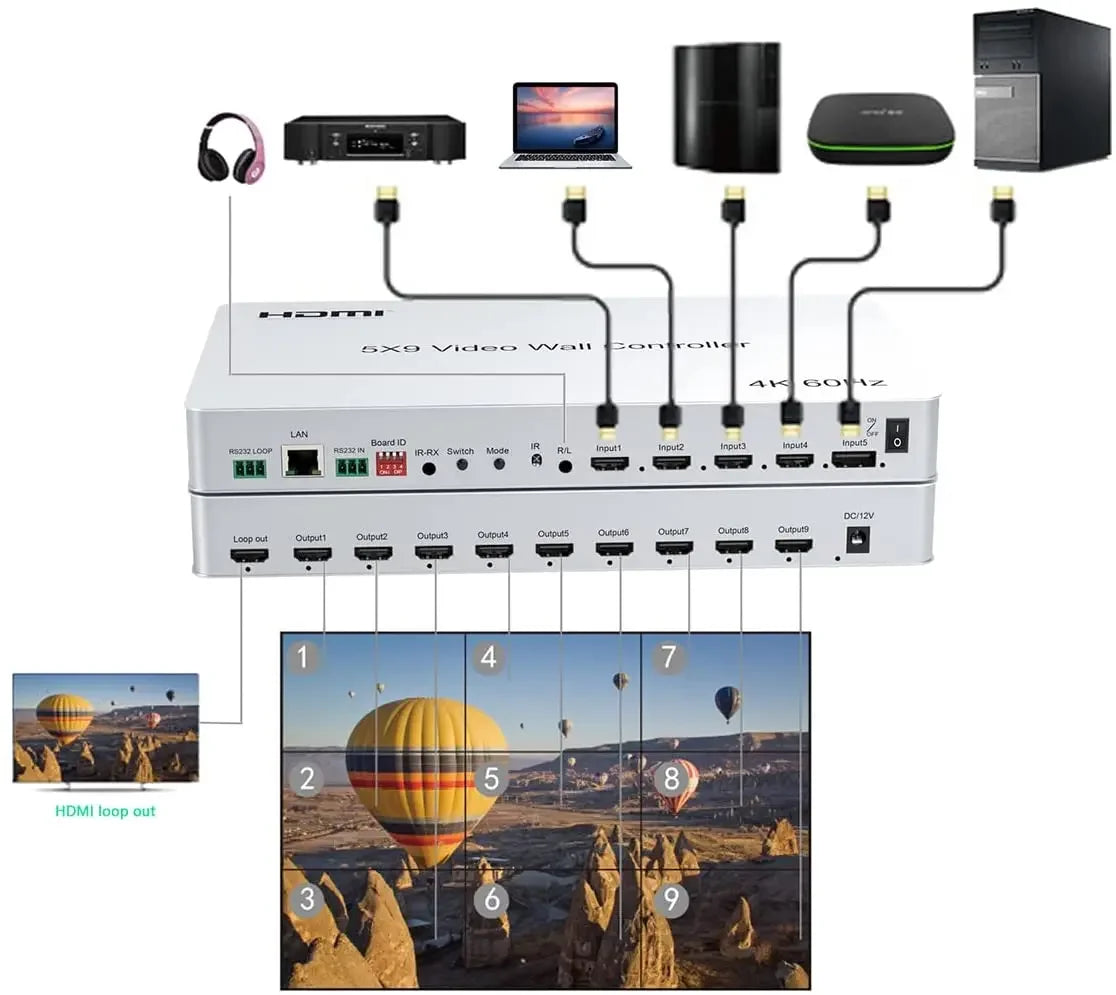

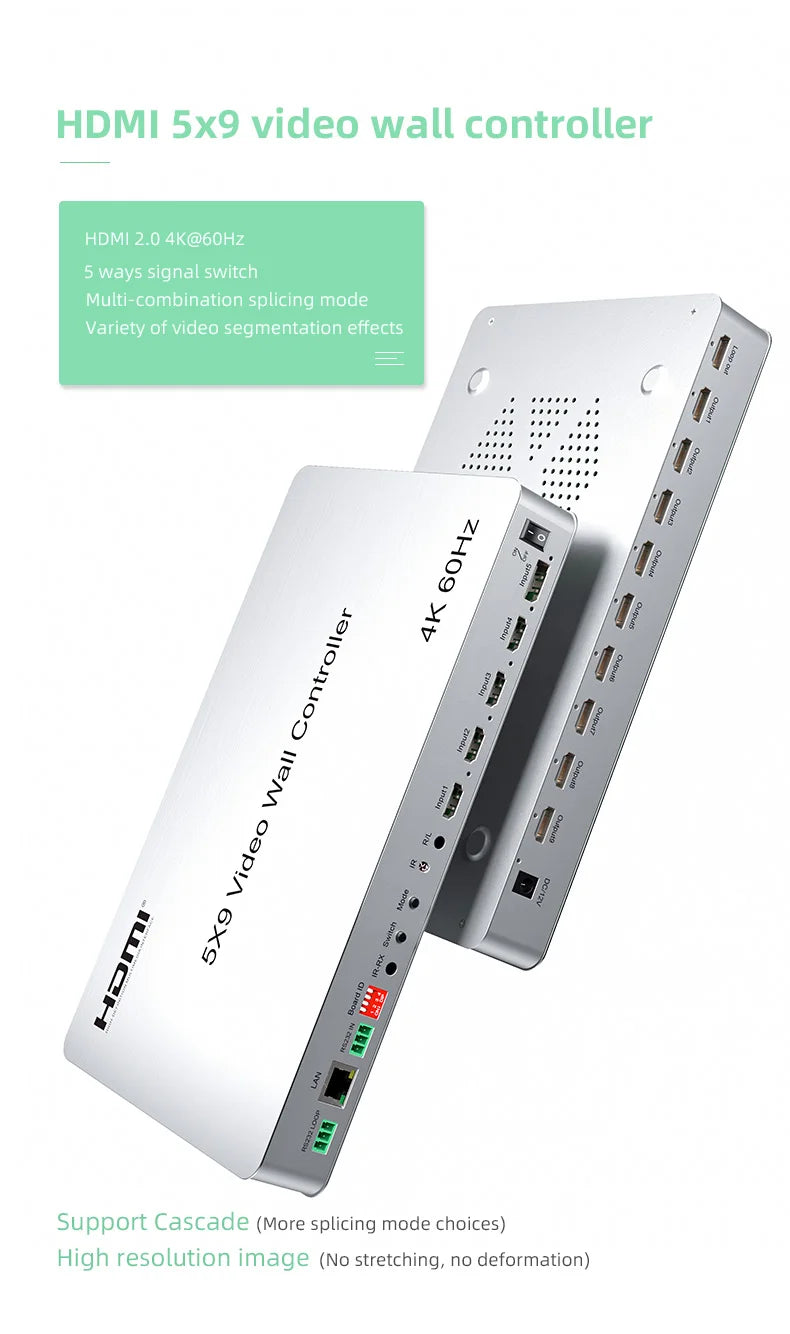

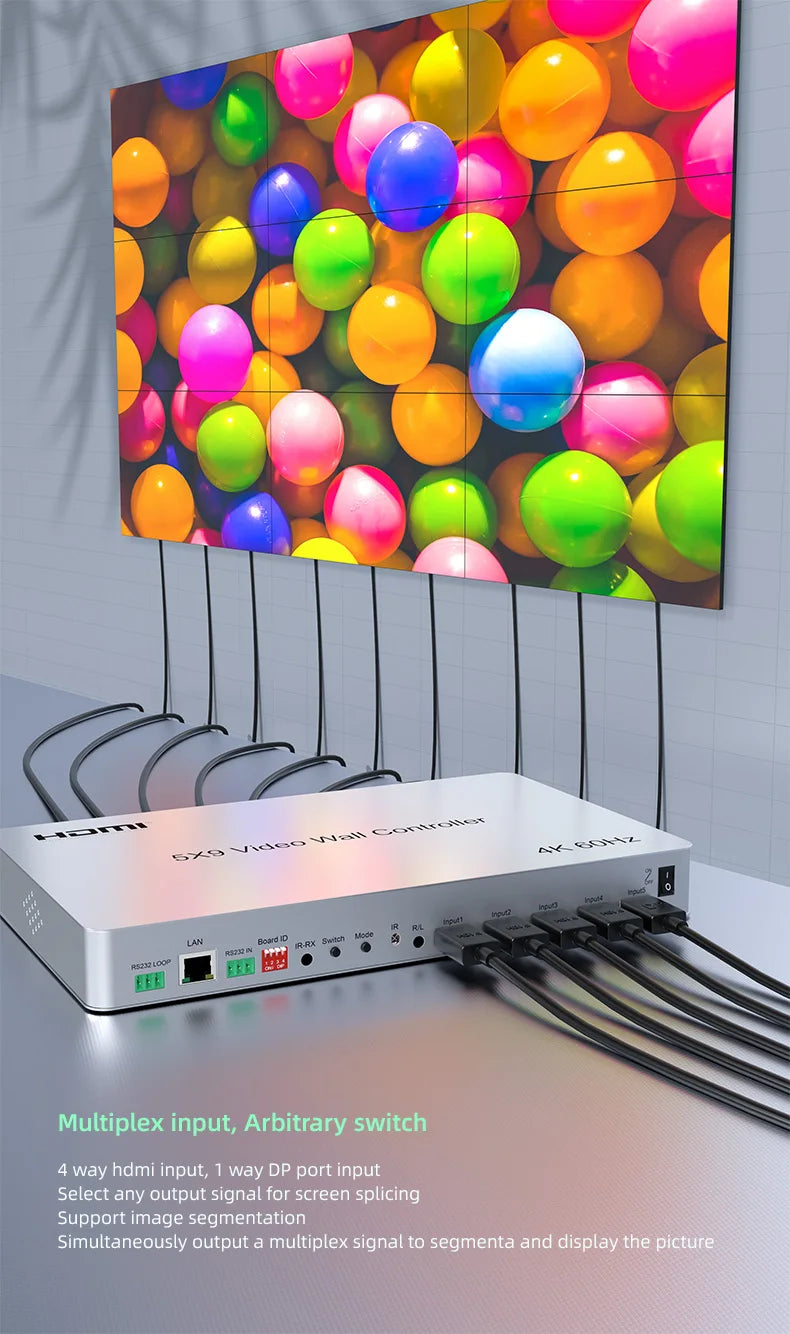

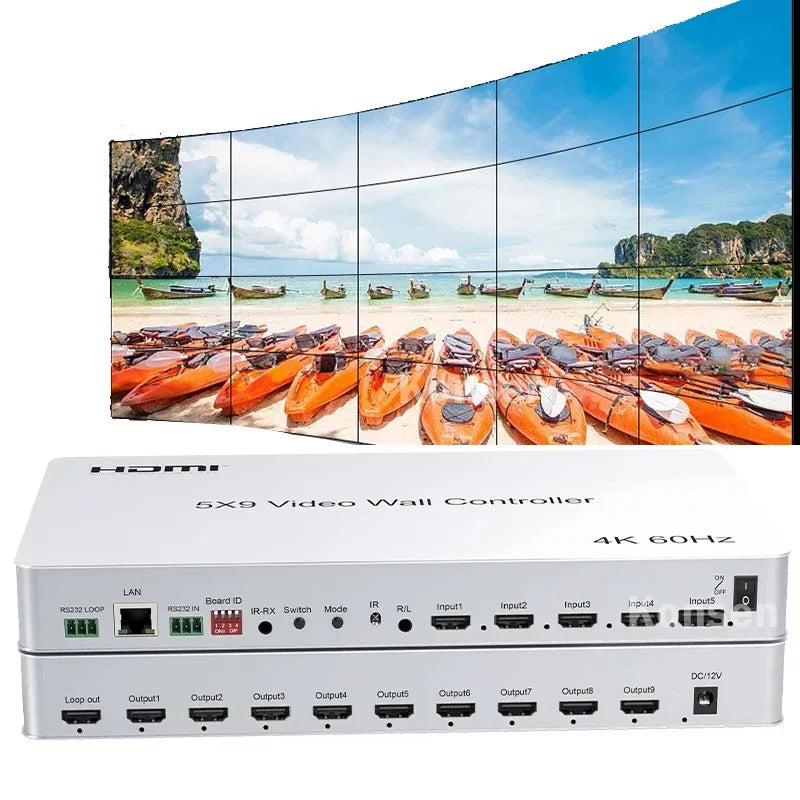

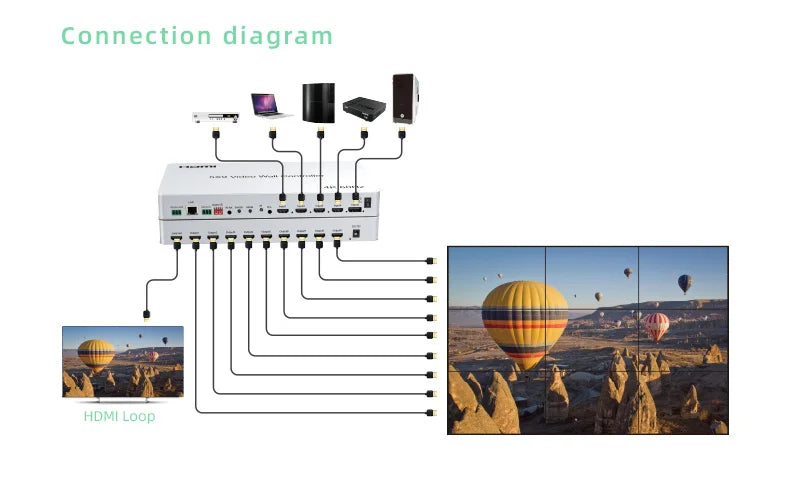

This 5x9 video wall controller support 4 way hdmi input and 1way DP input,10 way hdmi output,(9 way splicing
with 1 way local bypass); the main function is to divide a complete hdmi HD image signal into 9 pieces and then
be assigned to 9 video display units ((such as Rear projection unit, LCD TV, etc). Completed with 9 HDMI
high-definition video display units to form a large dynamic image screen.
At the same time, the 4-way hdmi HD signal can be displayed on the screen, and has a variety of video
segmentation effects.
It is mainly used in ultra-high definition video surveillance, large screen wall, store
advertising screen, exhibition screen and other industry applications

Features:

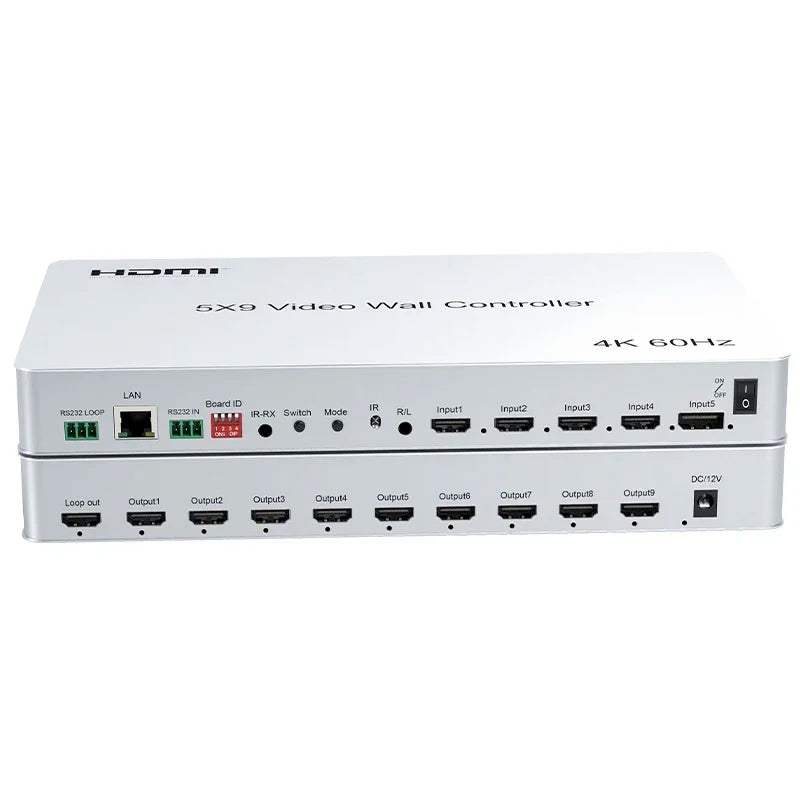

* Supports 4 way hdmi input (1 way 4k@60hz, 3 way 4k@30hz), 1 way dp input (4k@60hz),
and 9 way hdmi output (1080p@60hz),1 way hdmi bypass (image is consistent with the splicing image),
one 3.5mm headphones stereo output.

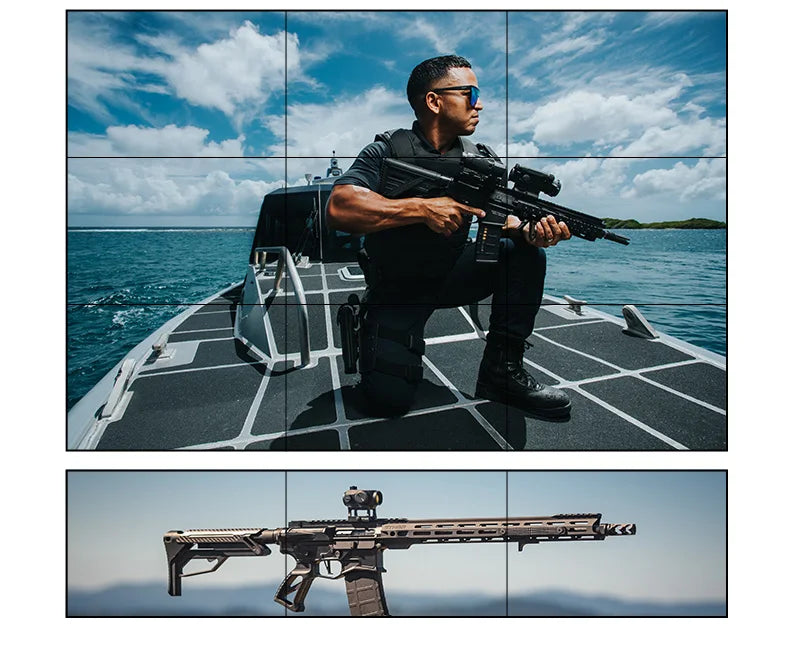

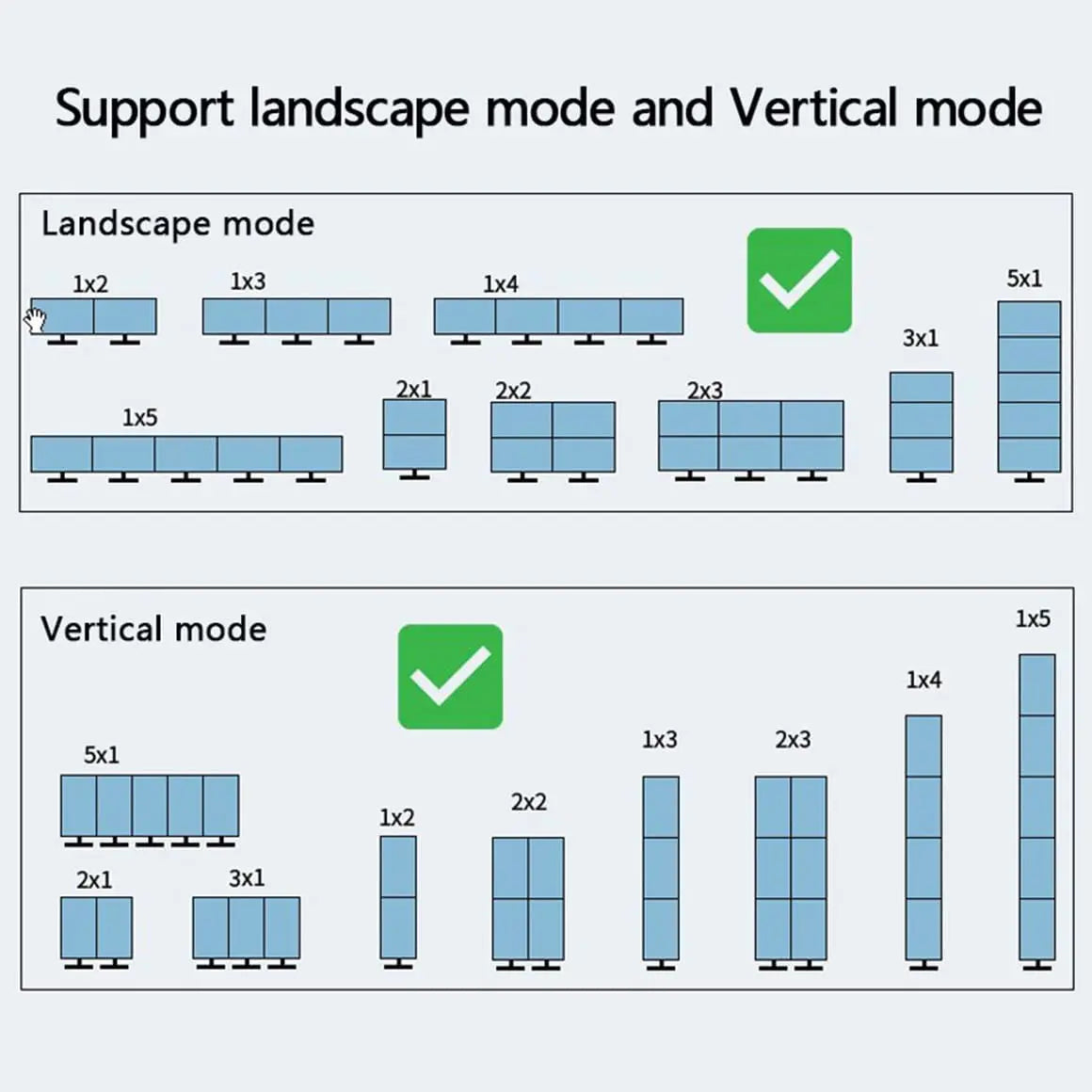

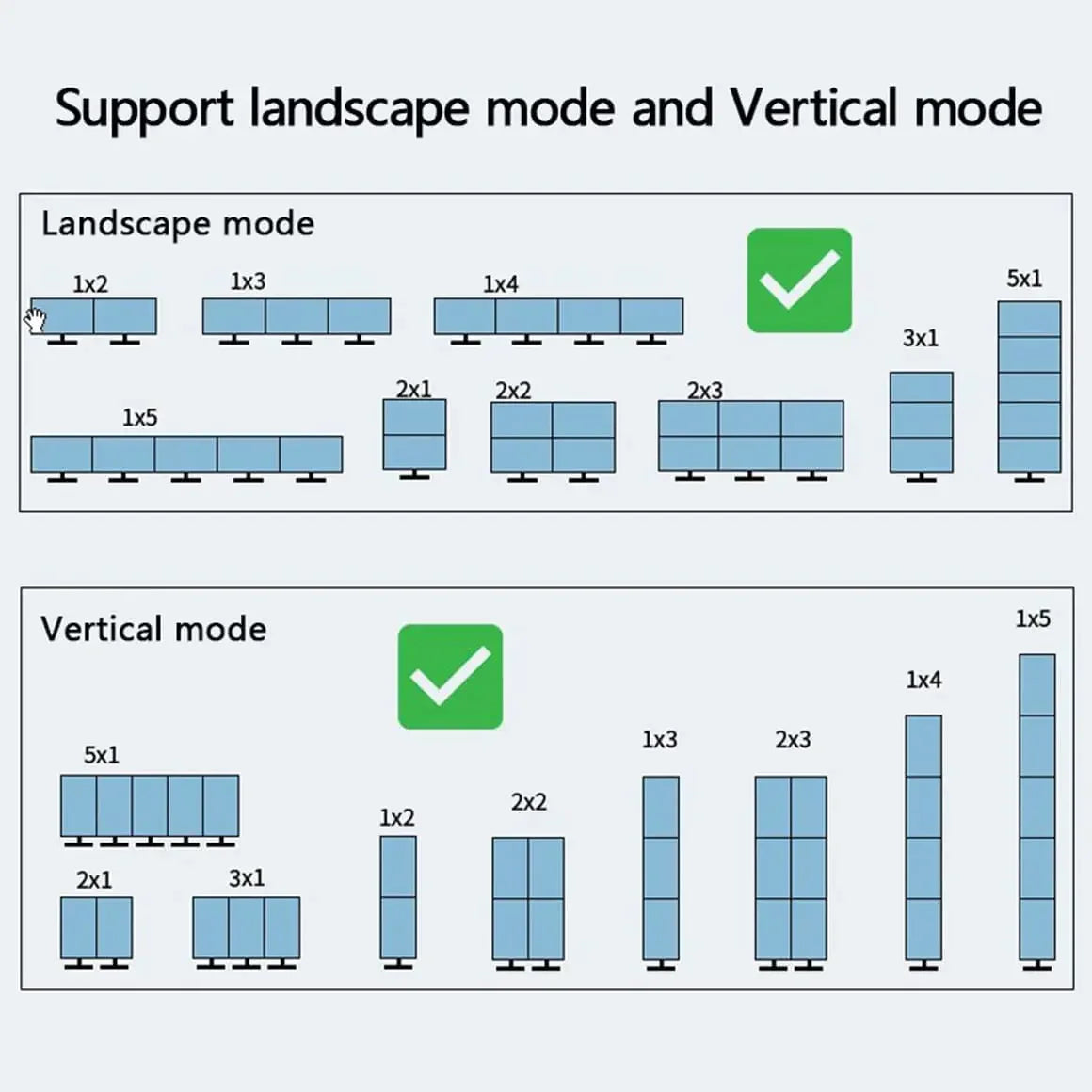

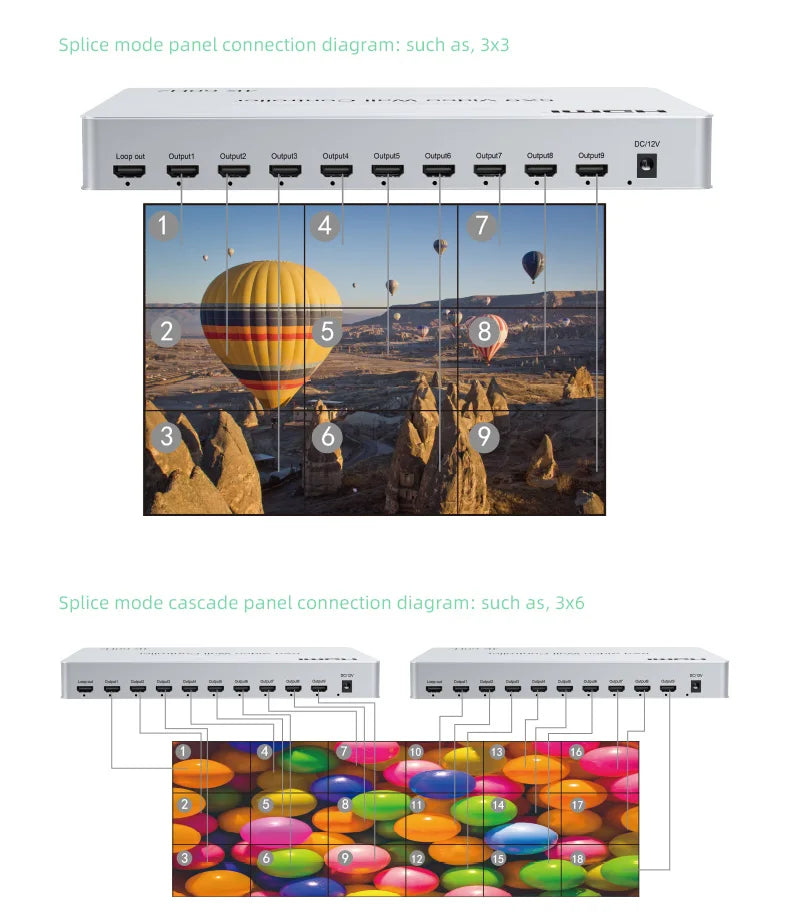

* Single device, 5 in 9 out (1x1~4x4 compatible),various splicing modes: horizontal /

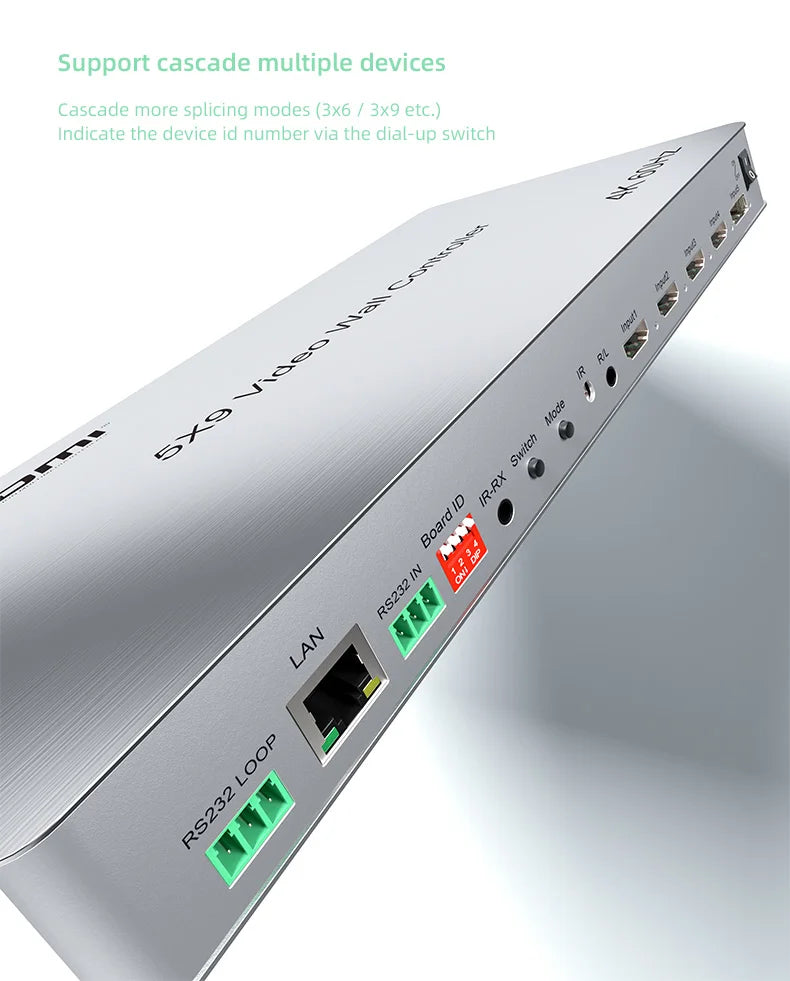

vertical / 2x2,and support the large-scale cascade connection and parallel use with loopout port.

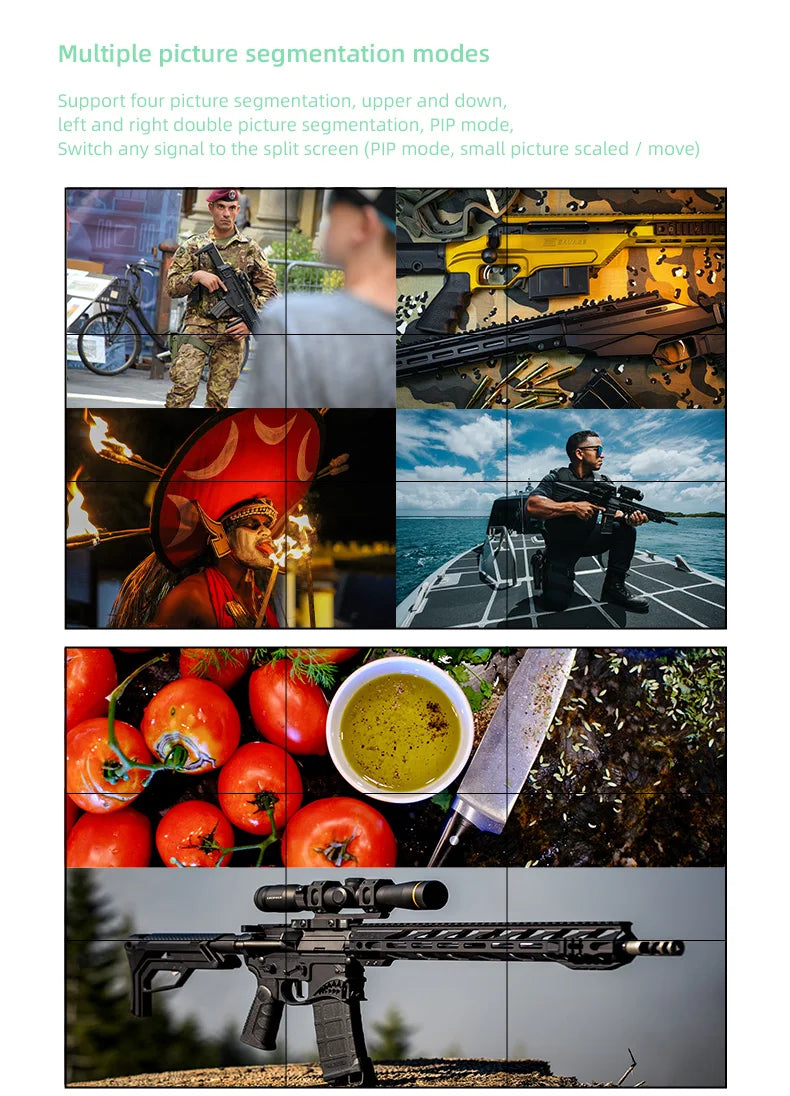

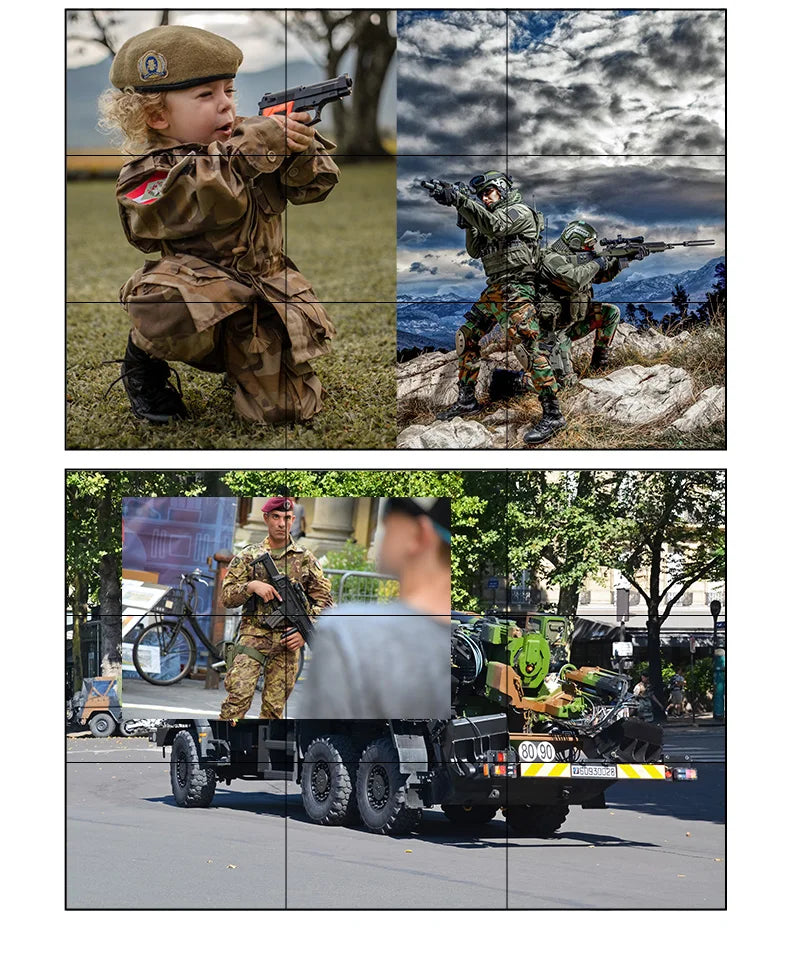

* Maximum full screen 4 segmentation, support a variety of segmentation modes(Single
picture, double picture with picture in picture, four picture segmentation),any input source
channels can be allocated to the split screen.

* Input resolution up to 3840x2160@60Hz,downward compatible,one output resolution,
the output resolution support up to 1920x1080@60hz(Output supports custom standard resolution).

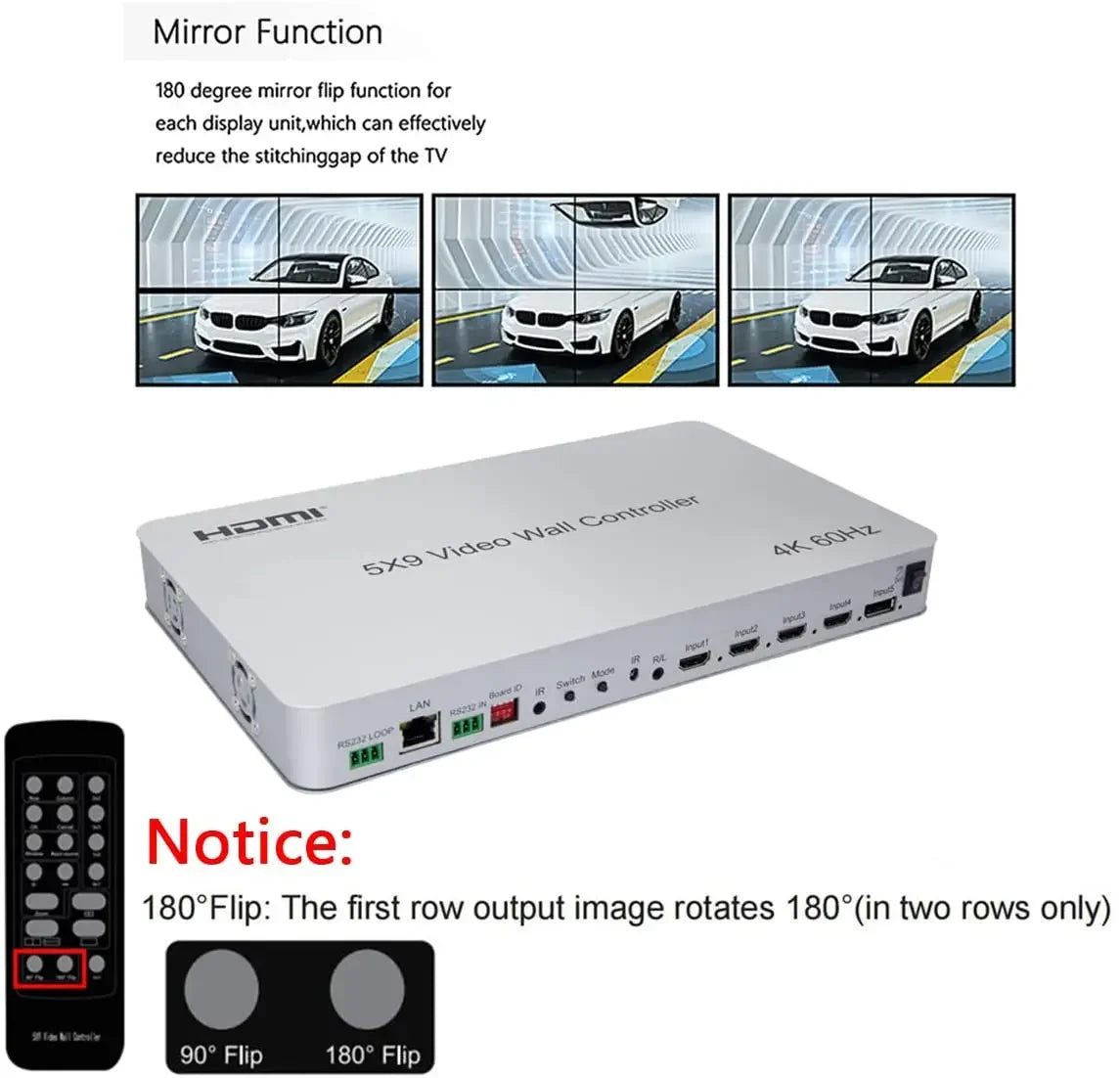

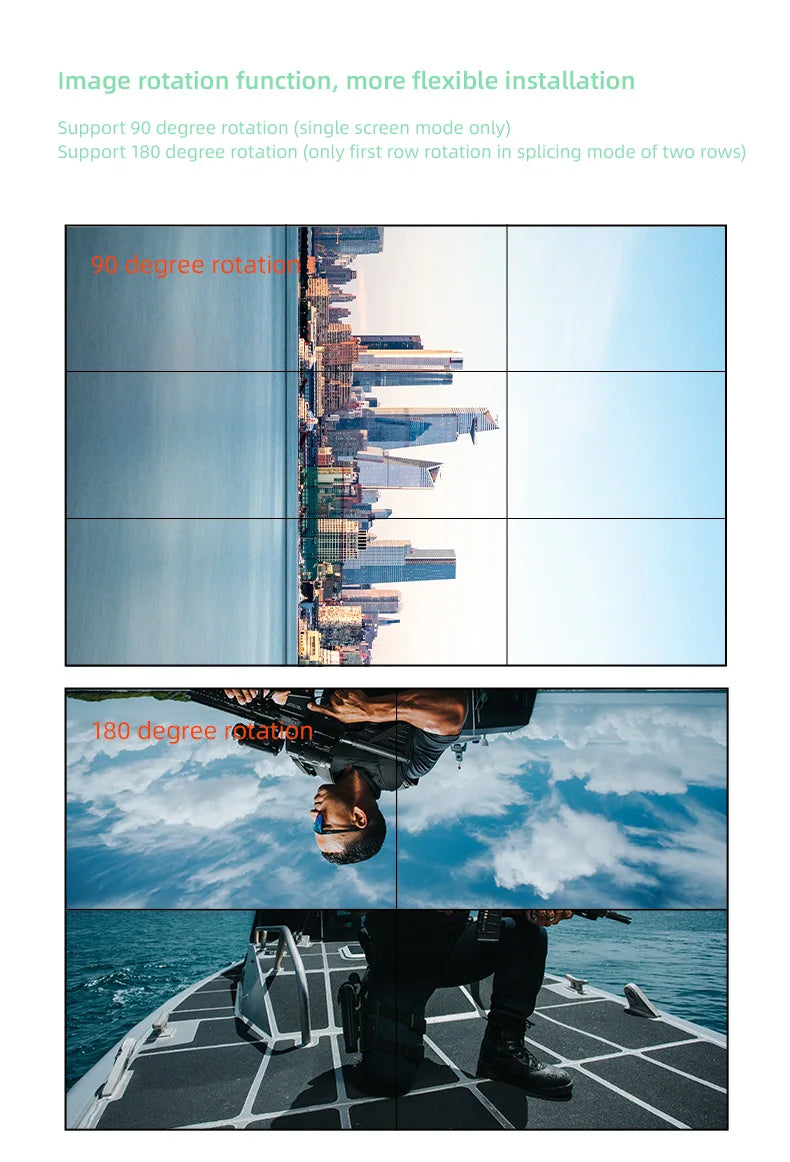

*Input supports full-screen 90°rotation (only for single-screen mode ),the output


supports the first row of 180 ° rotation(Support only in splicing mode when two rows)
*No stretching, no deformation, even if 1x6/1x7/1x8/1x9 no deformation, the output is 1080p full hd clear.

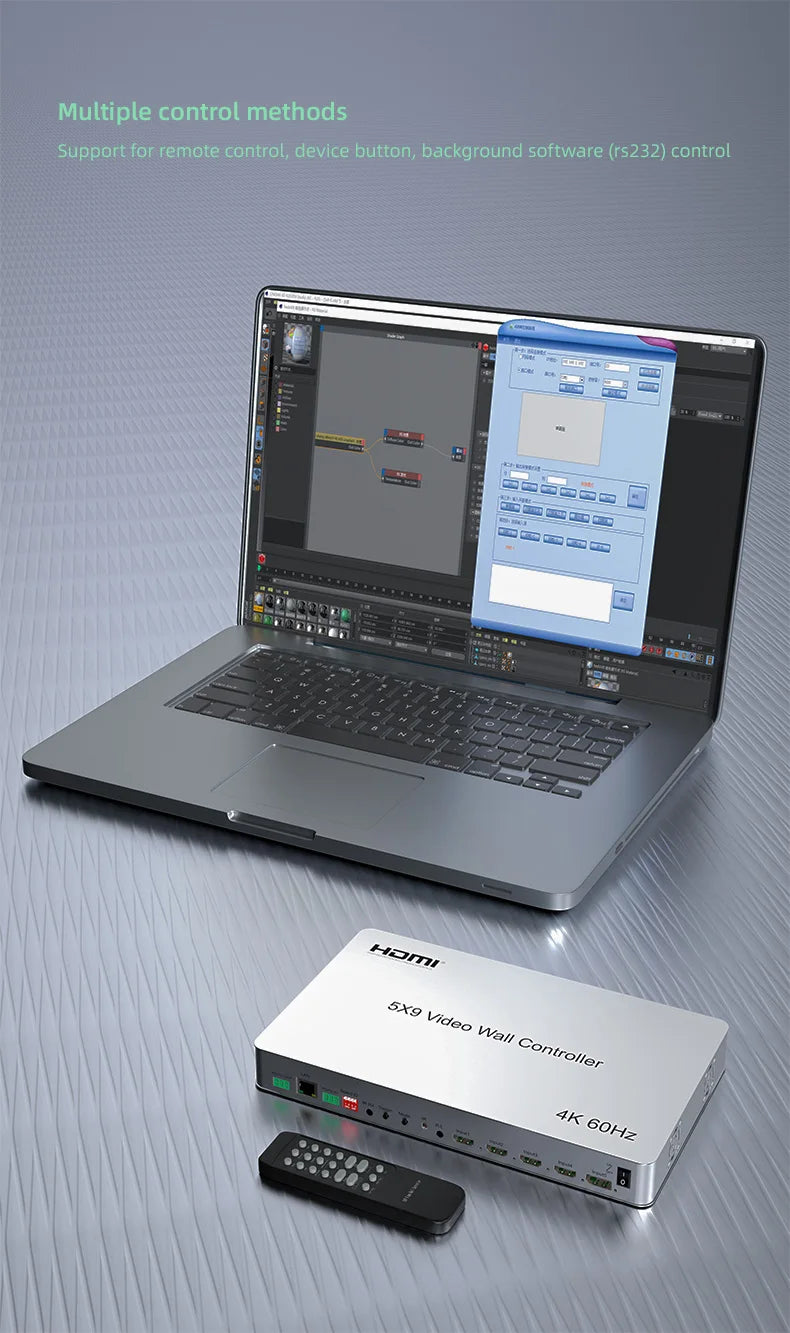

* Support for remote control, button, RS232 control.

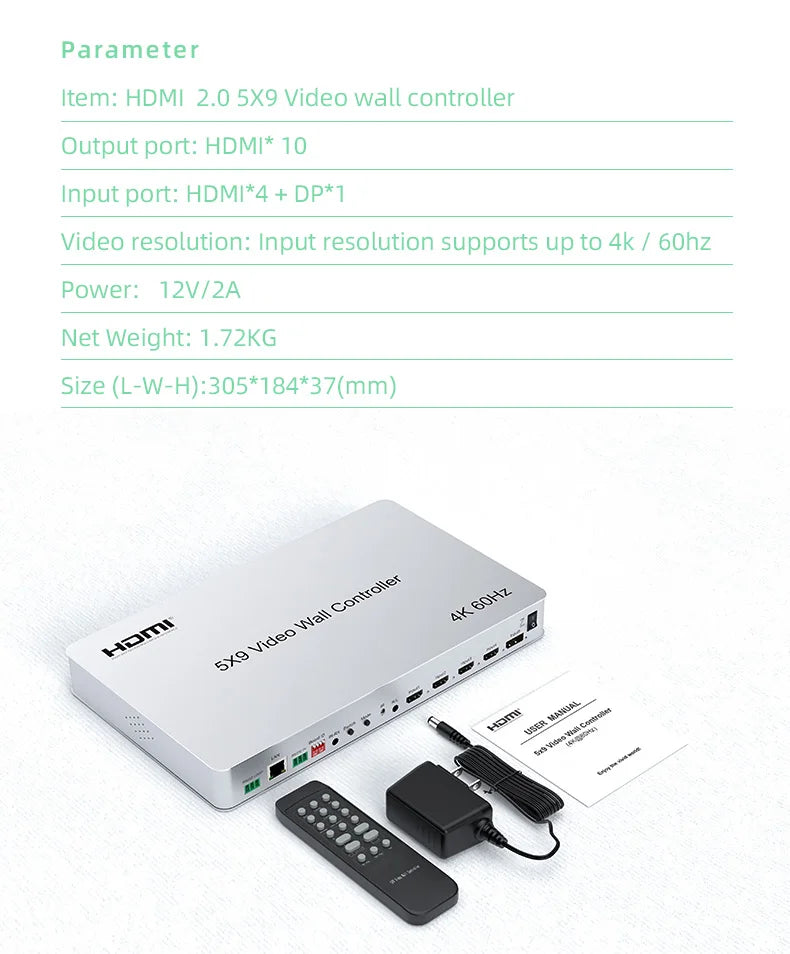

Input cable length .......................................................... ≤5m AWG26 HDMI standard cable
Output cable length ................................................ ≤5M,AWG26 HDMI standard cable
Max working current ............................................................................................. 1 A
Power adapter specifications ......... input AC (50HZ, 60HZ) 100V-240V Output 12V DC/2A
Operating Temperature range ........................................................... (-10℃～ +45℃)
Dimension (L x W x H) ..............................................................approx. 305x184x37(mm)
Weight .......................................................................................................approx. 1720g

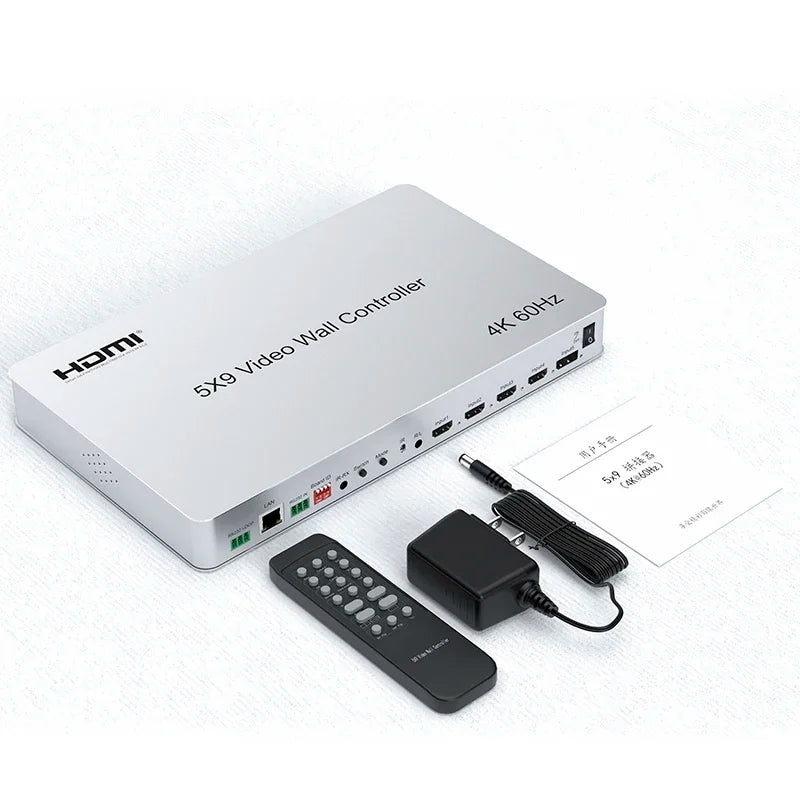

Package Content:
1PCS 5X9 Video Wall Controller
1PCS Remote controller without battery
1PCS DC 12V Power Adapter
1PCS User Guide
