SPECIFICATIONS

Brand Name: NoEnName_Null

Origin: Mainland China

DIY Supplies: ELECTRICAL

Certification: CE

Application: Indoor, Outdoor

Type: LED

Color: FULL COLOR

Panel Size: 500*500mm

Place of Origin: Henan, China

Model Number: RX390

Brand Name: Canbest

Function: SDK

Specification: Video Wall

Brightness(nits): 4500

Cabinet Density (Dots/sqm): 112896

Module Size(W*L/mm ): 250x250

Cabinet Size (L*W*H/mm): 500x500x87

Cabinet Resolution(Dots): 128x128

Cabinet Material: Die Cast Aluminum

Refresh Rate (Hz): 3840

Driving Method: 1/16

Pixel Pitch: 3.91mm

If you have any questions, please contact us ,WhatsApp:+86 15580043427,Email:2589659452@qq.com



Warranty

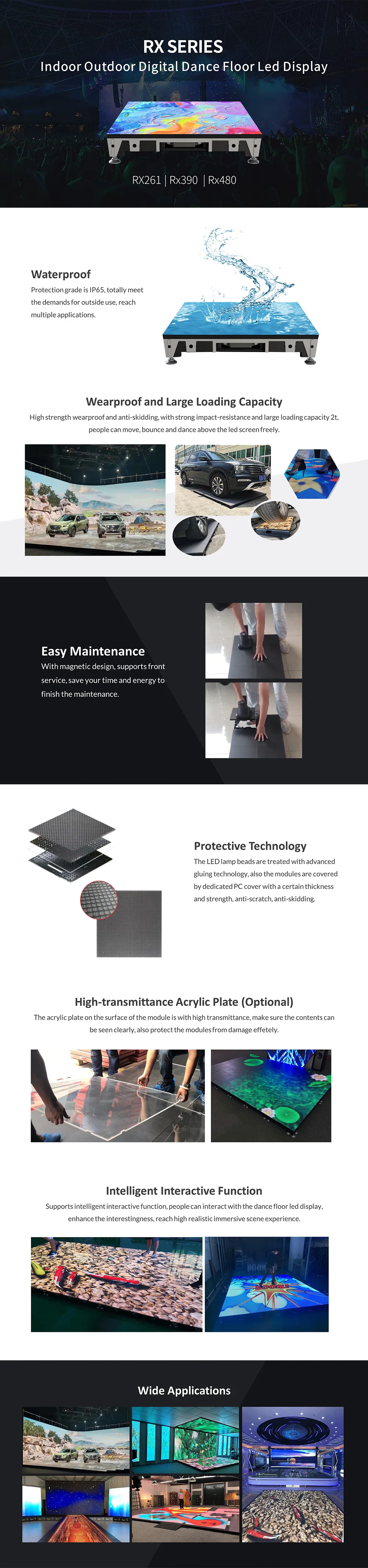

Product Description





Does external interactive system comes pre loaded with games?

There are around 150 games inside of it. The games comes with music, so synchronic interactive.



Technical Parameter

Usage	indoor	outdoor	outdoor
Pixel Pitch	2.6 mm	3.9 mm	4.8 mm
LED Type	SMD1515	SMD1921	SMD2525
Physical Density	147,456 dot/m²	65,536 dot/m²	43,222 dot/m²
Panel Size (W×H×D)	500x500x87 mm	500x500x87 mm	500x500x87 mm
Panel Material	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum
Panel Weight	7.5 kg	7.5 kg	7.5 kg
Panel Flatness	≤0.10 mm	≤0.10 mm	≤0.10 mm
Color Depth	16 Bit	16 Bit	16 Bit
Brightness	≥1000 cd/㎡	≥4000 cd/㎡	≥4000 cd/㎡
Viewing Angle	≥140° (H) / 140° (V)	≥140° (H) / 120° (V)	≥140° (H) / 120° (V)
Scanning Mode	1/32	1/16	1/13
Refresh Rate	≥3840Hz	≥3840Hz	≥3840Hz
Input Voltage AC	110~220V	110~220V	110~220V
Max. Power Consumption	≤500 w/㎡	≤800 w/㎡	≤800 w/㎡
Ave. Power Consumption	≤160 w/㎡	≤268 w/㎡	≤268 w/㎡
Working Temperature	-10℃～+40℃	-10℃～+40℃	-10℃～+40℃
Working Humidity	10%～90%RH	10%～90%RH	10%～90%RH

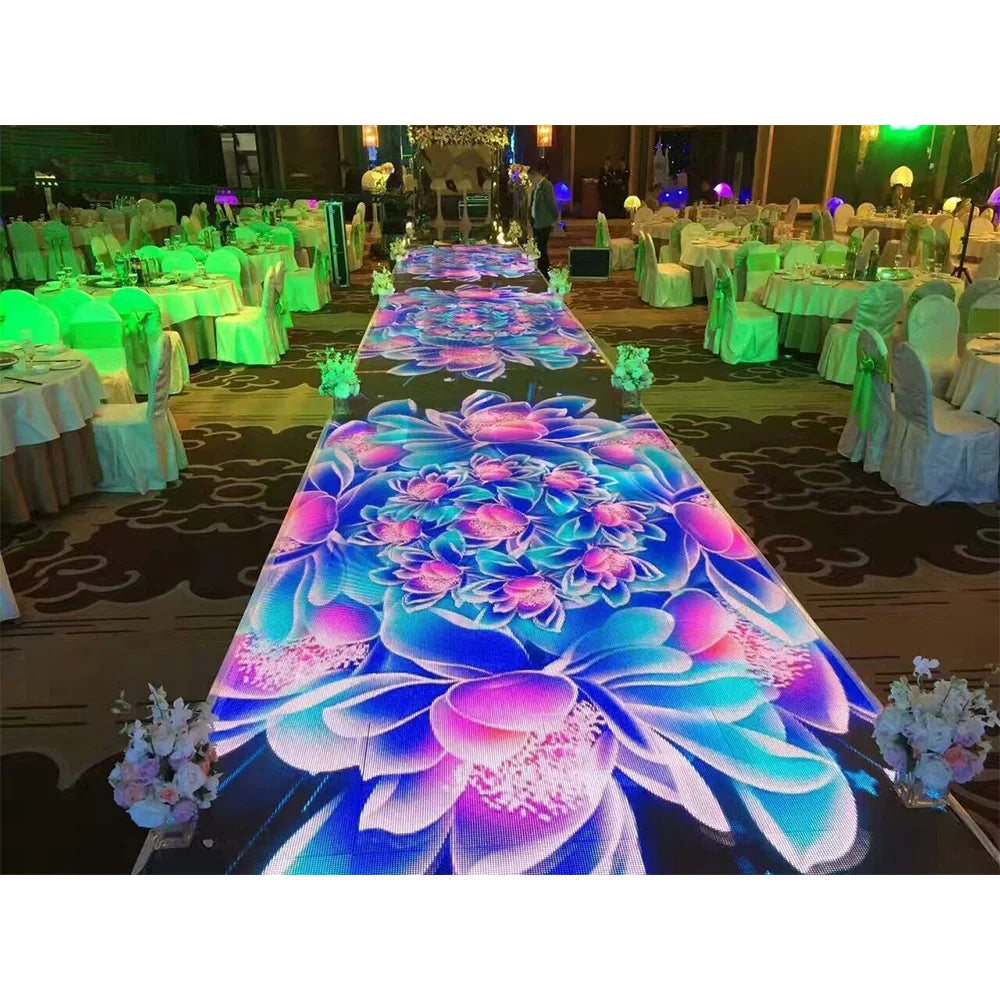

Configurations of Dance Floor LED Screen
Supporting Legs	√	√	√
Loading Capacity	2 t/㎡	2 t/㎡	2 t/㎡
Dedicated PC Cover	√	√	√
High-transparency Acrylic Plate	√	optional	optional
Protection Grade	IP40	IP65	IP65
Lifespan	≥100,000 hrs	≥100,000 hrs	≥100,000 hrs
Maintenance Type	Front and Rear	Front and Rear	Front and Rear

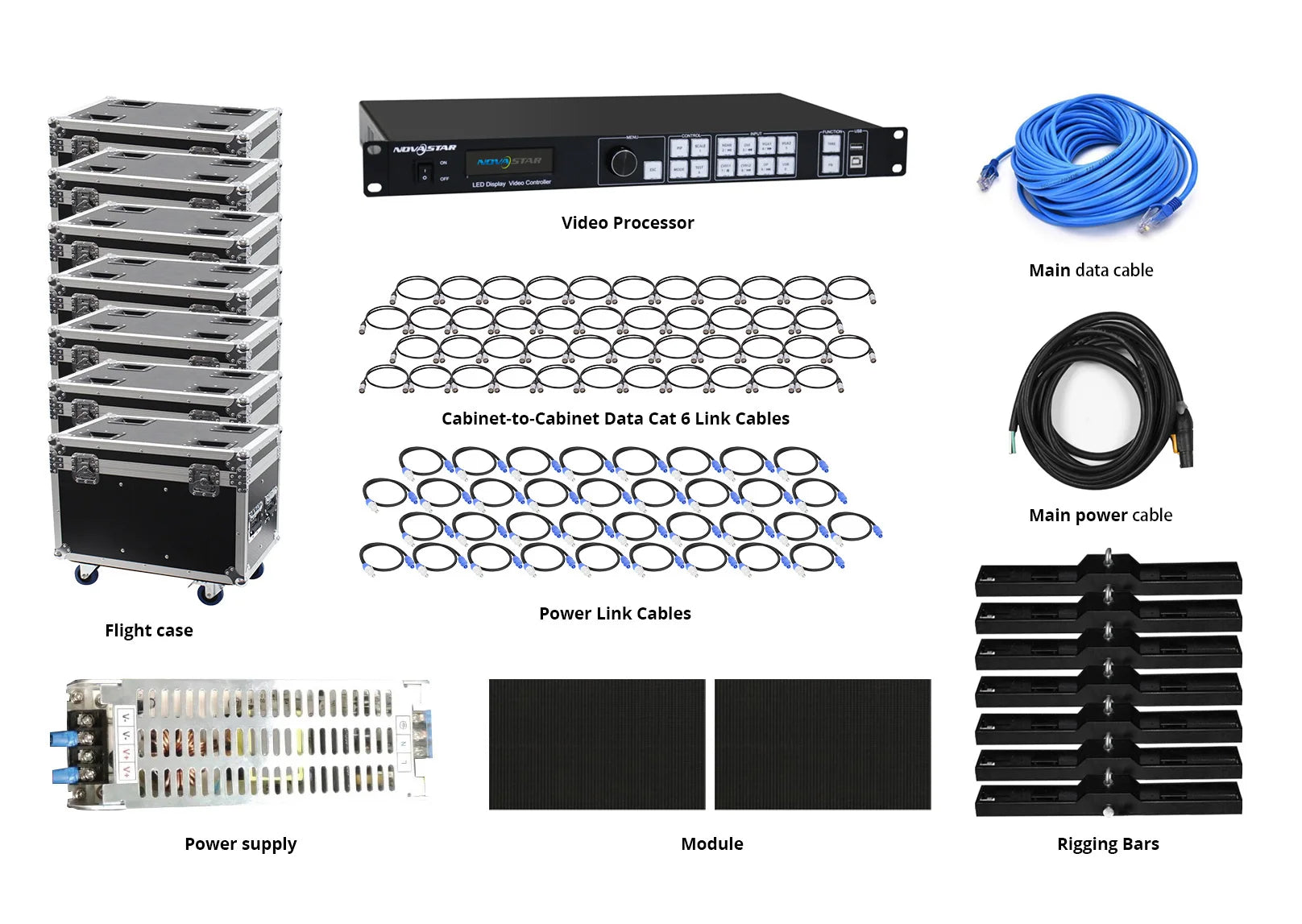

Configurations of Control System
Sync. Control System	√	√	√
Radar System	√	√	√
Control Software	√	√	√

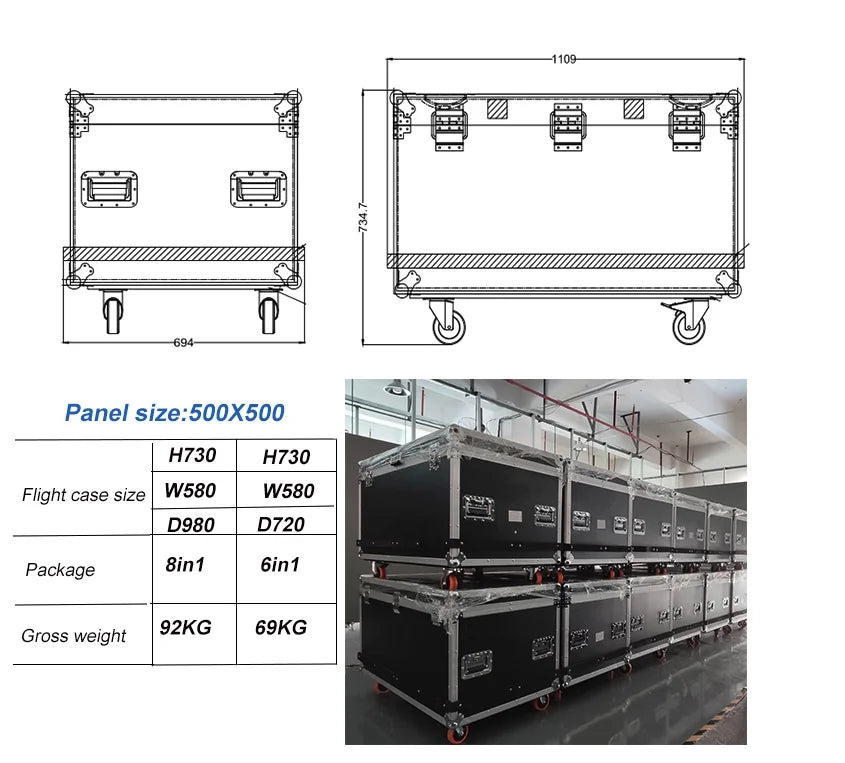

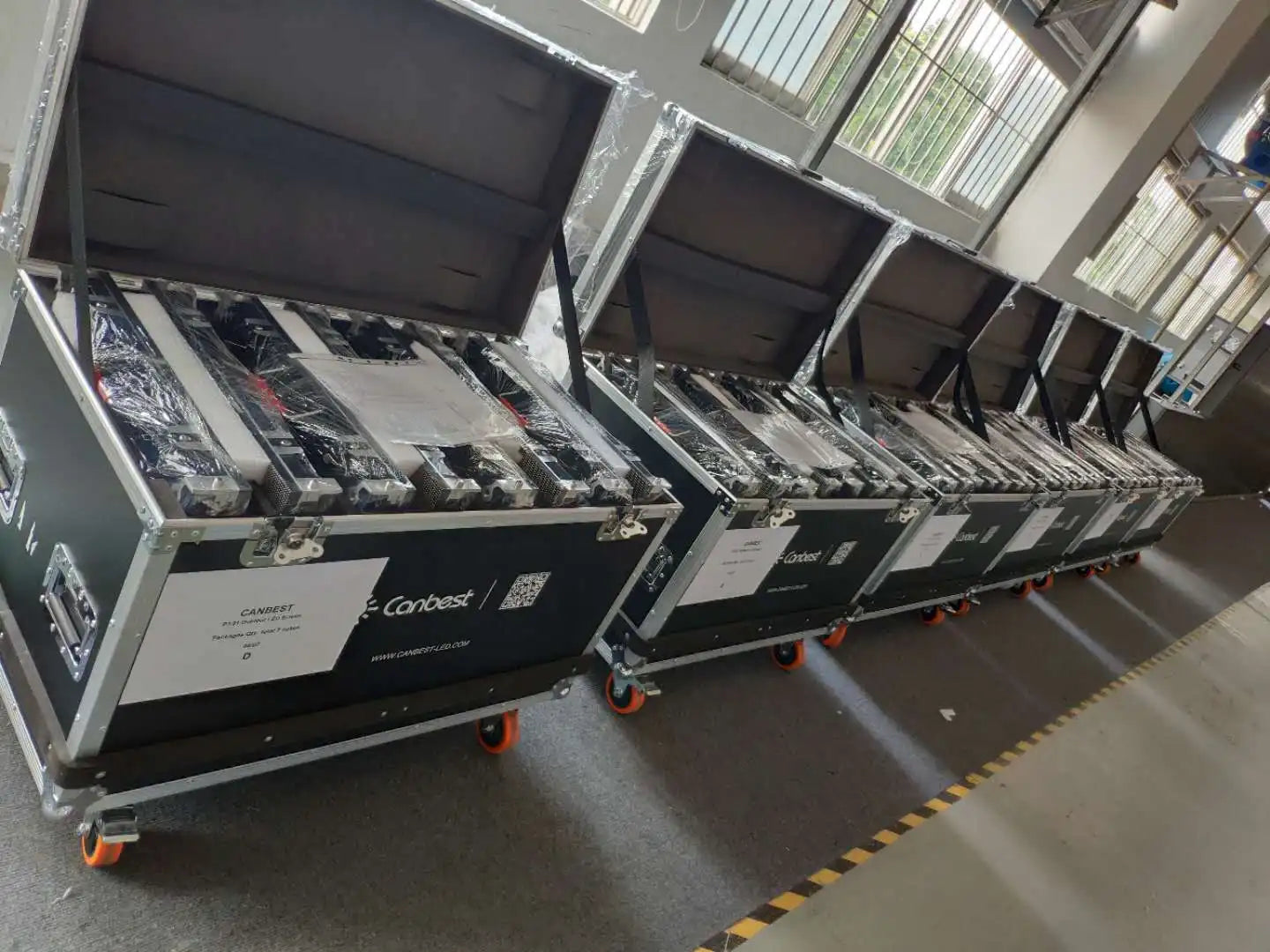

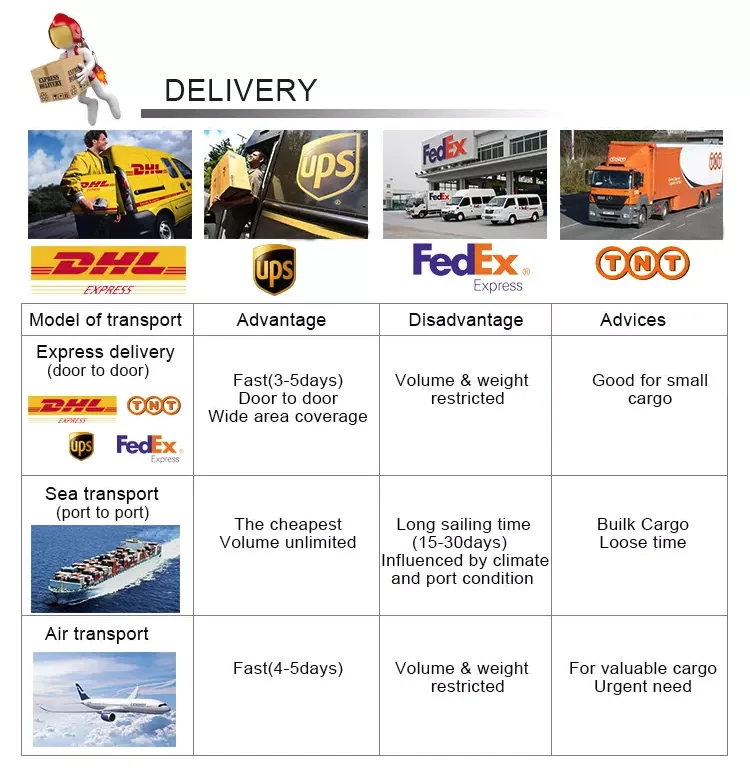

Packing & Delivery
