Immersive Games Laser Touch Virtual Screen With Interactive Projection System Multi Kids Playing Amusement Park 22 Wall Games
Immersive Games Laser Touch Virtual Screen With Interactive Projection System Multi Kids Playing Amusement Park 22 Wall Games
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: owayedu
Origin: Mainland China
Surface Pattern: other
Folded: No
Type: whiteboard
Whiteboard Type: Interactive Whiteboard
Model Number: FT8
Certificate: CE ROHS FCC
OS: Windows xp/vista/8/10/11
Aspect Ratio: 4:3/16:9/16:10
Multi-touch: 100 points
os required:Windows xp/vista/8/10/11
Equirment needed: Computer+ projector or computer +TV
FT8 is a finger touch interactive device, it can work with any projector or TV and Windows XP/VISTA/7/8/10/11.
For the games part: it allows 100 kids to play the games on any flat surface,like TV, Wall, floor with finger, throwing ball, laser gun,shooting gun,soccor,basketball etc.
And the biggest screen can reach to 6*8m, we also can do an extended screen if you'd like.
The advantage of Oway interactive device is high precision( less than 2mm) and quick response( less than 6ms).We built 57 games in FT8
How to install and callibrate the deivce:
Connect the sensor with computer, connect the projector or TV with computer, then go to Auto callibration,very easy and quick, and you do not need to do callibration again if you do not move the projector or sensor in future.
Device FT8 with 57 games built in:
Games included:
Real Playing scene:
Calibration |
Automatic(5 seconds) / Manual (4/15 points) |
|
Multi-touch |
100 points touch,writing and erasing can be performed simultaneously |
|
Latency |
<6 ms |
|
Filter |
Software auto-control、Enhance stability |
|
Min Active Size |
30 inches |
|
Max Active Size |
Pen touch:220inches Finger touch:150inches Throwball game:400inches(no sunshine room) |
|
Technology |
Laser image calibration technology |
|
Positional Accuracy |
±1 pixel (resolution: 4096*4096) |
|
Aspect Ratio |
4:3/16:9/16:10 |
|
Projector Ratio |
Ultra short throw:0.28/0.16 |
Installation distance:about 0.4 - 1m |
Short throw（Middle throw）:0.83 /0.57/0.38 |
Installation distance:about 1 - 3m |
|
Long throw:1.28 |
Installation distance:about 3 - 5m |
|
Power |
5 W |
|
Power of Laser Emitter |
280mW*2 |
|
Laser Emitter Power Requirements |
3.3V/2A |
|
Infrared Coverage Area |
6*8 m |
|
Signal Refresh Rate |
60/180fps |
|
Connect |
The sensor and computer are connected by USB cable, laser emitter just need power |
|
Laser Emitter Weight |
146 g |
|
Sensor Weight |
67 g |
|
OS Requirement |
Windows xp/vista/7/8/10/11 |
|
Software |
OwayIWB、Multi-Board |
|
Certification |
CE、FCC、RoHS |
|
Warranty |
Sensor(3 years)、Laser emitter(1 year)、IR pen(1 year) |
|
Package |

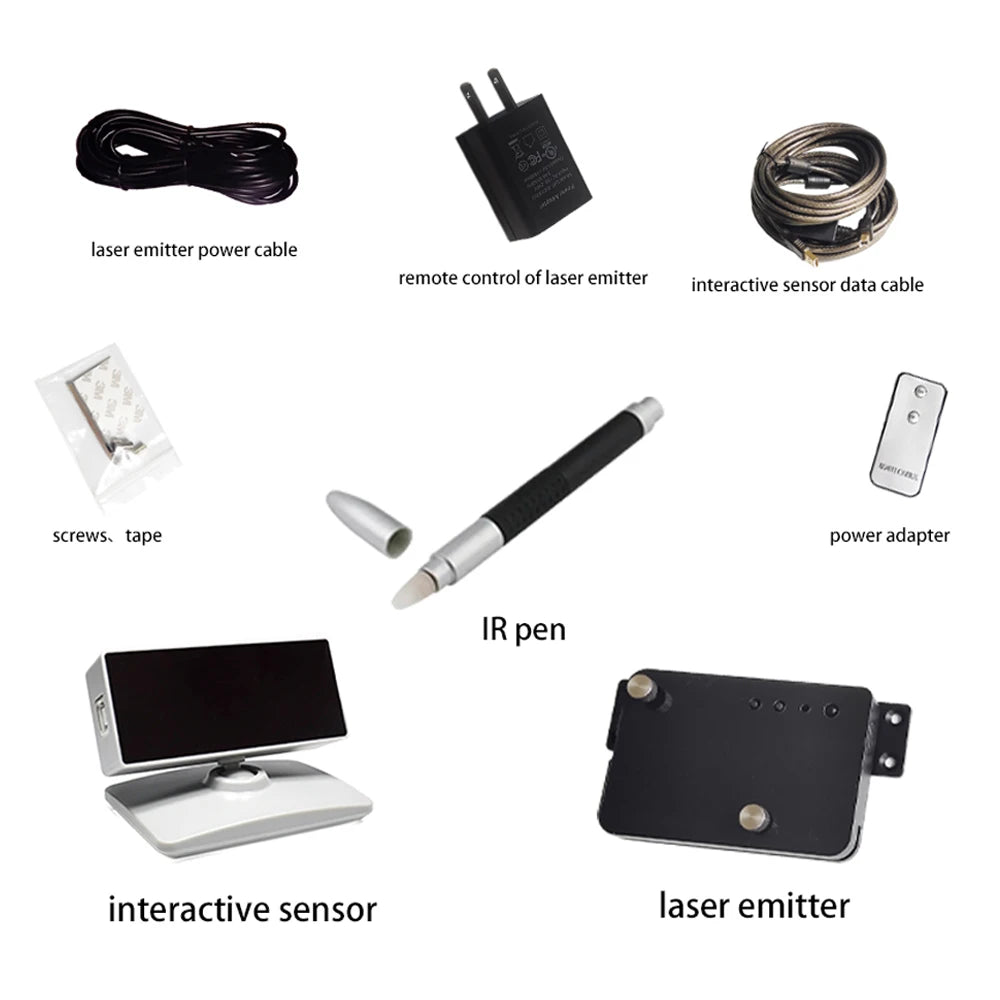

1.Sensor、2.Emitter、3.IR pen、4.USB cable(10m)、 5.Remote、6.Power adaptor、7.CD with software |
|
